No longer manufactured
Unfortunately, this series is no longer available.
Please contact us using the button below and our sales team will be able to provide the most suitable alternative.

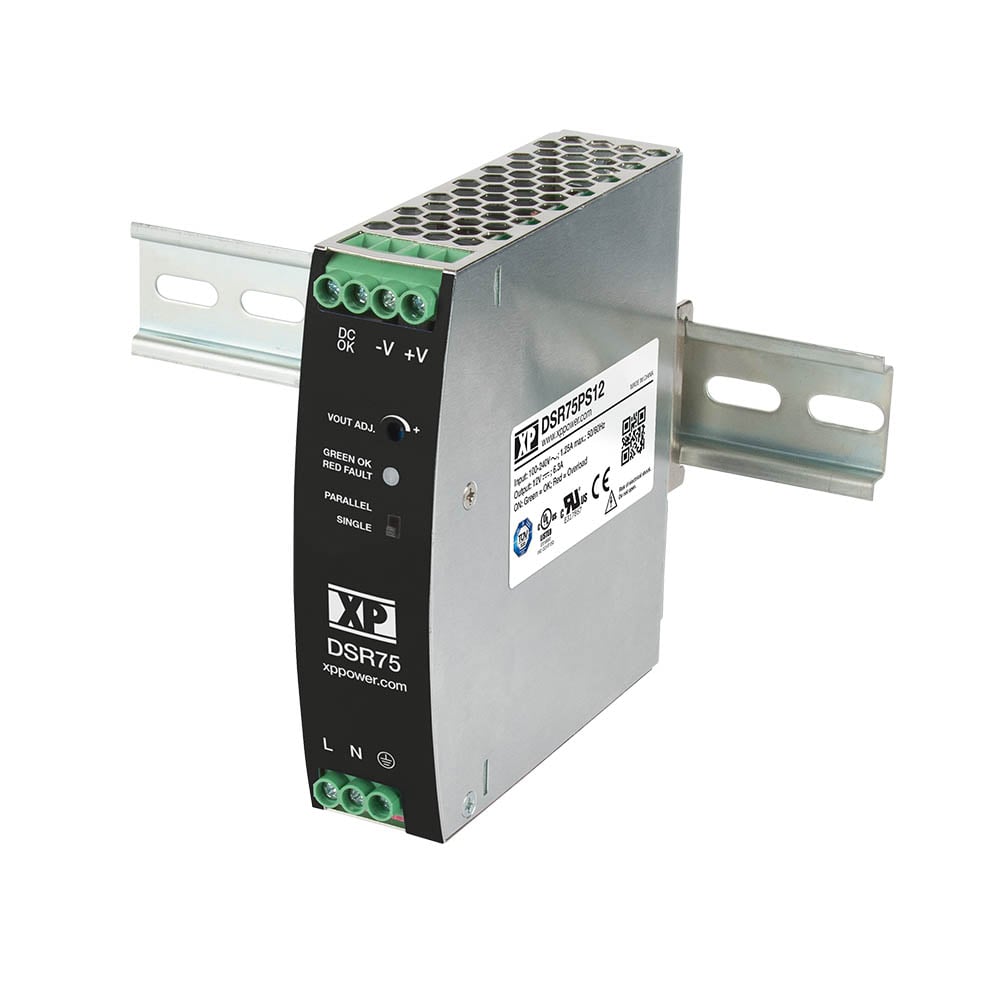

DSR75 Series

75W slimline DIN rail AC-DC power supplies for ICE & ITE applications

The DSR75 series of AC-DC DIN rail power supplies approved for industrial control systems (ICE) and information technology equipment (ITE) applications. These versatile supplies provide reliable power with a 150% peak load capability in a slimline DIN rail mount metal case. Competitively priced, the DSR75’s ultra slim, space saving design features a width of just 32mm.

For use in industrial and building control applications, specific deployment areas include machine control, process control, factory automation, escalator / travelator / elevator / lift control, building heating/aircon monitoring, control and security systems. Technological advancements in these areas require greater automation and control, whilst minimising control system size without compromising reliability. XP Power’s DSR power supplies are perfectly suited to address these needs.



  • Ultra slim design - 32mm
  • 150% peak load for 3 seconds
  • 85 to 264VAC operation
  • High efficiency - up to 92%
  • Volt-free contact for DC OK
  • Selectable parallel operation
  • Ambient operation from -25°C to +70°C
  • Full load at 60°C (24V/48V)
  • 3 year warranty
Image Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
DSR75PS12 75W Single Phase 12V 6.3A Datasheet Stock RFQ
DSR75PS24 75W Single Phase 24V 4.8A Datasheet Stock RFQ
DSR75PS48 75W Single Phase 48V 2.4A Datasheet Stock RFQ
No resources yet.
