AC-DC Power Supplies
AHE220 Series

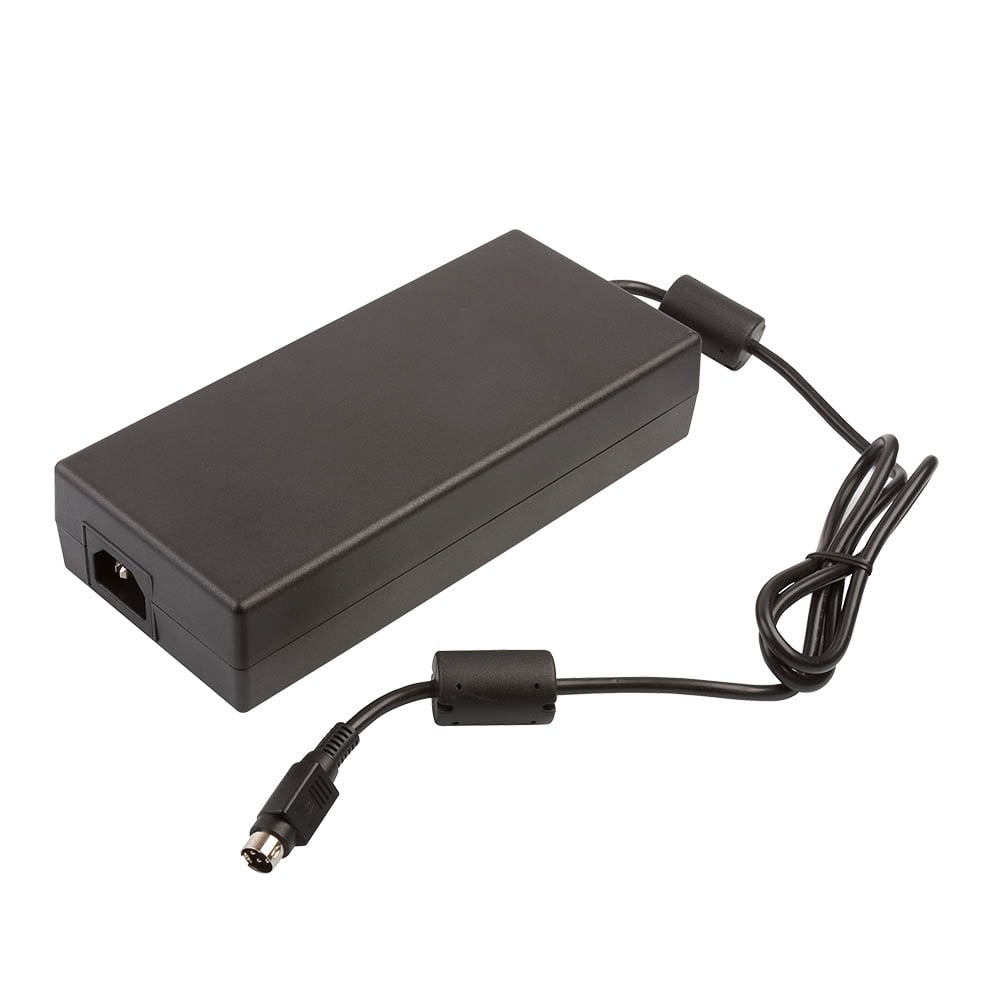

220W desktop power supplies with EN/IEC62368-1 ITE approvals
Offering 220W with Energy Efficiency Level VI and CoC Tier 2 the AHE220 desktop/external AC-DC power supplies are designed for ITE & industrial electronics applications. With class B conducted & radiated emissions and class I construction they are fitted with an IEC320-C14 inlet and have a voltage input range of 90 to 264VAC. Suitable UK, US and European mains cables are available to order separately.
datasheet Contact us
Features
- Energy Efficiency Level VI
- <0.21W Standby Power
- 0°C to 60°C Operation
- High Power Density
- Low Earth Leakage Current
- ITE Safety Approvals
- 3 Year Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
AHE220PS12 | 220 W | Single Phase | 12V | 15A |
|
|
|
|
|
AHE220PS19 | 220 W | Single Phase | 19V | 11.57A |
|
|
|
|
|
AHE220PS24 | 220 W | Single Phase | 24V | 9.16A |
|
|
|
Specifications
Dimensions
AHE220: 7.76 x 3.46 x 1.73‚ (197.0 x 88.0 x 44 mm)
Input Voltage
90-264 VAC
No Load Input Power
0.21 W
Harmonic Currents
EN61000-3-2 Class A
Efficiency
91% see models and ratings table and curves
Operating Temperature
0 to +60 °C Derate from 100% load at 40 °C to 50% load at 60 °C
Isolation
Input to Output: 3000 VAC Input to Ground: 1500 VAC Output to Ground: Output return is connected to input earth
Worldwide Safety Approvals
IEC62368-1
European Safety Approvals
EN62368-1
US Safety Approvals
cUL60950-1
Other Safety Approvals
China Compulsory Certification, GB4943, AU/NZ 60950.1
EMC
EN55032 Level B Conducted & Radiated
