New products availableThis product is available for purchase, but there are newer products available that may better suit your needs.
Please contact us to discuss your requirements.

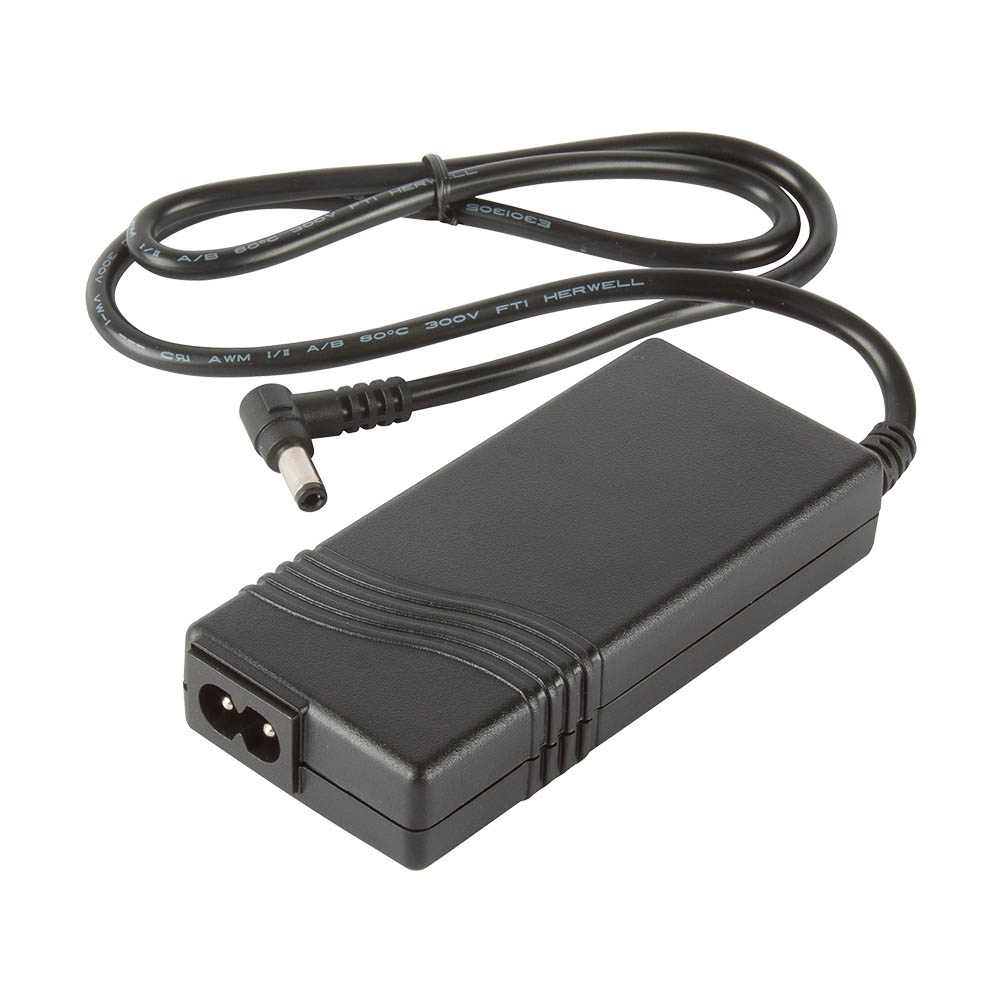

AC-DC Power Supplies
AEJ36 Series
- Energy Efficiency Level VI
- European CoC Tier 2
- <0.075 W Standby Power
- Single Outputs 5 to 48 V
- Class II
- -20 °C to 60 °C Operation
- Universal Input
- 3 Year Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
AEJ36US05 | 36 W | Single Phase | 5V | 4A |
|
|
|
|
|
AEJ36US09 | 36 W | Single Phase | 9V | 3A |
|
|
|
|
|
AEJ36US12 | 36 W | Single Phase | 12V | 2.5A |
|
|
|
|
|
AEJ36US15 | 36 W | Single Phase | 15V | 2.4A |
|
|
|
|
|
AEJ36US18 | 36 W | Single Phase | 18V | 2A |
|
|
|
|
|
AEJ36US24 | 36 W | Single Phase | 24V | 1.5A |
|
|
|
|
|
AEJ36US48 | 36 W | Single Phase | 48V | 0.75A |
|
|
|
Specifications
Dimensions
AEJ36: 4.37 x 2.01 x 0.78‚ (111.0 x 51.0 x 20.0 mm)
Input Voltage
90 to 264 VAC
No Load Input Power
0.075 W
Harmonic Currents
EN61000-3-2, Class A
Efficiency
88% (see datasheet)
Operating Temperature
-20 to +60 °C, derate from 100% load at 40 °C to 60% load at 60 °C
Isolation
Input to Output: 4242 VDC
Worldwide Safety Approvals
IEC60950-1:2005 Ed 2
European Safety Approvals
EN62368-1:2014/A11:2017
US Safety Approvals
UL 62368-1 & CAN/CSA C22.2 No. 62368-1-14
Other Safety Approvals
AU/NZ60950.1, CE & UKCA meets all applicable directives & legislation.
EMC
EN55032, Level B, Conducted & Radiated
