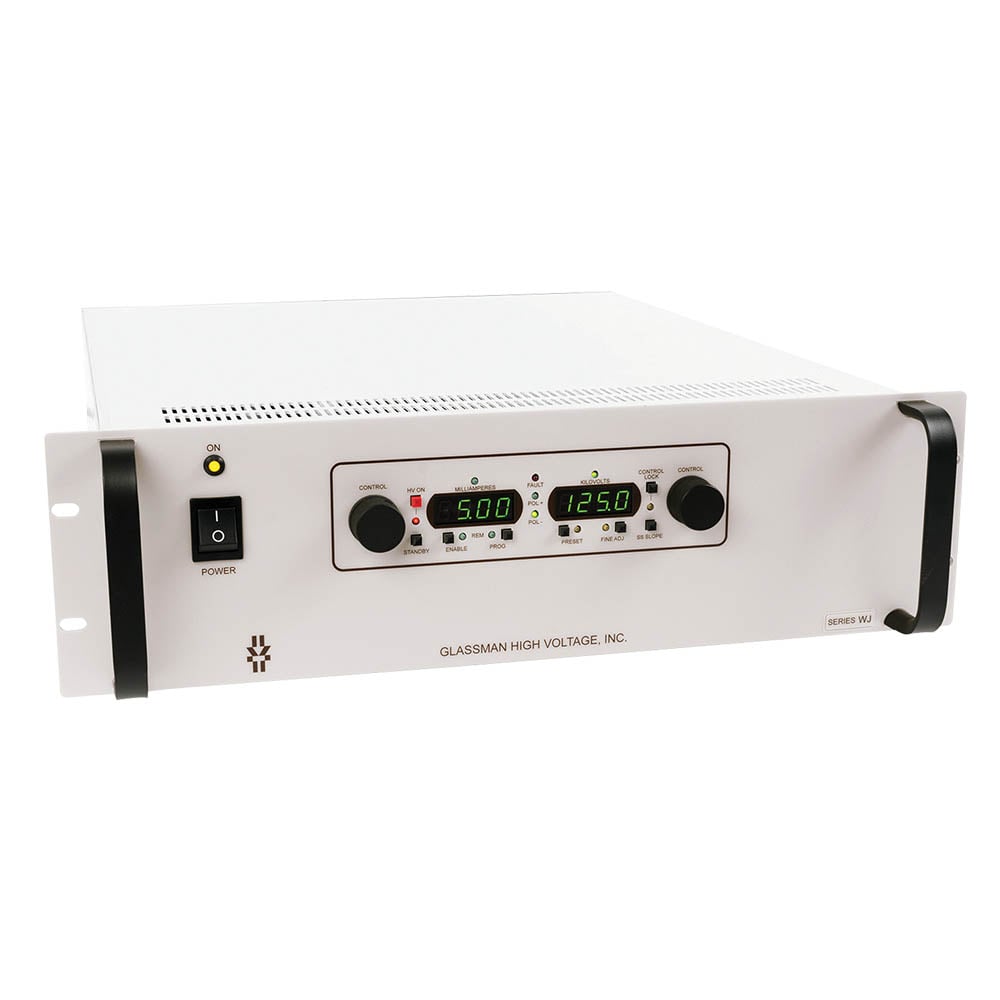

WJ Series

600W regulated high voltage AC-DC power supplies with outputs from 0 - 70kV to 0 - 125kV DC

The 600W WJ series is a high quality, high performance, high reliability & high stability high voltage power supply with low ripple & noise, being air insulated it facilitates a lower cost of ownership, as well as being lighter compared to competing products & though various output control options, input voltages, low output discharge currents makes integrating this power supply into a new system or tool simple.

It has been designed for electrical design engineers & system integration engineers in a wide range of industries including Ion implant, E-beam welding & E-beam additive manufacturing & many other application specific markets who are challenged with limited high voltage integration experience & tight timelines.

Features

  • Output voltages 0-70kVDC to 0-125kVDC
  • 3U 19" rack mount
  • RS232/USB control & monitor standard, Ethernet is optional
  • Output voltage & current regulated
  • Low ripple <0.03% RMS of rated voltage at full load
  • Voltage & current monitor outputs
  • Single phase AC input
  • Efficiency >85%
  • Air Insulated
  • Short circuit, arc & overload protection
  • CE marked for EMC, low voltage (LVD) & RoHS directives
  • Operating temperature: -20°C to +40°C
  • 1 year warranty
Image Model Name Power Output Voltage Input Voltage Package Size Datasheet RFQ
WJ070N8.6 600W 0 to -70kV Single Phase 3U Datasheet RFQ
WJ070P8.6 600W 0 to 70kV Single Phase 3U Datasheet RFQ
WJ070R8.6 600W 0 to 70kV Single Phase 3U Datasheet RFQ
WJ080N7.5 600W 0 to -80kV Single Phase 3U Datasheet RFQ
WJ080P7.5 600W 0 to 80kV Single Phase 3U Datasheet RFQ
WJ080R7.5 600W 0 to 80kV Single Phase 3U Datasheet RFQ
WJ100N6.0 600W 0 to -100kV Single Phase 3U Datasheet RFQ
WJ100P6.0 600W 0 to 100kV Single Phase 3U Datasheet RFQ
WJ100R6.0 600W 0 to 100kV Single Phase 3U Datasheet RFQ
WJ125N5.0 600W 0 to -125kV Single Phase 3U Datasheet RFQ
WJ125P5.0 600W 0 to 125kV Single Phase 3U Datasheet RFQ
WJ125R5.0 600W 0 to 125kV Single Phase 3U Datasheet RFQ
