DC-DC Converters
VR05 Series

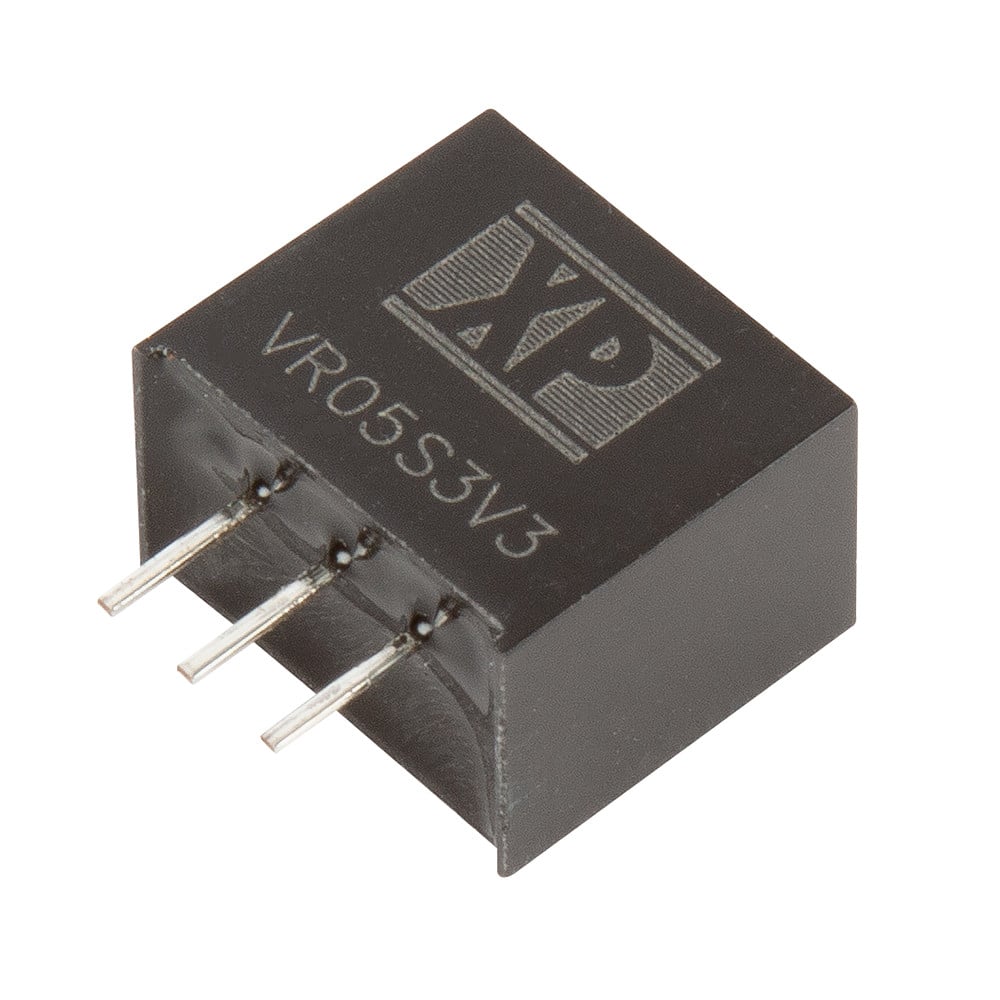

Low Cost 0.5A VR Series SIP3 Switching Regulators
The 0.5A VR05 switching regulators provide a competitive low-cost non-isolated point of load (POL) solution without compromising on quality and performance. They are a cost-effective means of step-down voltage conversion in all sorts of ITE & industrial equipment, for instance: Portable & battery-operated equipment; Sensors; Robotics; Telecommunications; Instrumentation; Embedded computing; Distributed DC supply systems requiring regulation but not needing isolation.
datasheet Contact usFeatures
- Non-isolated 0.5A switching regulator
- Regulated single outputs 3.3 to 15VDC
- Input range up to 36VDC
- SIP3 package
- Low 0.1mA standby input current
- Short circuit protection
- Efficiency to 95%
- Class B conducted & radiated emissions
- -40°C to +85°C operatiing temperature
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
VR05S3V3 | 1.65 W | 4.75 to 36 VDC | 3.3V | 0.5A |
|
|
|
|
|
VR05S05 | 2.5 W | 6.5 to 36 VDC | 5V | 0.5A |
|
|
|
|
|
VR05S09 | 4.5 W | 12 to 36 VDC | 9V | 0.5A |
|
|
|
|
|
VR05S12 | 6 W | 15 to 36 VDC | 12V | 0.5A |
|
|
|
|
|
VR05S15 | 7.5 W | 19 to 36 VDC | 15V | 0.5A |
|
|
|
Specifications
Dimensions
0.457 x 0.401 x 0.297 in. (11.6 x 10.16 x 7.55 mm)
Input Voltage
4.75 to 36 VDC
Efficiency
Up to 95%
Operating Temperature
-40 °C to +85 °C. See datasheet
Isolation
Non-isolated
Other Safety Approvals
CE & UKCA meets all applicable directives & legislation
EMC
EN55032 Class B conducted & radiated
