VEL05 Series

AC-DC Power Supplies

VEL05 Series

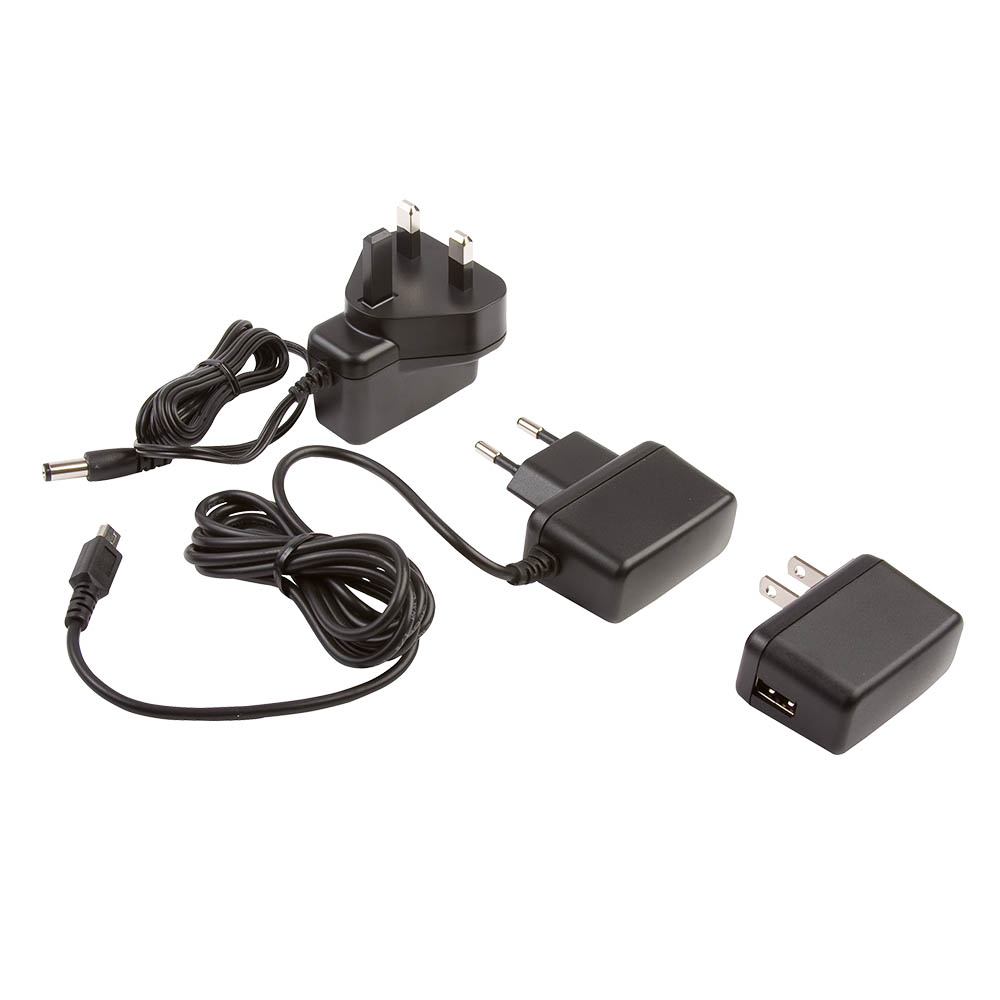

5W plugtop AC-DC power supplies with ITE approvals

The VEL05 series of wall plug adaptors comply with energy efficiency VI standards, have high active mode efficiency and extremely low no load power consumption.

Available in US, UK, EU & AU plug formats, with multiple USB options in addition to the standard barrel jack plug connector, these adaptors suit a wide variety of cost sensitive applications while maintaining industry leading performance.



datasheet Contact us

Features

  • Energy efficiency level VI
  • Barrel jack & USB versions
  • Fixed mains connectors
  • Universal input
  • Output Voltages from 5.0V to 12.0VDC
  • Class II construction
  • Low cost
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VEL05 VEL05US050 5 W Single Phase 5V 1A
VEL05 VEL05US060 5 W Single Phase 6V 0.83A
VEL05 VEL05US090 5 W Single Phase 9V 0.55A
VEL05 VEL05US120 5 W Single Phase 12V 0.42A

Specifications


Dimensions

VEL-US: 2.17 x 0.95 x 1.40 in (55.1 x 24.1 x 35.5 mm) VEL-EU: 2.17 x 0.95 x 1.40 in (55.1 x 24.1 x 35.5 mm) VEL-UK: 2.17 x 1.95 x 1.69 in (55.1 x 49.5 x 42.9 mm)

Input Voltage

90-264 VAC

No Load Input Power

<0.1 W

Harmonic Currents

EN61000-3-2 class A

Efficiency

74-79%

Operating Temperature

0 °C to +60 °C derate linearly from 100% load at +50 °C to 50% load at +60 °C

Isolation

3000 VAC Input to Output

Worldwide Safety Approvals

IEC60950-1, IEC62368-1

European Safety Approvals

EN60950-1, EN62368-1

US Safety Approvals

UL/cUL60950-1, China Compulsory Certification, GB4943 Approved as Limited Power Source RCM

Other Safety Approvals

CE (Meets all applicable directives), UKCA (Meets all applicable legislation)

EMC

EN55032, level B conducted & radiated
