DC-DC Converters

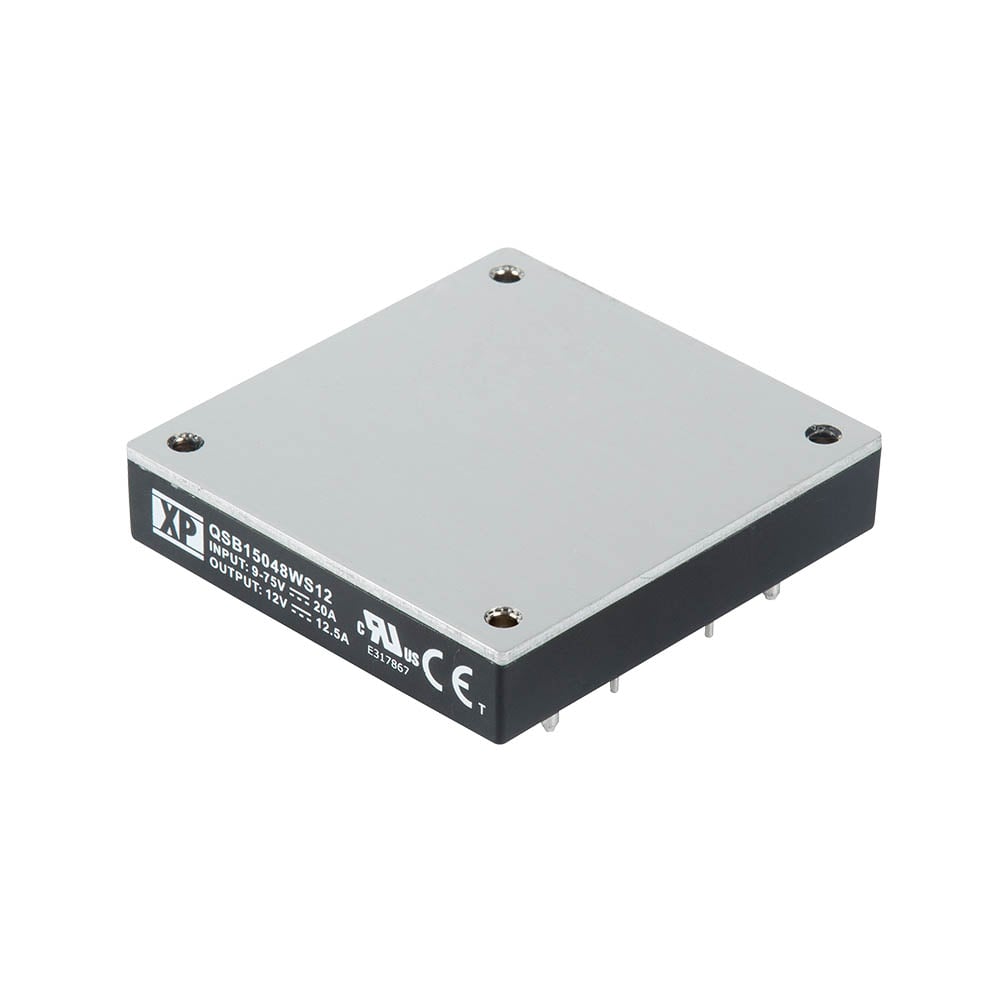

QSB15048W Series
150W wide input 8:1 half brick baseplate cooled DC-DC converters for ITE & industrial electronics applications
The QSB15048W series have an ultra-wide 8:1 input voltage range of 9 to 75VDC providing a flexible single solution for nominal inputs of 12, 24 & 48VDC, making these devices particularly suitable for mobile applications running from battery or vehicle supplies.
Baseplate or heatsink cooling allows operation over a wide temperature range from -40°C to +100°C. Standard features include both remote On/Off and remote sense. Protection features include input under-voltage lockout, overvoltage, short circuit and over load conditions while providing thermal shutdown in overtemperature conditions. Isolation voltage is 1.5kVDC and the output is tightly regulated to within ±0.2% for line changes and ±0.2% maximum under all load conditions.
datasheet Contact us
Features
- Regulated single outputs 12 to 48VDC
- 8:1 input range 9 to 75VDC
- Baseplate cooled ½ brick package
- 1.5kVDC isolation
- Output trim ±10%
- Remote sense
- Remote On/Off
- -40°C to +100°C operating temperature
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
QSB15048WS12 | 150 W | 9 to 75 VDC | 12V | 12.5A |
|
|
|
|
|
QSB15048WS15 | 150 W | 9 to 75 VDC | 15V | 10A |
|
|
|
|
|
QSB15048WS24 | 150 W | 9 to 75 VDC | 24V | 6.25A |
|
|
|
|
|
QSB15048WS28 | 150 W | 9 to 75 VDC | 28V | 5.35A |
|
|
|
|
|
QSB15048WS48 | 150 W | 9 to 75 VDC | 48V | 3.13A |
|
|
|
Specifications
Dimensions
QSB15048W: 2.4 x 2.28 x 0.5‚ (61.0 x 57.9 x 12.7 mm)
Input Voltage
9-75 V
Efficiency
90% (see datasheet)
Operating Temperature
-40 °C to +100 °C (Base plate)
Isolation
1500 VDC Input to Output 1500 VDC Input and Output to Case
European Safety Approvals
EN62368-1 (Evaluated to EN62368-1)
US Safety Approvals
UL60950-1 & CAN/CSA C22.2 No.60950-1
Other Safety Approvals
CE & UKCA meets all applicable directives & legislation
EMC
Conducted and Radiated EN55032, Class A
