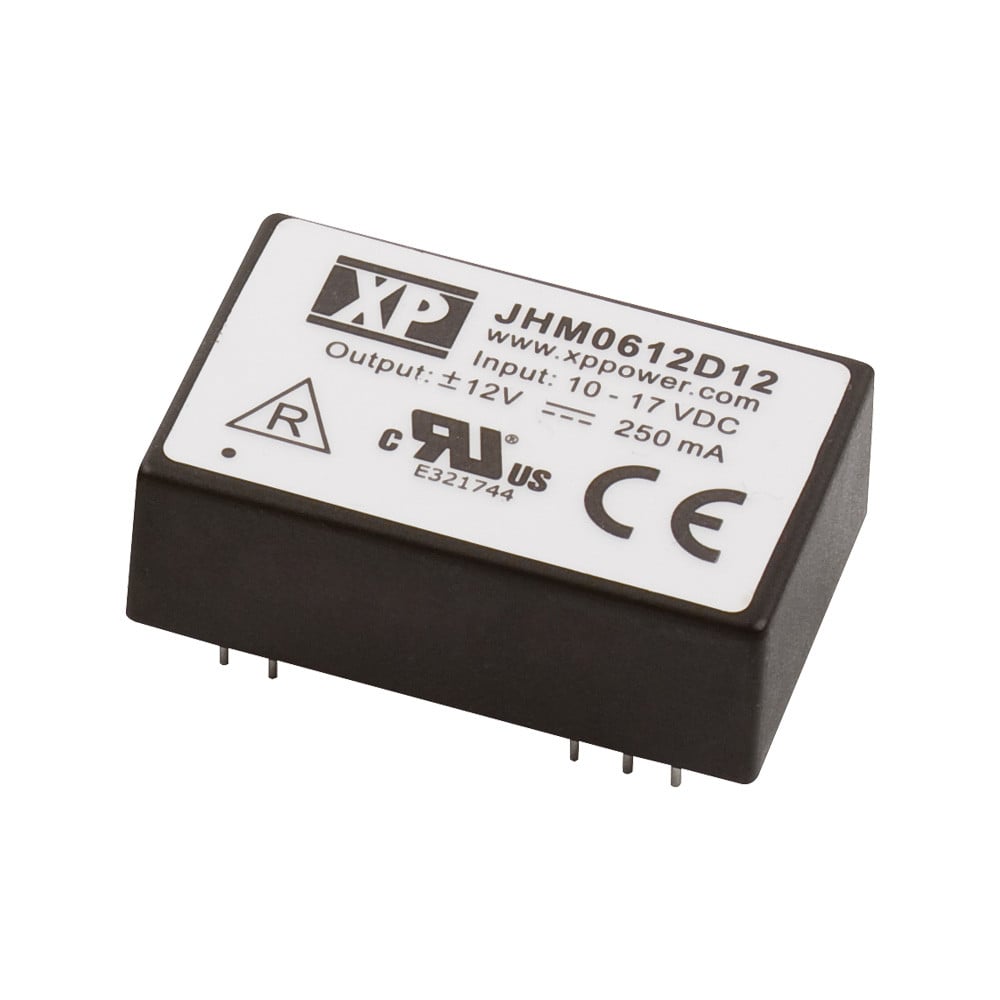

JHM06 Series

1.5:1 input, 6W, regulated, DC-DC converters in a DIP24 PCB mount package for medical (2 x MOPP) applications

The 6W JHM06 series is designed for medical applications with 2 x MOPP 3kVAC reinforced isolation and 2µA patient leakage current, it is housed in a DIP24 PCB mount plastic case.

Featuring a 1.5:1 input voltage range of 10 to 17VDC or 20 to 30VDC with regulated single outputs of 5, 12 & 15VDC, dual outputs ±12 & ±15VDC, adjustable +/-10% with a trim resistor.

Short circuit, overload & over voltage protection are standard. Operating temperature range is from -20°C to +100°C, with derating above +60°C.



  • Regulated single & dual outputs
  • 1.5:1 input range
  • Single outputs 5.0 to 15VDC
  • Dual outputs ±12 & ±15VDC
  • DIP24 package
  • International medical safety approvals
  • 3.0kVAC reinforced isolation
  • 2μA patient leakage current
  • EN55011 Class A with no external components
  • -20°C to +100°C operating temperature
  • Full power to +60°C
  • 3 year warranty
Image Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
JHM0612D12 6W 10 to 17VDC 12V, -12V 0.25A, 0.25A Datasheet Stock RFQ
JHM0612D15 6W 10 to 17VDC 15V, -15V 0.2A, 0.2A Datasheet Stock RFQ
JHM0612S05 6W 10 to 17VDC 5V 1.2A Datasheet Stock RFQ
JHM0612S12 6W 10 to 17VDC 12V 0.5A Datasheet Stock RFQ
JHM0612S15 6W 10 to 17VDC 15V 0.4A Datasheet Stock RFQ
JHM0624D12 6W 20 to 30VDC 12V, -12V 0.25A, -0.25A Datasheet Stock RFQ
JHM0624D15 6W 20 to 30VDC 15V, -15V 0.2A, -0.2A Datasheet Stock RFQ
JHM0624S05 6W 20 to 30VDC 5V 1.2A Datasheet Stock RFQ
JHM0624S12 6W 20 to 30VDC 12V 0.5A Datasheet Stock RFQ
JHM0624S15 6W 20 to 30VDC 15V 0.4A Datasheet Stock RFQ
