DX Series

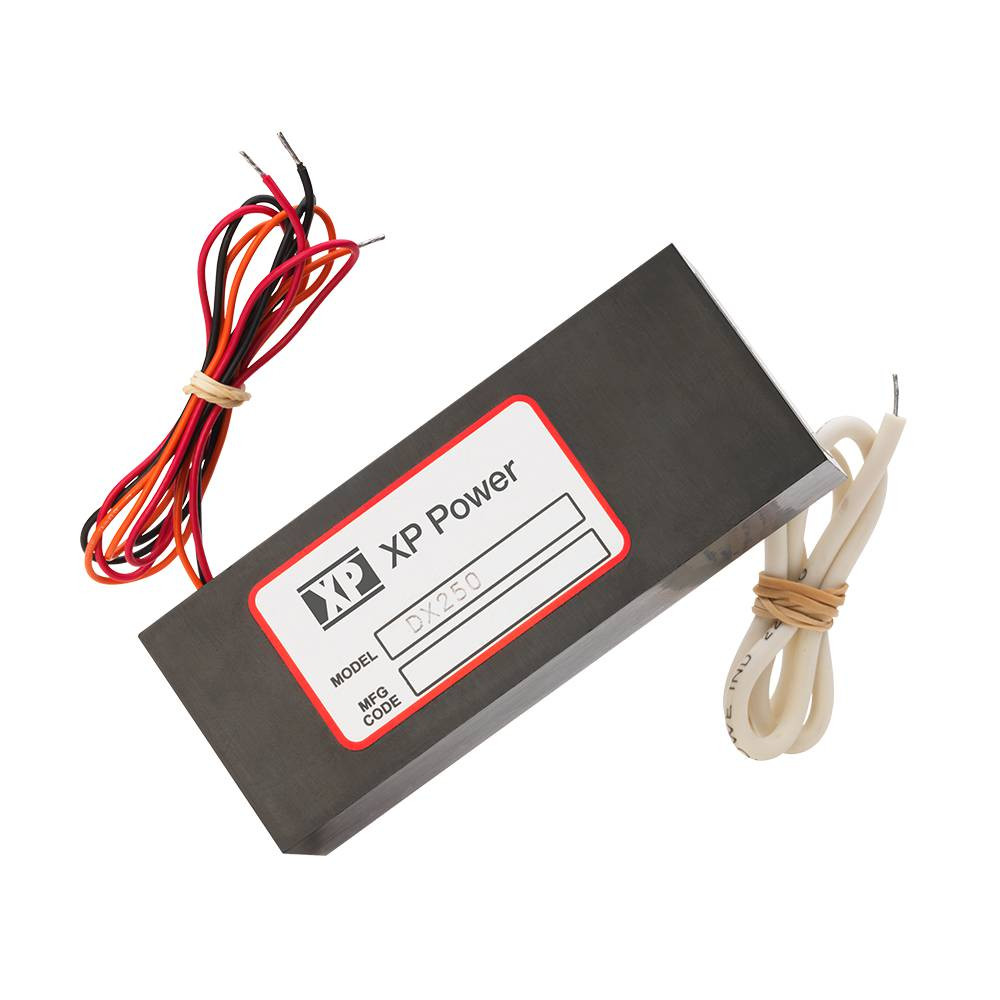

1.5W ultra-miniature DC-HVDC converters with outputs up to 25kVDC

The DX series is a line of high voltage power supplies providing up to 25kVDC for applications requiring a compact source of clean, reliable, low cost high voltage.

This unit exhibits low noise and EMI/RFI by utilizing a quasisinewave oscillator and a fully enclosed ferrite pot core transformer. The output voltage is controlled by an external potentiometer or resistor. The high voltage connection is made through a 30kV silicone wire.

Typical applications are: Capacitor charging, Ionization, Dielectric testing, Air cleaning & Electrostatic generators.

Features

  • Output voltages up to 25kVDC
  • Resistance controllable
  • Proportional operation
  • Low EMI/RFI sinewave oscillator
  • Input voltage 12 & 24VDC
  • Short circuit protection
  • Low cost/high performance
  • UL certified encapsulant, meets 94V-0 flammability
  • RoHS compliant
  • 3 year warranty
Image Model Name Power Output Voltage Input Voltage Output Regulation Datasheet Stock Check RFQ
DX120R 1.5 W 1.8 to 12 kV 11.4 to 13.2 VDC Proportional Datasheet Stock RFQ
DX150N 1.5 W 2.5 to 15 kV 11.4 to 13.2 VDC Proportional Datasheet Stock RFQ
DX200 1.5 W 3 to 20 kV 11.4 to 13.2 VDC Proportional Datasheet Stock RFQ
DX250 1.5 W 4 to 25 kV 11.4 to 13.2 VDC Proportional Datasheet Stock RFQ
DX250-24 1.5 W 10 to 25 kV 22.8 to 26.4 VDC Proportional Datasheet Stock RFQ
