DDC15 Series

DC-DC Converters

DDC15 Series

15W 4:1 DC-DC converter in a low-profile DIN rail mount housing

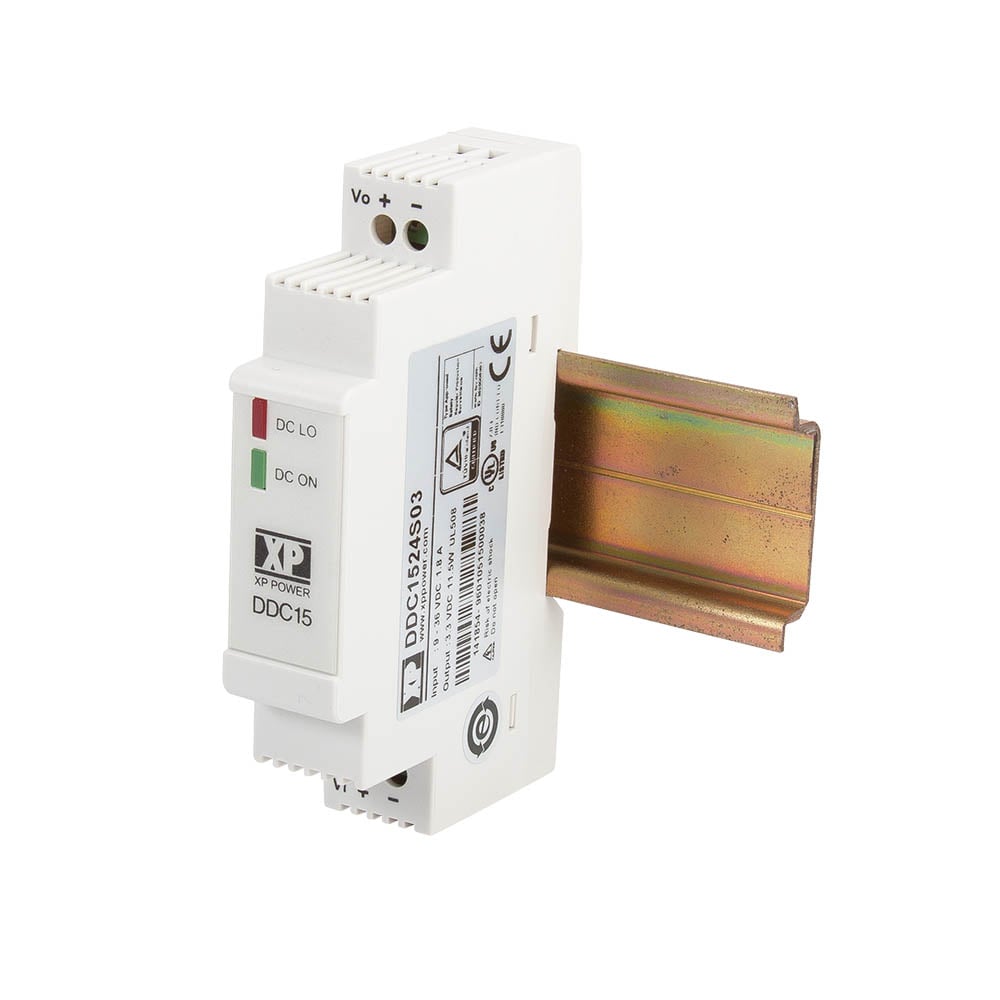

The DDC15 series is a range DC-DC converters housed in a low-profile DIN rail case of a similar profile to that of circuit breakers, allowing them to fit in consumer unit style housings, or in standard control panel installations.

Designed to offer additional voltages in DIN rail power systems, provide isolated outputs & noise immunity or support battery powered or battery backed applications.

With a 4:1 wide input range the DDC15 series converters can be supplied by both a 12V or 24V nominal input and offer output voltages between 3.3VDC and 24VDC.

Typical applications are: Machine control; Process control; Factory automation; Building heating/aircon monitoring, control & security systems; Escalator/travelator/elevator/lift control.



datasheet Contact us

Features

  • 4:1 DC Input Range 9V to 36VDC
  • 3.3V to 24VDC Outputs
  • Low Profile Design
  • 1.5kVDC Isolation
  • Class B Conducted and Radiated Emissions
  • High Efficiency – Up to 85%
  • Ambient Operation from -40°C to +70°C
  • 3 Year Warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
DDC15 DDC1524S03 15 W 9 to 36 VDC 3.3V 3.5A
DDC15 DDC1524S05 15 W 9 to 36 VDC 5V 2.7A
DDC15 DDC1524S09 15 W 9 to 36 VDC 9V 1.5A
DDC15 DDC1524S12 15 W 9 to 36 VDC 12V 1.25A
DDC15 DDC1524S15 15 W 9 to 36 VDC 15V 1A
DDC15 DDC1524S24 15 W 9 to 36 VDC 24V 0.63A

Specifications


Dimensions

DDC15: 0.71 x 3.58 x 2.22 in (18.0 x 91.0 x 56.5 mm)

Input Voltage

9.0-36.0 VDC

Efficiency

82% typical

Operating Temperature

-40 °C to +70 °C, see datasheet

Isolation

1500 VDC minimum variable

Worldwide Safety Approvals

IEC60950-1 +A2:2013

European Safety Approvals

EN62368-1:2014/A11:2017

US Safety Approvals

UL508, UL62368-1:2014

Other Safety Approvals

CE & UKCA meets all applicable directives & legislation

EMC

EN55022, class B conducted and radiated
