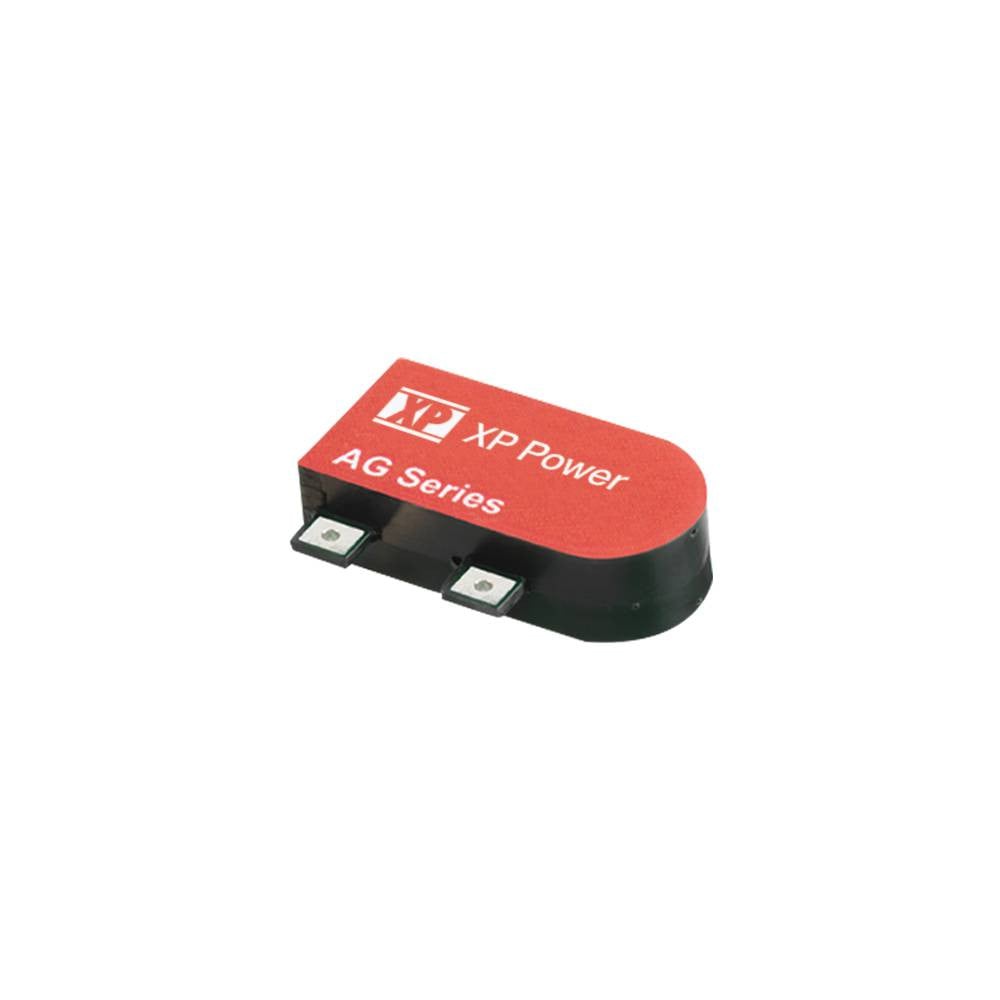

AG

+ Click To Enlarge

Sample Request

1 Watt

  • DC to High Voltage DC Converters
  • Isolated Output Voltage is Proportional to Input Voltage
  • Ultra-Miniature, Low Profile, SMT
  • Low Turn On Voltage: <0.7VDC
  • 100V to 6 kV Output Voltage
  • Positive or Negative
  • Very Low I/O Leakage Current
  • Reversible Polarity
  • Low Noise, Quasi-Sinewave Resonant Oscillator
  • MTBF>1.8 Million Hours
High Voltage Applications
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
AG01N-12 0.7 to 12 Vdc 0 to -100 V / 0.01 A
1W Stock Check
A01N-24 0.7 to 24 Vdc 0 to -100 V / 0.01 A
1W Stock Check
A01N-5 0.7 to 5 Vdc 0 to -100 V / 0.01 A
1W Stock Check
A01P-12 0.7 to 12 Vdc 0 to +100 V / 0.01 A
1W Stock Check
AG01P-24 0.7 to 24 Vdc 0 to +100 V / 0.01 A
1W Stock Check
AG01P-5 0.7 to 5 Vdc 0 to +100 V / 0.01 A
1W Stock Check
AG025N-12 0.7 to 12 Vdc 0 to -250 V / 0.004 A
1W Stock Check
AG025N-24 0.7 to 24 Vdc 0 to -250 V / 0.004 A
1W Stock Check
AG025N-5 0.7 to 5 Vdc 0 to -250 V / 0.004 A
1W Stock Check
AG025P-12 0.7 to 12 Vdc 0 to +250 V / 0.004 A
1W Stock Check
AG025P-24 0.7 to 24 Vdc 0 to +250 V / 0.004 A
1W Stock Check
AG025P-5 0.7 to 5 Vdc 0 to +250 V / 0.004 A
1W Stock Check
AG02N-12 0.7 to 12 Vdc 0 to -200 V / 0.005 A
1W Stock Check
AG02N-24 0.7 to 24 Vdc 0 to -200 V / 0.005 A
1W Stock Check
AG02N-5 0.7 to 5 Vdc 0 to -200 V / 0.005 A
1W Stock Check
AG02P-12 0.7 to 12 Vdc 0 to +200 V / 0.005 A
1W Stock Check
AG02P-24 0.7 to 24 Vdc 0 to +200 V / 0.005 A
1W Stock Check
AG02P-5 0.7 to 5 Vdc 0 to +200 V / 0.005 A
1W Stock Check
AG03N-12 0.7 to 12 Vdc 0 to -300 V / 0.00333 A
1W Stock Check
AG03N-24 0.7 to 24 Vdc 0 to -300 V / 0.00333 A
1W Stock Check
AG03N-5 0.7 to 5 Vdc 0 to -300 V / 0.00333 A
1W Stock Check
AG03P-12 0.7 to 12 Vdc 0 to +300 V / 0.00333 A
1W Stock Check
AG03P-24 0.7 to 24 Vdc 0 to +300 V / 0.00333 A
1W Stock Check
AG03P-5 0.7 to 5 Vdc 0 to +300 V / 0.00333 A
1W Stock Check
AG04N-12 0.7 to 12 Vdc 0 to -400 V / 0.0025 A
1W Stock Check
AG04N-24 0.7 to 24 Vdc 0 to -400 V / 0.0025 A
1W Stock Check
AG04N-5 0.7 to 5 Vdc 0 to -400 V / 0.0025 A
1W Stock Check
AG04P-12 0.7 to 12 Vdc 0 to +400 V / 0.0025 A
1W Stock Check
AG04P-24 0.7 to 24 Vdc 0 to +400 V / 0.0025 A
1W Stock Check
AG04P-5 0.7 to 5 Vdc 0 to +400 V / 0.0025 A
1W Stock Check
AG05N-12 0.7 to 12 Vdc 0 to -500 V / 0.002 A
1W Stock Check
AG05N-5 0.7 to 5 Vdc 0 to -500 V / 0.002 A
1W Stock Check
AG05P-12 0.7 to 12 Vdc 0 to +500 V / 0.002 A
1W Stock Check
AG05P-24 0.7 to 24 Vdc 0 to +500 V / 0.002 A
1W Stock Check
AG05P-5 0.7 to 5 Vdc 0 to +500 V / 0.002 A
1W Stock Check
AG06N-12 0.7 to 12 Vdc 0 to -600 V / 0.00167 A
1W Stock Check
AG06N-24 0.7 to 24 Vdc 0 to -600 V / 0.00167 A
1W Stock Check
AG06N-5 0.7 to 5 Vdc 0 to -600 V / 0.00167 A
1W Stock Check
AG06P-12 0.7 to 12 Vdc 0 to +600 V / 0.00167 A
1W Stock Check
AG06P-5 0.7 to 5 Vdc 0 to +600 V / 0.00167 A
1W Stock Check
AG07N-12 0.7 to 12 Vdc 0 to -700 V / 0.00143 A
1W Stock Check
AG07N-24 0.7 to 24 Vdc 0 to -700 V / 0.00143 A
1W Stock Check
AG07N-5 0.7 to 5 Vdc 0 to -700 V / 0.00143 A
1W Stock Check
AG07P-12 0.7 to 12 Vdc 0 to +700 V / 0.00143 A
1W Stock Check
AG07P-24 0.7 to 24 Vdc 0 to +700 V / 0.00143 A
1W Stock Check
AG07P-5 0.7 to 5 Vdc 0 to +700 V / 0.00143 A
1W Stock Check
AG08N-12 0.7 to 12 Vdc 0 to -800 V / 0.00125 A
1W Stock Check
AG08N-24 0.7 to 24 Vdc 0 to -800 V / 0.00125 A
1W Stock Check
AG08N-5 0.7 to 5 Vdc 0 to -800 V / 0.00125 A
1W Stock Check
AG08P-12 0.7 to 12 Vdc 0 to +800 V / 0.00125 A
1W Stock Check
AG08P-24 0.7 to 24 Vdc 0 to +800 V / 0.00125 A
1W Stock Check
AG08P-5 0.7 to 5 Vdc 0 to +800 V / 0.00125 A
1W Stock Check
AG09N-12 0.7 to 12 Vdc 0 to -900V V / 0.0011 A
1W Stock Check
AG09N-24 0.7 to 24 Vdc 0 to -900 V / 0.0011 A
1W Stock Check
AG09N-5 0.7 to 5 Vdc 0 to -900 V / 0.0011 A
1W Stock Check
AG09P-12 0.7 to 12 Vdc 0 to +900 V / 0.0011 A
1W Stock Check
AG09P-5 0.7 to 5 Vdc 0 to +900 V / 0.0011 A
1W Stock Check
AG10N-12 0.7 to 12 Vdc 0 to -1000 V / 0.001 A
1W Stock Check
AG10N-24 0.7 to 24 Vdc 0 to -1000 V / 0.001 A
1W Stock Check
AG10N-5 0.7 to 5 Vdc 0 to -1000 V / 0.001 A
1W Stock Check
AG10P-12 0.7 to 12 Vdc 0 to +1000 V / 0.001 A
1W Stock Check
AG10P-24 0.7 to 24 Vdc 0 to +1000 V / 0.001 A
1W Stock Check
AG10P-5 0.7 to 5 Vdc 0 to +1000 V / 0.001 A
1W Stock Check
AG12N-12 0.7 to 12 Vdc 0 to -1200 V / 0.00083 A
1W Stock Check
AG12N-24 0.7 to 24 Vdc 0 to -1200 V / 0.00083 A
1W Stock Check
AG12N-5 0.7 to 5 Vdc 0 to -1200 V / 0.00083 A
1W Stock Check
AG12P-12 0.7 to 12 Vdc 0 to +1200 V / 0.00083 A
1W Stock Check
AG12P-24 0.7 to 24 Vdc 0 to +1200 V / 0.00083 A
1W Stock Check
AG12P-5 0.7 to 5 Vdc 0 to +1200 V / 0.00083 A
1W Stock Check
AG15N-12 0.7 to 12 Vdc 0 to -1500 V / 0.00066 A
1W Stock Check
AG15N-24 0.7 to 24 Vdc 0 to -1500 V / 0.00066 A
1W Stock Check
AG15N-5 0.7 to 5 Vdc 0 to -1500 V / 0.00066 A
1W Stock Check
AG15P-12 0.7 to 12 Vdc 0 to +1500 V / 0.00066 A
1W Stock Check
AG15P-24 0.7 to 24 Vdc 0 to +1500 V / 0.00066 A
1W Stock Check
AG15P-5 0.7 to 5 Vdc 0 to +1500 V / 0.00066 A
1W Stock Check
AG20N-12 0.7 to 12 Vdc 0 to -2000 V / 0.0005 A
1W Stock Check
AG20N-24 0.7 to 24 Vdc 0 to -2000 V / 0.0005 A
1W Stock Check
AG20N-5 0.7 to 5 Vdc 0 to -2000 V / 0.0005 A
1W Stock Check
AG20P-12 0.7 to 12 Vdc 0 to +2000 V / 0.0005 A
1W Stock Check
AG20P-24 0.7 to 24 Vdc 0 to +2000 V / 0.0005 A
1W Stock Check
AG20P-5 0.7 to 5 Vdc 0 to +2000 V / 0.0005 A
1W Stock Check
AG30N-12 0.7 to 12 Vdc 0 to -3000 V / 0.00032 A
1W Stock Check
AG30N-5 0.7 to 5 Vdc 0 to -3000 V / 0.00032 A
1W Stock Check
AG30P-12 0.7 to 12 Vdc 0 to +3000 V / 0.00032 A
1W Stock Check
AG30P-24 0.7 to 24 Vdc 0 to +3000 V / 0.00032 A
1W Stock Check
AG30P-5 0.7 to 5 Vdc 0 to +3000 V / 0.00032 A
1W Stock Check
AG40P-5 0.7 to 5 Vdc 0 to +4000 V / 0.00024 A
1W Stock Check
AG50N-5 0.7 to 5 Vdc 0 to -5000 V / 0.0002 A
1W Stock Check
AG50P-5 0.7 to 5 Vdc 0 to +5000 V / 0.0002 A
1W Stock Check
AG60N-5 0.7 to 5 Vdc 0 to -6000 V / 0.000167 A
1W Stock Check
AG60P-5 0.7 to 5 Vdc 0 to +6000 V / 0.000167 A
1W Stock Check

Short Form Datasheet

  • Dimensions:
    AG01-AG20 (100V-2kV) : 0.92 x 0.45 x x 0.25 in (23.37 x 11.43 x 6.35 mm)
    AG30-AG50 (3kV-5kV): 1.13 x 0.45 x 0.25 in (28.70 x 11.43 x 6.35 mm)
    AG60 (6kV): 1.32 x 0.45 x 0.25 in (33.53 x 11.43 x 6.35 mm)
  • Input Voltage:
    5 VDC, 12 VDC or 24 VDC (up to 3kV)
  • Operating Temp:
    -25°C to +75°C Standard  (-55°C to 105°C Extended) - CASE
  • Isolation:
    Input to Output Galvanic Isolation  < ± 500V BIAS on pin 4
  • Worldwide Safety Approvals:
    IEC 60950-1
  • European Safety Approvals:
    EN60950-1:2006+A1+A11+A12
  • US Safety Approvals:
    UL/UL 60950-1, CSA C22.2 NO. 60950-1-07

Declaration of Conformity

CB Certificate









To access 3D models please Login
Or register.
