CCR750
750W fan & conduction cooled
600W conduction cooled, 260W convection cooled
154.8 x 83.5mm (6.1" x 3.3") footprint, 25.4mm profile
Single outputs 12V to 54VDC
Input range 85 to 264VAC
Medical (BF) and ITE approvals
Low patient leakage <90μA
Low earth leakage <300μA
High efficiency, up to 94%
Less than 0.5W no load input power
Class B conducted & radiated emissions
-40°C to +80°C operation
3 year warranty

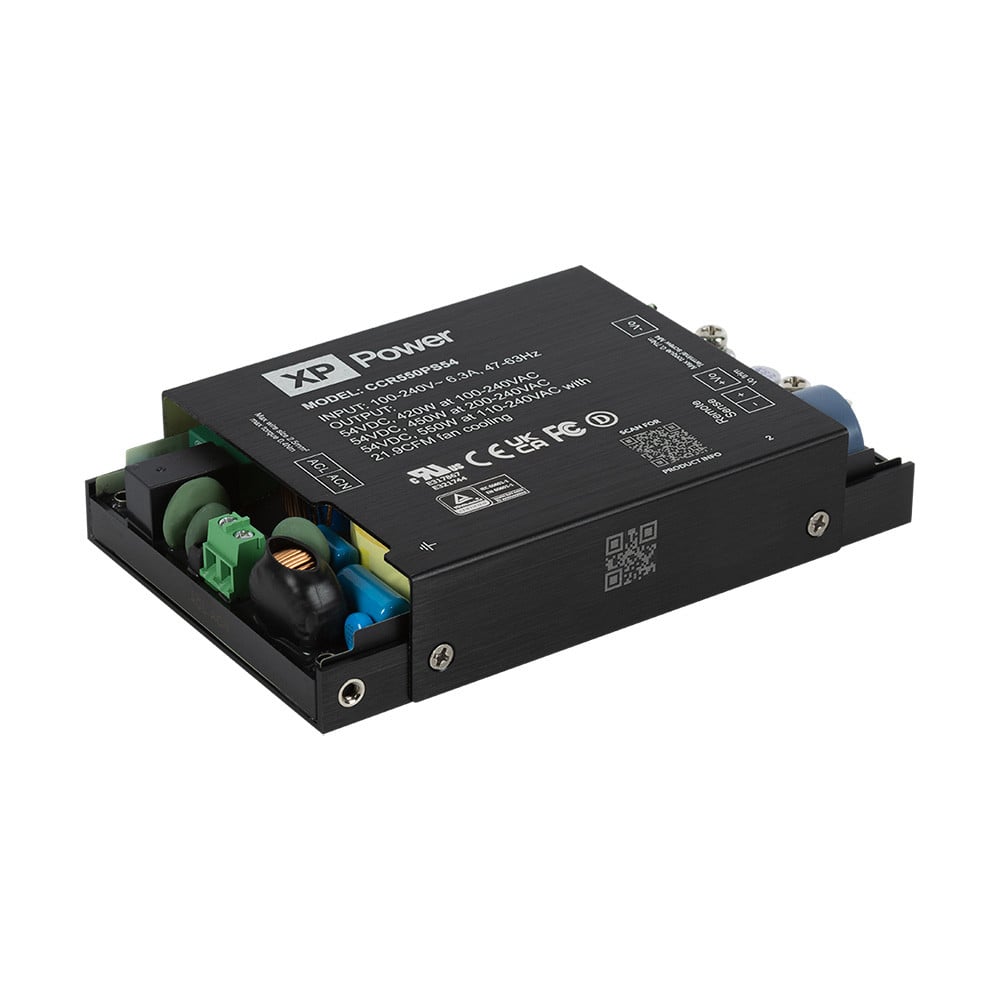

CCR550
550W fan cooled 450W conduction cooled
230W convection cooled
129.4 x 83.5mm (5.1" x 3.3") footprint, 25.4mm profile
Single outputs 12V to 54VDC
Input range 80 to 264VAC
Medical (BF) and ITE approvals
Low patient leakage <75μA
Low earth leakage <300μA
High efficiency, up to 94%
Less than 0.5W no load input power
-40°C to +80°C operation
3 year warranty
CCR420
420W fan cooled 350W conduction cooled
225W convection cooled
129.4 x 83.5mm (5.1" x 3.3") footprint, 25.4mm profile
Single outputs12 to 54VDC
Input range 80 to 264VAC
Medical (BF) and ITE approvals
Low patient leakage <75μA
Low earth leakage <300μA
High efficiency, up to 94%
Less than 0.5W no load input power
-40°C to +80°C operation
3 year warranty
CCR200
200W fan cooled 170W conduction cooled
110W convection cooled
78.6 x 57.9mm (3.1" x 2.3") footprint, 25.4mm profile
Single outputs from 12 to 54VDC
Input range 85 to 264VAC
Medical (BF) and ITE approvals
Low patient leakage <75μA
Low earth leakage <300μA
High efficiency, up to 94%
Less than 0.32W no load input power
-40°C to +80°C operation
3 year warranty
CCR300
300W fan cooled 250W conduction cooled
160W convection cooled
104.0 x 57.9mm (4.1" x 2.3") footprint, 25.4mm profile
Single outputs 12 to 54VDC
Input range 85 to 264VAC
Medical (BF) and ITE approvals
Low patient leakage <75μA
Low earth leakage <300μA
High efficiency, up to 94%
Less than 0.3W no load input power
-40°C to +80°C operation
3 year warranty
