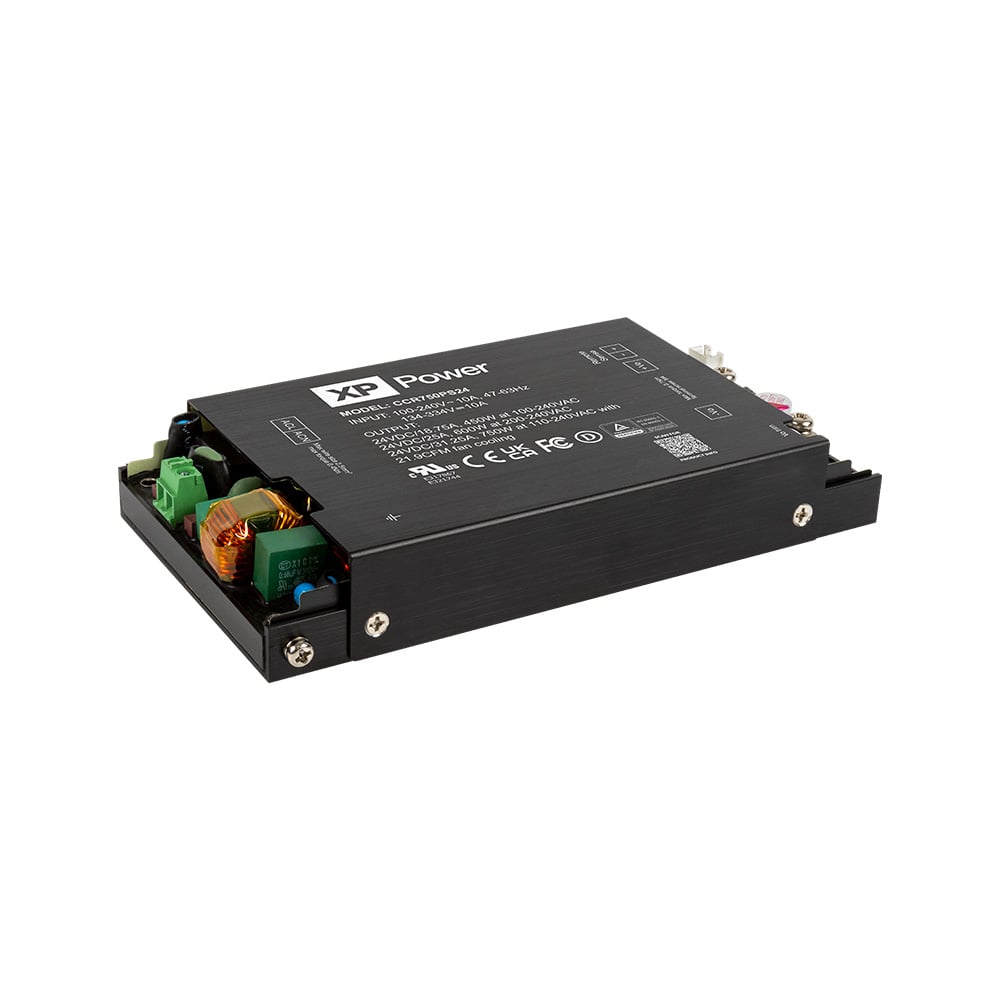

CCR750 Series
750W fan & conduction cooled, 600W conduction cooled, 320W convection cooled AC-DC power supplies for medical (2 x MOPP) or industrial technology applications
The CCR750 series of compact medical AC-DC power supplies are designed to operate in convection, conduction, and fan cooled applications with power ratings from 320W to 750W. CCR750 offers high efficiency and high power density in a low 25.4mm (1") profile, baseplate cooled design that ensures effective thermal management and quiet operation for noise sensitive applications.
Featuring Class B conducted and radiated emissions, worldwide industrial and medical safety approvals, 2 x MOPP isolation and low leakage currents, the CCR750 is designed for easy integration into a wide range of BF rated medical applications including respiratory care, imaging, patient monitoring, patient treatment, and industrial applications such as process control, test & measurement, and industrial printing.
Features
750W fan & conduction cooled
600W conduction cooled, 320W convection cooled
154.8 x 83.5mm (6.1" x 3.3") footprint, 25.4mm profile
Single outputs 12V to 54VDC
Input range 85 to 264VAC
Medical (BF) and ITE approvals
Low patient leakage <90μA
Low earth leakage <300μA
High efficiency, up to 94%
Less than 0.5W no load input power
Class B conducted & radiated emissions
-40°C to +80°C operation
3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
CCR750PS12 | 750W | Single Phase | 12V | 62.5A | Datasheet | Stock | RFQ |
|
|
CCR750PS15 | 750W | Single Phase | 15V | 50A | Datasheet | Stock | RFQ |
|
|
CCR750PS24 | 750W | Single Phase | 24V | 31.25A | Datasheet | Stock | RFQ |
|
|
CCR750PS28 | 750W | Single Phase | 28V | 26.78A | Datasheet | Stock | RFQ |
|
|
CCR750PS30 | 750W | Single Phase | 30V | 25A | Datasheet | Stock | RFQ |
|
|
CCR750PS36 | 750W | Single Phase | 36V | 20.83A | Datasheet | Stock | RFQ |
|
|
CCR750PS48 | 750W | Single Phase | 48V | 15.62A | Datasheet | Stock | RFQ |
|
|
CCR750PS54 | 750W | Single Phase | 54V | 13.88A | Datasheet | Stock | RFQ |
