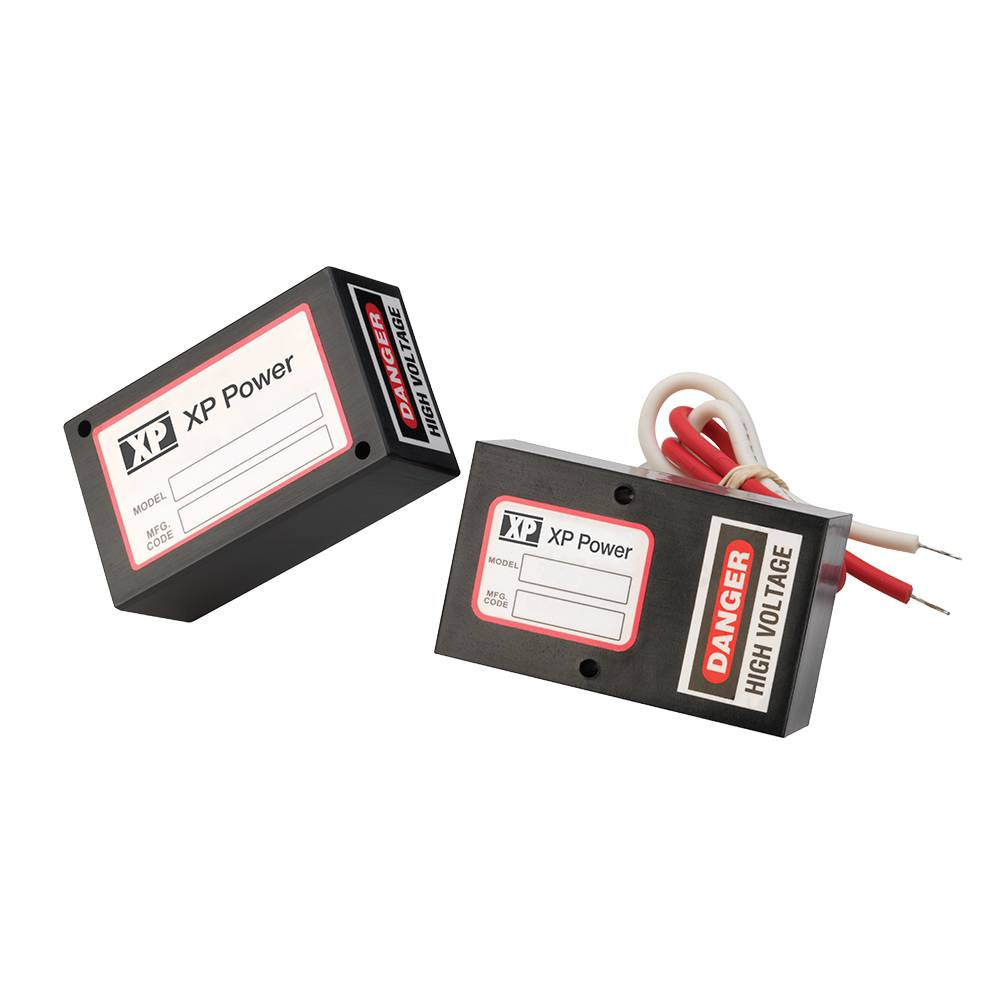

+ Click To Enlarge

2-3 Watts

  • DC to High Voltage DC Converters
  • Isolated Output Voltage is Proportional to Input Voltage
  • General Purpose, Cost Effective
  • Low Turn On Voltage: <0.7 VDC
  • 200V to 7kV(3W) and 8kV(2W) Output Voltage
  • Positive or Negative
  • Very Low I/O Leakage Current
  • Reversible Polarity
  • Low Noise, Quasi-Sinewave Resonant Oscillator
  • MTBF>2 Million Hours
High Voltage Applications
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
E02 0 to 12 Vdc 0 to 200 V / 0.015 A
 3W Request Sample Stock Check
E02-5 0 to 12 Vdc 0 to 250 V / 0.012 A
 3W Request Sample Stock Check
E03 0 to 12 Vdc 0 to 250 V / 0.010 A
 3W Request Sample Stock Check
E05 0 to 12 Vdc 0 to 500 V / 0.006 A
 3W Request Sample Stock Check
E06 0 to 12 Vdc 0 to 600 V / 0.005 A
 3W Request Sample Stock Check
E07-5 0 to 12 Vdc 0 to 750 V / 0.004 A
 3W Request Sample Stock Check
E08 0 to 12 Vdc 0 to 800 V / 0.0037 A
 3W Request Sample Stock Check
E10 0 to 12 Vdc 0 to 1000 V / 0.003 A
 3W Request Sample Stock Check
E12 0 to 12 Vdc 0 to 1200 V / 0.0025 A
 3W Request Sample Stock Check
E15 0 to 12 Vdc 0 to 1500 V / 0.002 A
 3W Request Sample Stock Check
E20 0 to 12 Vdc 0 to 2000 V / 0.0015 A
 3W Request Sample Stock Check
E30 0 to 15 Vdc 0 to 3000 V / 0.001 A
 3W Request Sample Stock Check
E40 0 to 15 Vdc 0 to 4000 V / 0.00075 A
 3W Request Sample Stock Check
E50 0 to 15 Vdc 0 to 5000 V / 0.0006 A
 3W Request Sample Stock Check
E60 0 to 15 Vdc 0 to 6000 V / 0.0005 A
 3W Request Sample Stock Check
E70 0 to 15 Vdc 0 to 7000 V / 0.00043 A
 3W Request Sample Stock Check
E80 0 to 15 Vdc 0 to 8000 V / 0.00025 A
 2W Request Sample Stock Check
E02-5CT 0 to 12 Vdc 0 to 200 V / 0.015 A
 3W Request Sample Stock Check
E02CT 0 to 12 Vdc 0 to +100 V / 0.015 A
0 to -100 V / 0.015 A
 3W Request Sample Stock Check
E03CT 0 to 12 Vdc 0 to +150 V / 0.01 A
0 to -150 V / 0.01 A
 3W Request Sample Stock Check
E05CT 0 to 12 Vdc 0 to +250 V / 0.006 A
0 to -250 V / 0.006 A
 3W Request Sample Stock Check
E06CT 0 to 12 Vdc 0 to +300 V / 0.005 A
0 to -300 V / 0.005 A
 3W Request Sample Stock Check
E07-5CT 0 to 12 Vdc 0 to +750 V / 0.004 A
0 to -750 V / 0.004 A
 3W Request Sample Stock Check
E08CT 0 to 12 Vdc 0 to +400V V / 0.0037 A
0 to -400V V / 0.0037 A
 3W Request Sample Stock Check
E10CT 0 to 12 Vdc 0 to +500 V / 0.003 A
0 to -500 V / 0.003 A
 3W Request Sample Stock Check
E10N 0 to 12 Vdc 0 to -1000 V / 0.003 A
 3W Request Sample Stock Check
E12CT 0 to 12 Vdc 0 to +600 V / 0.0025 A
0 to -600 V / 0.0025 A
 3W Request Sample Stock Check
E15CT 0 to 12 Vdc 0 to +750 V / 0.002 A
0 to -750 V / 0.002 A
 3W Request Sample Stock Check
E20CT 0 to 12 Vdc 0 to +1000 V / 0.0015 A
0 to -1000 V / 0.0015 A
 3W Request Sample Stock Check
E30CT 0 to 15 Vdc 0 to +1500 V / 0.001 A
0 to -1500 V / 0.001 A
 3W Request Sample Stock Check
E40CT 0 to 15 Vdc 0 to +2000 V / 0.00075 A
0 to -2000 V / 0.00075 A
 3W Request Sample Stock Check
E50CT 0 to 15 Vdc 0 to +2500 V / 0.0006 A
0 to -2500 V / 0.0006 A
 3W Request Sample Stock Check
E60CT 0 to 15 Vdc 0 to +3000 V / 0.0005 A
0 to -3000 V / 0.0005 A
 3W Request Sample Stock Check
E60N 0 to 15 Vdc 0 to -6000 V / 0.0005 A
 3W Request Sample Stock Check
E70CT 0 to 15 Vdc 0 to +3500 V / 0.00043 A
0 to -3500 V / 0.00043 A
 3W Request Sample Stock Check
E80CT 0 to 15 Vdc 0 to +4000 V / 0.00025 A
0 to -4000 V / 0.00025 A
 2W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    E02-E80 (200V-8kV): 2.5 x 1.5 x 0.85 in (63.5 x 38.1 x 21.6 mm)
  • Input Voltage:
    12VDC to 15VDC
  • Operating Temp:
    -10°C to +60°C - CASE (E02-E60 Models)
    -10°C to +50°C - CASE (E70-E80 Models)
  • Isolation:
    Input to Output Galvanic Isolation
    < ±3.5kV BIAS (E02 to E60)
    < ±500V BIAS (E70 to E80)
