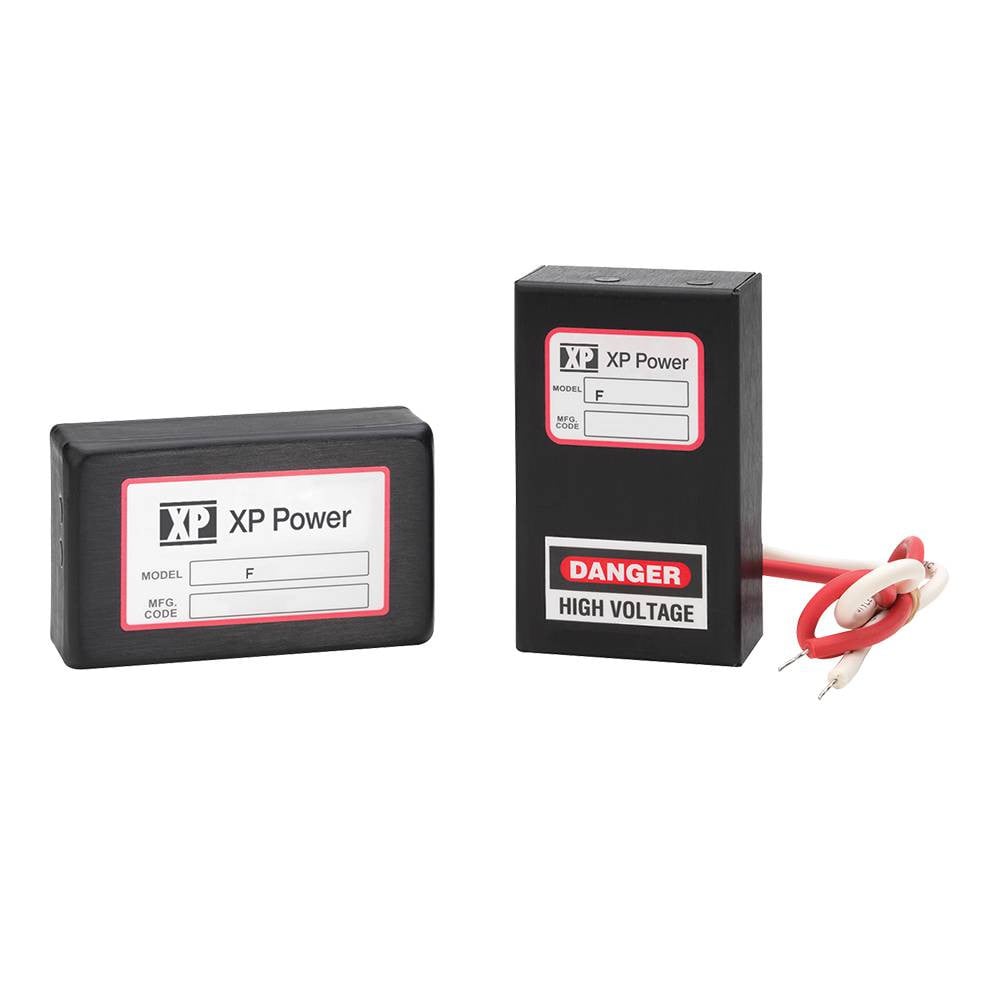

10W ultra-miniature DC-HVDC converters with outputs 0 - 100V to 0 - 12kV DC
The F Series is a broad line of robust, field-proven DC to HVDC converters which deliver 10 Watts continuous output power. Outputs range from 100V to 12kV.
The input and output are galvanically isolated so a unit can be used to deliver a positive or negative high voltage output. The output voltage is proportional to input voltage with a low 0.7V typical turn-on voltage.
The F Series employs a quasi-sinewave oscillator, a fully enclosed transformer, input and output filtering, and a 5-sided metal enclosure. As a result, these modules exhibit very low EMI noise and ripple.
A dual output option has a center-tap pin which, when grounded provides both positive and negative outputs from one compact module.
Output voltages up to 12kVDC
Isolated output voltage proportional to input voltage
Positive or negative, reversible polarity
General purpose, cost effective
Low turn on voltage: <0.7VDC
Input voltage 0 to 12VDC, or 0 to 15VDC
Very low I/O leakage current
Low noise, quasi-sinewave resonant oscillator
MTBF>810khrs
3 year warranty
| Model number | Power | Output voltage | Input voltage | Output regulation | Actions |
|---|---|---|---|---|---|
| 10W | 0 to 200V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 200V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 400V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 300V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 400V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 500V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 1kV | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 600V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 800V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 1kV | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 1.2kV | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 1.5kV | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 3kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 2kV | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 5kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 3kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 6kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 4kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 5kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 6kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 8kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 200V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 300V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 300V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 400V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 400V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 500V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 600V | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 10kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 12kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 12kV | 0.7 to 15VDC | Proportional | ||
| 10W | 0 to 1.5kV | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 1.5kV | 0.7 to 12VDC | Proportional | ||
| 10W | 0 to 6kV | 0.7 to 15VDC | Proportional |
No documents yet.
10W
Output voltages up to 6kVDC
Output voltage proportional to input
Low turn on voltage: <0.7VDC
Input to output isolation 2.5kVDC + Vout
Dual output option
12, 15, 24 & 28VDC input models
Arc & short circuit protected
Overtemperature & overvoltage protection, auto shutdown
Low profile 0.5"
MTBF> 840khrs
-25°C to +75°C operating case temperature
-55°C to +85°C extended operating range option
3 year warranty
30W
Output voltages up to 6kVDC
10 to 100% programmable output & current
Output voltage & current regulated
Low ripple <0.05%
Voltage & current monitor outputs
+24VDC input [22 to 30VDC]
On-board +5VDC reference
Efficiency >80%
Short circuit, thermal, overload & arc protection
76.2 x 38.1 x 18.6 mm format
Premier thermal performance
-40°C to +70°C operating temperature
3 year warranty
5W
Output voltages up to 6kVDC
0 to 100% programmable output voltage
Load and line regulation <0.01%
Low ripple <0.01%
Voltage & current monitor output
+24VDC input (22 to 30VDC)
On-board +5VDC reference
Short circuit, arc, and overload protection
64.8 x 33.0 x 15.2 mm package
UL62368 and UL61010 approvals
Operating temperature: -40°C to +70°C
3 year warranty
