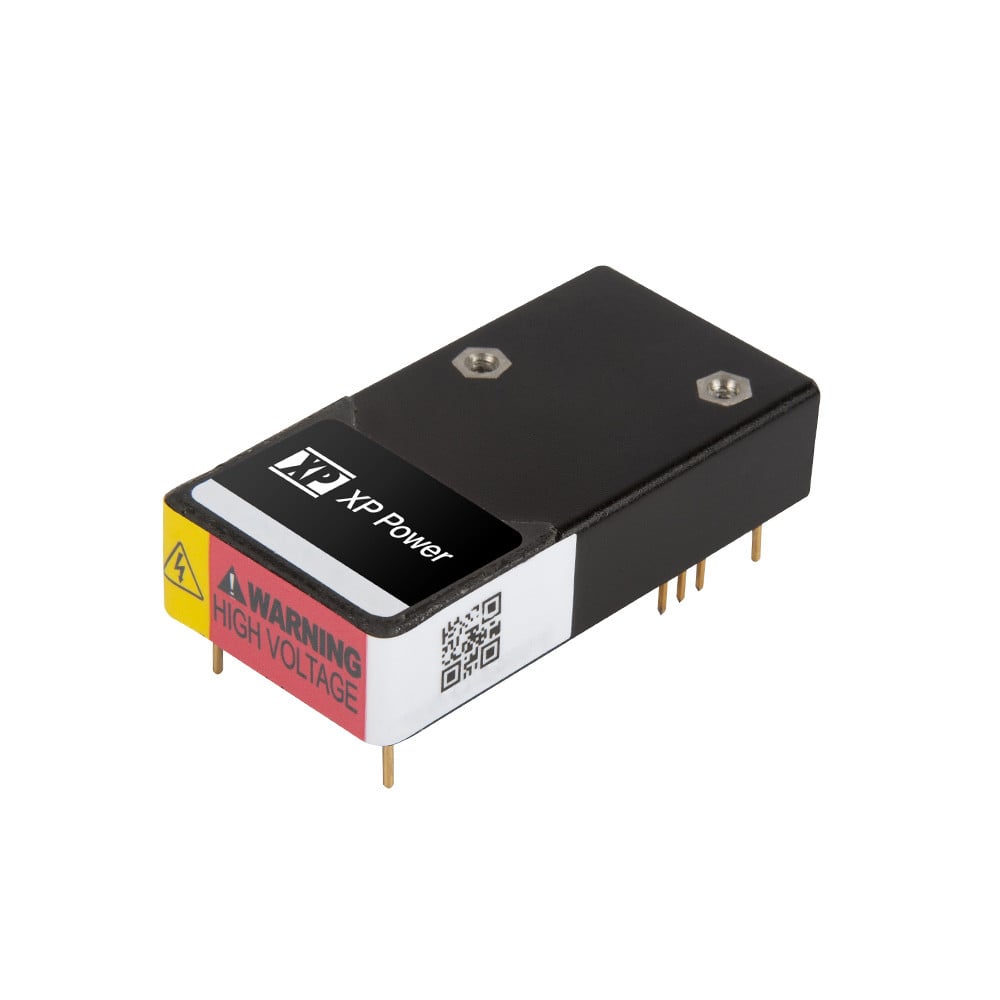

+ Click To Enlarge

10 Watts

  • DC to High Voltage DC Converters
  • Isolated Output Voltage is Proportional to Input Voltage
  • 10W in Compact Package With Smart Features
  • Low Turn On Voltage: <0.7VDC
  • 100V to 6kV Output Voltage
  • Positive or Negative
  • Very Low I/O Leakage Current
  • Reversible Polarity
  • Low Noise, Quasi-Sinewave Resonant Oscillator
  • MTBF>840 Thousand Hours
High Voltage Applications
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
FS02-12 0.7 to 12 Vdc 0 to +200 V / 0.05 A
 10W Request Sample Stock Check
FS02-15 0.7 to 15 Vdc 0 to +200 V / 0.05 A
 10W Request Sample Stock Check
FS02-24 0.7 to 24 Vdc 0 to +200 V / 0.05 A
 10W Request Sample Stock Check
FS02-28 0.7 to 28 Vdc 0 to +200 V / 0.05 A
 10W Request Sample Stock Check
FS03-12 0.7 to 12 Vdc 0 to +300 V / 0.0333 A
 10W Request Sample Stock Check
FS05-12 0.7 to 12 Vdc 0 to +500 V / 0.02 A
 10W Request Sample Stock Check
FS05-15 0.7 to 15 Vdc 0 to +500 V / 0.02 A
 10W Request Sample Stock Check
FS05-24 0.7 to 24 Vdc 0 to +500 V / 0.02 A
 10W Request Sample Stock Check
FS05-28 0.7 to 28 Vdc 0 to +500 V / 0.02 A
 10W Request Sample Stock Check
FS10-12 0.7 to 12 Vdc 0 to 1000 V / 0.01 A
 10W Request Sample Stock Check
FS10-15 0.7 to 15 Vdc 0 to 1000 V / 0.01 A
 10W Request Sample Stock Check
FS10-24 0.7 to 24 Vdc 0 to 1000 V / 0.01 A
 10W Request Sample Stock Check
FS10-28 0.7 to 28 Vdc 0 to 1000 V / 0.01 A
 10W Request Sample Stock Check
FS20-12 0.7 to 12 Vdc 0 to 2000 V / 0.005 A
 10W Request Sample Stock Check
FS20-15 0.7 to 15 Vdc 0 to 2000 V / 0.005 A
 10W Request Sample Stock Check
FS20-24 0.7 to 24 Vdc 0 to 2000 V / 0.005 A
 10W Request Sample Stock Check
FS20-28 0.7 to 28 Vdc 0 to 2000 V / 0.005 A
 10W Request Sample Stock Check
FS30-12 0.7 to 12 Vdc 0 to 3000 V / 0.00333 A
 10W Request Sample Stock Check
FS30-15 0.7 to 15 Vdc 0 to 3000 V / 0.00333 A
 10W Request Sample Stock Check
FS30-24 0.7 to 24 Vdc 0 to 3000 V / 0.00333 A
 10W Request Sample Stock Check
FS30-28 0.7 to 28 Vdc 0 to 3000 V / 0.00333 A
 10W Request Sample Stock Check
FS40-12 0.7 to 12 Vdc 0 to 4000 V / 0.0025 A
 10W Request Sample Stock Check
FS40-15 0.7 to 15 Vdc 0 to 4000 V / 0.0025 A
 10W Request Sample Stock Check
FS40-24 0.7 to 24 Vdc 0 to 4000 V / 0.0025 A
 10W Request Sample Stock Check
FS50N-12 0.7 to 12 Vdc 0 to -5000 V / 0.002 A
 10W Request Sample Stock Check
FS50N-15 0.7 to 15 Vdc 0 to -5000 V / 0.002 A
 10W Request Sample Stock Check
FS50N-24 0.7 to 24 Vdc 0 to -5000 V / 0.002 A
 10W Request Sample Stock Check
FS50N-28 0.7 to 28 Vdc 0 to -5000 V / 0.002 A
 10W Request Sample Stock Check
FS50P-12 0.7 to 12 Vdc 0 to +5000 V / 0.002 A
 10W Request Sample Stock Check
FS50P-15 0.7 to 15 Vdc 0 to +5000 V / 0.002 A
 10W Request Sample Stock Check
FS50P-24 0.7 to 24 Vdc 0 to +5000 V / 0.002 A
 10W Request Sample Stock Check
FS50P-28 0.7 to 28 Vdc 0 to +5000 V / 0.002 A
 10W Request Sample Stock Check
FS60N-12 0.7 to 12 Vdc 0 to -6000 V / 0.00167 A
 10W Request Sample Stock Check
FS60N-15 0.7 to 15 Vdc 0 to -6000 V / 0.00167 A
 10W Request Sample Stock Check
FS60N-24 0.7 to 24 Vdc 0 to -6000 V / 0.00167 A
 10W Request Sample Stock Check
FS60N-28 0.7 to 28 Vdc 0 to -6000 V / 0.00167 A
 10W Request Sample Stock Check
FS60P-12 0.7 to 12 Vdc 0 to +6000 V / 0.00167 A
 10W Request Sample Stock Check
FS60P-15 0.7 to 15 Vdc 0 to +6000 V / 0.00167 A
 10W Request Sample Stock Check
FS60P-24 0.7 to 24 Vdc 0 to +6000 V / 0.00167 A
 10W Request Sample Stock Check
FS60P-28 0.7 to 28 Vdc 0 to +6000 V / 0.00167 A
 10W Request Sample Stock Check
FS02CT-12 0.7 to 12 Vdc 0 to +100 V / 0.05 A
0 to -100 V / 0.05 A
 10W Request Sample Stock Check
FS02CT-12B 0.7 to 12 Vdc 0 to +100 V / 0.05 A
0 to -100 V / 0.05 A
 10W Request Sample Stock Check
FS02CT-15 o.7 to 15 Vdc 0 to +100 V / 0.05 A
0 to -100 V / 0.05 A
 10W Request Sample Stock Check
FS02CT-24 0 to 24 Vdc 0 to +100 V / 0.05 A
0 to -100 V / 0.05 A
 10W Request Sample Stock Check
FS02CT-24B 0.7 to 24 Vdc 0 to +100 V / 0.05 A
0 to -100 V / 0.05 A
 10W Request Sample Stock Check
FS02CT-28 0.7 to 28 Vdc 0 to +100 V / 0.05 A
0 to -100 V / 0.05 A
 10W Request Sample Stock Check
FS03CT-12 0.7 to 12 Vdc 0 to +150 V / 0.0333 A
0 to -150 V / 0.0333 A
 10W Request Sample Stock Check
FS03CT-15 0.7 to 15 Vdc 0 to +150 V / 0.0333 A
0 to -150 V / 0.0333 A
 10W Request Sample Stock Check
FS05CT-12 0.7 to 12 Vdc 0 to +250 V / 0.02 A
0 to -250 V / 0.02 A
 10W Request Sample Stock Check
FS05CT-15 0.7 to 15 Vdc 0 to +250 V / 0.02 A
0 to -250 V / 0.02 A
 10W Request Sample Stock Check
FS05CT-24 0.7 to 24 Vdc 0 to +250 V / 0.02 A
0 to -250 V / 0.02 A
 10W Request Sample Stock Check
FS05CT-24B 0.7 to 24 Vdc 0 to +250 V / 0.02 A
0 to -250 V / 0.02 A
 10W Request Sample Stock Check
FS05CT-28 0.7 to 28 Vdc 0 to +250 V / 0.02 A
0 to -250 V / 0.02 A
 10W Request Sample Stock Check
FS20CT-12 0.7 to 12 Vdc 0 to +1000 V / 0.005 A
0 to -1000 V / 0.005 A
 10W Request Sample Stock Check
FS20CT-15 0.7 to 15 Vdc 0 to +1000 V / 0.005 A
0 to -1000 V / 0.005 A
 10W Request Sample Stock Check
FS20CT-24 0.7 to 24 Vdc 0 to +1000 V / 0.005 A
0 to -1000 V / 0.005 A
 10W Request Sample Stock Check
FS20CT-28 0.7 to 28 Vdc 0 to +1000 V / 0.005 A
0 to -1000 V / 0.005 A
 10W Request Sample Stock Check
FS30CT-12 0.7 to 12 Vdc 0 to +1500 V / 0.00333 A
0 to -1500 V / 0.00333 A
 10W Request Sample Stock Check
FS30CT-15 0.7 to 15 Vdc 0 to +1500 V / 0.00333 A
0 to -1500 V / 0.00333 A
 10W Request Sample Stock Check
FS30CT-24 0.7 to 24 Vdc 0 to +1500 V / 0.00333 A
0 to -1500 V / 0.00333 A
 10W Request Sample Stock Check
FS30CT-28 0.7 to 28 Vdc 0 to +1500 V / 0.00333 A
0 to -1500 V / 0.00333 A
 10W Request Sample Stock Check
FS40CT-12 0.7 to 12 Vdc 0 to +2000 V / 0.0025 A
0 to -2000 V / 0.0025 A
 10W Request Sample Stock Check
FS40CT-15 0.7 to 15 Vdc 0 to +2000 V / 0.0025 A
0 to -2000 V / 0.0025 A
 10W Request Sample Stock Check
FS40CT-24 0.7 to 24 Vdc 0 to +2000 V / 0.0025 A
0 to -2000 V / 0.0025 A
 10W Request Sample Stock Check
FS40CT-28 0.7 to 28 Vdc 0 to +2000 V / 0.0025 A
0 to -2000 V / 0.0025 A
 10W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    FS: 2.25 x 1.12 x 0.50 in (57.15 x 28.50 x 12.70 mm)
  • Input Voltage:
    12 VDC, 15 VDC, 24 VDC and 28 VDC
  • Operating Temp:
    -25°C to +75°C Standard  (-55°C to 85°C Extended)
  • Isolation:
    Input to Output Galvanic Isolation < ± 2.5kV BIAS on pin 4
