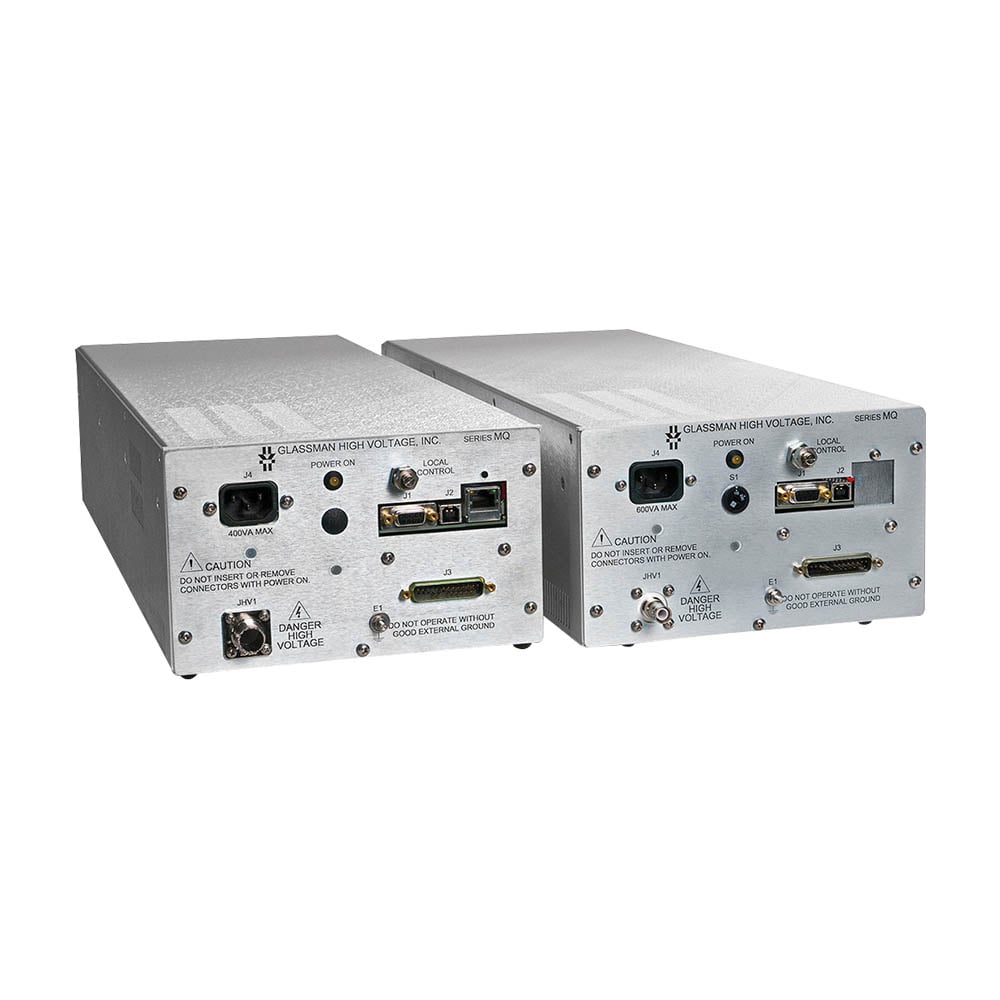

MQ Series

300W regulated high voltage AC-DC power supplies with outputs from 0 - 1kVDC to 0 - 60kVDC

The MQ Series is a family of sophisticated, medium power, high voltage power supplies that complies with current international safety and EMI directives.

These 300 Watt high voltage supplies feature flexible embedded controls with low ripple and noise, they are air insulated, fast response units, with tight regulation and extremely low arc discharge currents.

Packaged as a space saving module to avoid the expense of front panels and displays, with no compromise in performance and/or operating features. The result is a power supply that offers outstanding value for a wide range of demanding applications.

Features

  • 0-1kV through 0-60kV
  • Compact module
  • RS232, USB, & optional Ethernet control
  • Constant voltage/constant current operation
  • Arc quench & arc count
  • Tight regulation
  • Low ripple
  • Air insulated
  • 3 year warranty
Image Model Name Power Output Voltage Input Voltage Package Size Datasheet RFQ
MQ01N300 300 W 0 to 1 kV Single Phase Compact Module Datasheet RFQ
MQ01P300 300 W 0 to 1 kV Single Phase Compact Module Datasheet RFQ
MQ02N150 300 W 0 to 2 kV Single Phase Compact Module Datasheet RFQ
MQ02P150 300 W 0 to 2 kV Single Phase Compact Module Datasheet RFQ
MQ03N100 300 W 0 to 3 kV Single Phase Compact Module Datasheet RFQ
MQ03P100 300 W 0 to 3 kV Single Phase Compact Module Datasheet RFQ
MQ05N60.0 300 W 0 to 5 kV Single Phase Compact Module Datasheet RFQ
MQ05P60.0 300 W 0 to 5 kV Single Phase Compact Module Datasheet RFQ
MQ06N50.0 300 W 0 to 6 kV Single Phase Compact Module Datasheet RFQ
MQ06P50.0 300 W 0 to 6 kV Single Phase Compact Module Datasheet RFQ
MQ08N37.0 300 W 0 to 8 kV Single Phase Compact Module Datasheet RFQ
MQ08P37.0 300 W 0 to 8 kV Single Phase Compact Module Datasheet RFQ
MQ1.5N200 300 W 0 to 1.5 kV Single Phase Compact Module Datasheet RFQ
MQ1.5P200 300 W 0 to 1.5 kV Single Phase Compact Module Datasheet RFQ
MQ10N30.0 300 W 0 to 10 kV Single Phase Compact Module Datasheet RFQ
MQ10P30.0 300 W 0 to 10 kV Single Phase Compact Module Datasheet RFQ
MQ12N25.0 300 W 0 to 12 kV Single Phase Compact Module Datasheet RFQ
MQ12P25.0 300 W 0 to 12 kV Single Phase Compact Module Datasheet RFQ
MQ15N20.0 300 W 0 to 15 kV Single Phase Compact Module Datasheet RFQ
MQ15P20.0 300 W 0 to 15 kV Single Phase Compact Module Datasheet RFQ
MQ20N15.0 300 W 0 to 20 kV Single Phase Compact Module Datasheet RFQ
MQ20P15.0 300 W 0 to 20 kV Single Phase Compact Module Datasheet RFQ
MQ25N12.0 300 W 0 to 25 kV Single Phase Compact Module Datasheet RFQ
MQ25P12.0 300 W 0 to 25 kV Single Phase Compact Module Datasheet RFQ
MQ30N10.0 300 W 0 to 30 kV Single Phase Compact Module Datasheet RFQ
MQ30P10.0 300 W 0 to 30 kV Single Phase Compact Module Datasheet RFQ
MQ40N07.5 300 W 0 to 40 kV Single Phase Compact Module Datasheet RFQ
MQ40P07.5 300 W 0 to 40 kV Single Phase Compact Module Datasheet RFQ
MQ50N06.0 300 W 0 to 50 kV Single Phase Compact Module Datasheet RFQ
MQ50P06.0 300 W 0 to 50 kV Single Phase Compact Module Datasheet RFQ
MQ60N05.0 300 W 0 to 60 kV Single Phase Compact Module Datasheet RFQ
MQ60P05.0 300 W 0 to 60 kV Single Phase Compact Module Datasheet RFQ
