AC-DC Power Supplies
VCE40 Series
Low cost, PCB mount, 40W encapsulated and open frame, wide input AC-DC power supplies

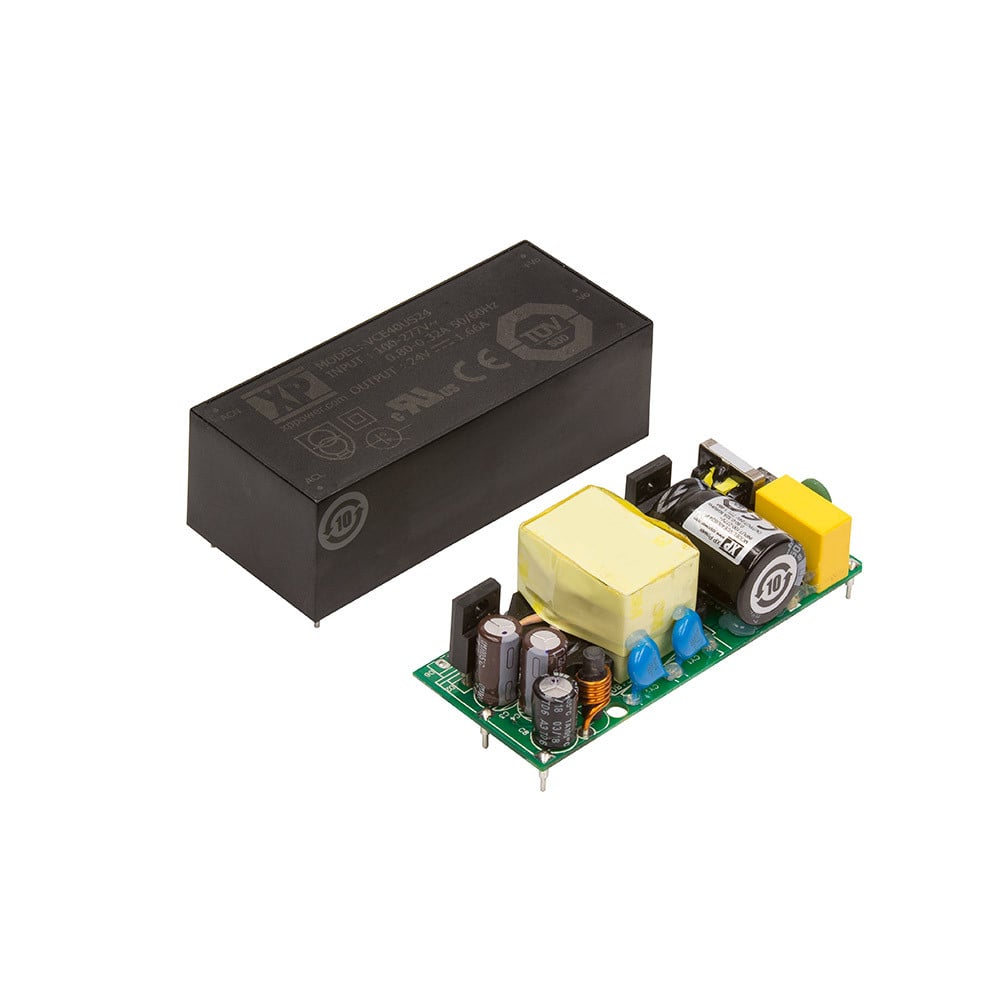

40W version of low cost green power AC-DC power supplies, with approvals to world-wide safety standards including ITE and household, the VCE40 are available for PCB mounting as encapsulated or open frame (with suffix -P). Their compact design features an integral EMC filter and hold-up capacitor, so no external components are required.
The VCE40 provides a cost-effective, PCB mount, single component, AC-DC power supply solution for Internet of Things (IoT) including home automation, heating & lighting control, smart metering, set-top box & multiple industrial applications.
datasheet Contact usFeatures
- Regulated single outputs from 3.3V to 48VDC
- Wide input range 85 to 305VAC
- Encapsulated or open frame PCB mount
- ITE & household appliance approvals
- EN55035 immunity standard
- Class II operation
- No load input power <0.3W
- Low Cost
- -25°C to +70°C operating temperature
- 3 Year Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
VCE40US03 | 40 W | Single Phase | 3.3V | 9.1A |
|
|
|
|
|
VCE40US05 | 40 W | Single Phase | 5V | 8A |
|
|
|
|
|
VCE40US09 | 40 W | Single Phase | 9V | 4.44A |
|
|
|
|
|
VCE40US12 | 40 W | Single Phase | 12V | 3.33A |
|
|
|
|
|
VCE40US15 | 40 W | Single Phase | 15V | 2.66A |
|
|
|
|
|
VCE40US24 | 40 W | Single Phase | 24V | 1.66A |
|
|
|
|
|
VCE40US48 | 40 W | Single Phase | 48V | 0.82A |
|
|
|
|
|
VCE40US03-P | 40 W | Single Phase | 3.3V | 9.1A |
|
|
|
|
|
VCE40US05-P | 40 W | Single Phase | 5V | 8A |
|
|
|
|
|
VCE40US09-P | 40 W | Single Phase | 9V | 4.44A |
|
|
|
|
|
VCE40US12-P | 40 W | Single Phase | 12V | 3.33A |
|
|
|
|
|
VCE40US15-P | 40 W | Single Phase | 15V | 2.66A |
|
|
|
|
|
VCE40US24-P | 40 W | Single Phase | 24V | 1.66A |
|
|
|
|
|
VCE40US48-P | 40 W | Single Phase | 48V | 0.82A |
|
|
|
Specifications
Input Voltage
85 to 305VAC. Derate output from 100% at 90 VAC to 90% at 85 VAC
No Load Input Power
0.3W
Harmonic Currents
EN61000-3-2 Class A
Efficiency
85% typical
Operating Temperature
-25 +70 °C. 3V3 & 5V models: derate output linearly from 100% at +45 °C to 45% at +70 °C. Other models: derate output linearly from 100% at 50 °C to 50% at 70 °C.
Isolation
Input to Output: 3000VAC
Worldwide Safety Approvals
IEC60950-1, IEC62368-1, IEC60335-1
European Safety Approvals
EN62368-1
US Safety Approvals
UL62368-1
Other Safety Approvals
CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
EMC
EN55032 Class B conducted & radiated
