THE HP SERIES
COMPACT, FLEXIBLE, 3 PHASE INPUT, HIGH POWER SOLUTIONS
Mitigate the challenges of designing high power solutions into your applications with our HP Series of adaptable, compact, and efficient products. Optimal space-saving designs with digital signal processing, multiple communication protocols, development tools, full user configurable functionality, and scalability from 3kW to 30kW and beyond enables flexible, reliable, easy integration across multiple platforms.
Have a High Power Question?HIGHLY EFFICIENT, SCALABLE AND PROGRAMMABLE POWER SUPPLIES
Reduce your development time & cost
Integrating your product’s high power DC supply can be time consuming, costly and a drain on resources for your product’s functional development: minimize these with XP Power’s HP Series.
Their 3kW to 30kW and beyond scalability means you can deploy modules of appropriate power in your product – then their flexibility lets you tailor, configure and optimize for the particular load, whether constant voltage, constant current, or both. Program the required output voltage and current, and define signals, controls, and alarms to suit your application.
Our GUI development tool supports an array of user defined options & controls which can become your individual factory-flashed firmware options for delivery of application specific configurations, out of the box.
Integration is eased by the compact, efficient HPT, HPT-L and HPL form factors supporting wide range, low line & high line requirements and simplified interconnections for high power systems. HPL supports higher power 180 – 264 VAC applications, while HPT & HPT-L operate from a wide range 180 VAC – 528 VAC input.
Ease of integration across multiple platforms
Offering wide compatibility and simplified customer deployment
- Standard building block for power systems 3kW to 30kW and beyond
- No neutral required for 3 phase AC supply
- Constant voltage and constant current operation
- Simplified interconnections for high power systems
- Analog & digital Interfaces
- High power density in space saving design
- Ultra-fast slew rates down to 40ms
- User defined signals, controls & alarms
- Customer specific factory flashed firmware options
- Development tools; GUI and manuals for customer development
Need a highly adaptable and compact high power solution?
Speak with our team of power solution experts today!
We recognize your needs for high power, high efficiency and programable drop-in power supply modules.
Contact us for technical support, the latest product samples, up to date pricing and global shipping details.
Making High Power Flexible
Programmability enables rapid, agile responses to changing demands
Do your customers need to make costly electrical upgrades to accommodate your products’ input voltage range or neutral line requirements?
Our flexible, 3 phase, high power HPT and HPL solutions eliminate this problem, with their 3 wire plus Earth and wide 180 to 528 VAC input range ensuring global compatibility with no neutral line required.
The HP series meets your high power needs reliably, without the need for costly building wiring upgrades, assuring compatibility and simplified customer deployment.
Does your high power LED application need additional external controls to support accurate current control?
Our HP series DSP platform, with its dynamic, programmable constant current output via digital bus or analog control, negates the need for the additional cost and space associated with a constant current LED drive control stage in your system.
The HP series can be configured for output voltage requirements up to 400V as standard, covering a broad range of string voltages & applications, and is supported by development tools & user defined options to optimize characteristics to high power LED applications.
The compact, flexible, 3 phase input, high power HP series provides high performance solutions for a wide range of applications.
Whether you are powering heaters and motor drives for semifab manufacturing equipment, handling electrolysis applications like chlorination, or driving LEDs for UV curing and other high power applications – or developing solutions for printing, coating, battery charging and simulation and more - our products fulfill your needs for high performance and reliability.
THE HP SERIES OF HIGH POWER SOLUTIONS
Advanced features and user defined controls enabling tailored system integration
The HP Series gives you high power with comprehensive flexibility that enables ease of integration across multiple platforms. It accepts 3-phase inputs from 180-528 VAC, without requiring a neutral connection. Outputs are scalable from 3 kW to 30 kW, with nominal outputs from 48 VDC to 400 VDC.
It is fully configurable through DSP controls for customer specific functionality. Programmable not only in constant voltage (CV) mode, but also in constant current (CC) mode, allowing for accurate and efficient power control.
- 3 phase 3 wire + ground
- High efficiency - up to 93%
- Programmable output voltage (0-105%)
- Programmable output current (0-110%)
- Constant voltage & constant current operation
- User defined signals, controls & alarms
- Parallel and series operation
- Analog & digital interfaces
- Multiple digital protocols - PMBus, CANopen, MODBUS & SCPI
- Fully featured signals & controls
- Graphical user interface (GUI)
- ITE, industrial, and healthcare safety agency approvals
- 3 year warranty
The HPT
- Input 180 – 528 VAC 3 phase 3 wire + ground
- 5kW high line and 3kW at low line input
- 5” by 5” format module configured for high line input providing powerful 5kW output

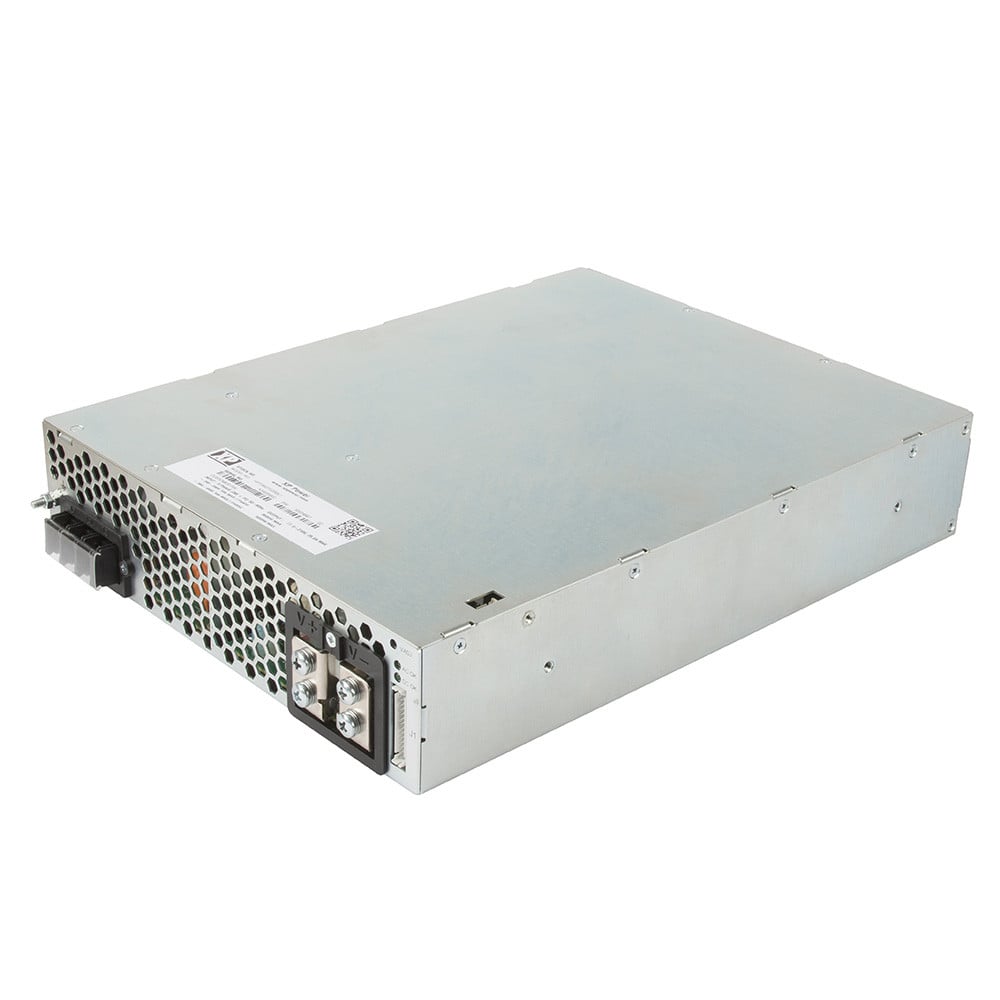

The HPT-L
- Input 180 – 528 VAC 3 phase 3 wire + ground
- 5kW high line and 3kW at low line input
- Convenient 2.5” low profile mechanical platform facilitating series and parallel connections
The HPL
- Input 180 – 264 VAC 3 phase 3 wire + ground
- 5kW output
- Same 5” by 5” format module as the HPT configured for low line input applications
One of our success stories!
Global manufacturer of equipment used in industrial printing approached XP Power for a unified high power solution to resolve costly issues within their UK and US curing applications.
The HPT 5kW DSP controlled power supply was quickly established as the answer. Industry expertise, co-operative development and local technical support as well as the components themselves, was equally essential.
Case StudyULTIMATE PERFORMANCE AND RELIABILITY
In depth high power experience backed by global technical support
XP Power’s high power technology is providing flexible and efficient solutions into a diverse range of applications and industries - with products backed by expertise in adjustment, modification, and complete custom design and manufacture. All units provide total quality, from in-house design in Asia, Europe, and North America through to manufacturing facilities around the world.
- Offering the widest range of power products available from one source
- Unrivaled global technical and customer support
- Vendor consolidation
- 32 sales offices throughout Europe, North America, and Asia
- Experienced design teams to support development
- Flexible and configurable solutions
- Digitally controlled and programmable solutions
For more information or to discuss your specific needs please get in touch with our expert team. We'll be happy to help you.
HPT-L SERIES MODELS & RATINGS
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
HPT5K0TS060-L | 5000 W | Three Phase | 60V | 83.3A |
|
|
|
|
|
HPT5K0TS100-L | 5000 W | Three Phase | 100V | 50A |
|
|
|
|
|
HPT5K0TS200-L | 5000 W | Three Phase | 200V | 25A |
|
|
|
Specifications
Dimensions
13.25 x 10.00 x 2.50” (336.55 x 254.0 x 63.5 mm)
Input Voltage
180-264VAC (3 kW output power max), 342-528VAC (5 kW output power max, 3 wire & earth)
Harmonic Currents
EN61000-3-2, Class A
Efficiency
93% typical
Operating Temperature
-20 to +70°C (derate linearly from 50°C to 50% rated power at 70 °C)
Isolation
Input to Output: 4000VAC (2 x MOPP. Barrier only), Input to Ground: 1500VAC (1 x MOPP), Output to Ground: 500VDC
Worldwide Safety Approvals
IEC62368-1 Ed 2, Information Technology IEC60601-1 Ed 3 Including Risk Management, Medical
European Safety Approvals
EN62368-1, Information Technology EN60601-1/2006, Medical
US Safety Approvals
UL62368-1, CSA 22.2 No.62368-1, UL60950-1, Information Technology
Other Safety Approvals
LVD & RoHS, Class I, Equipment Protection Class: Class I
EMC
EN55011/EN55032 (Class B), EN55011/EN55032 (Class A)
