DC-DC Converters
DTE10 Series

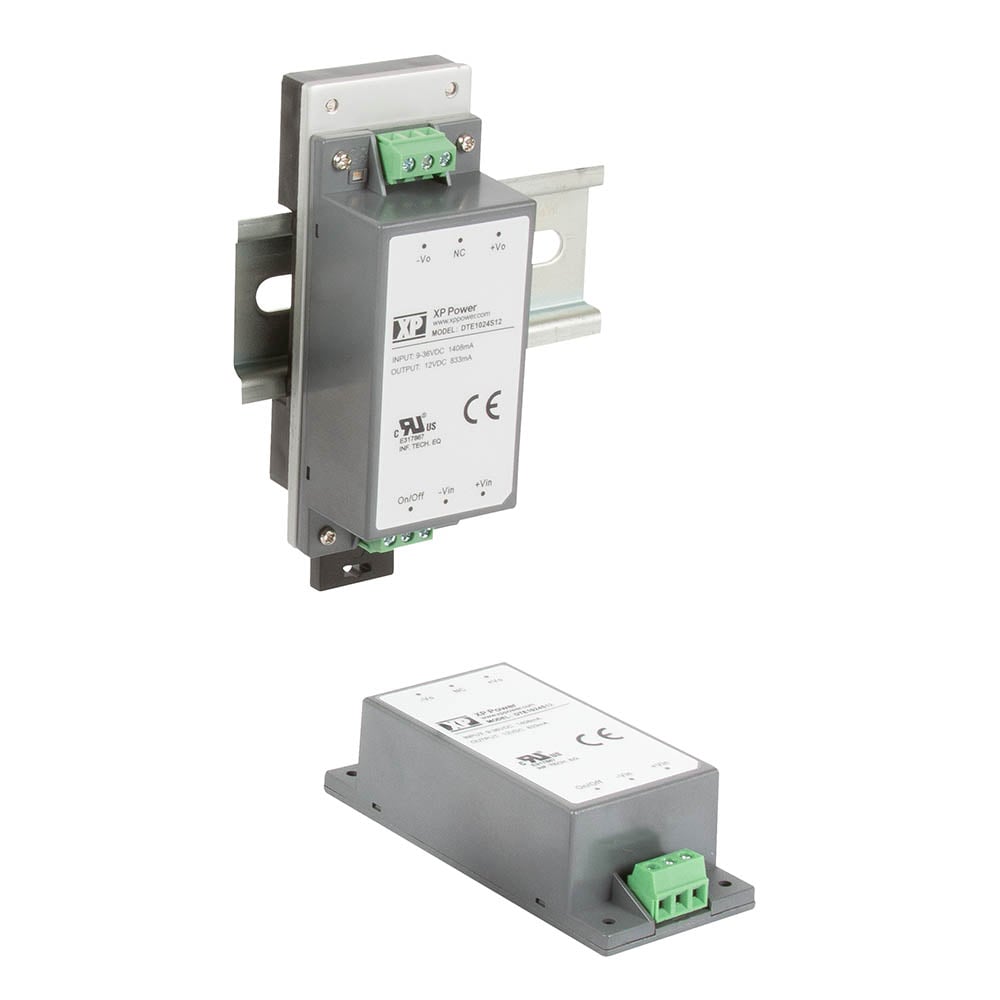

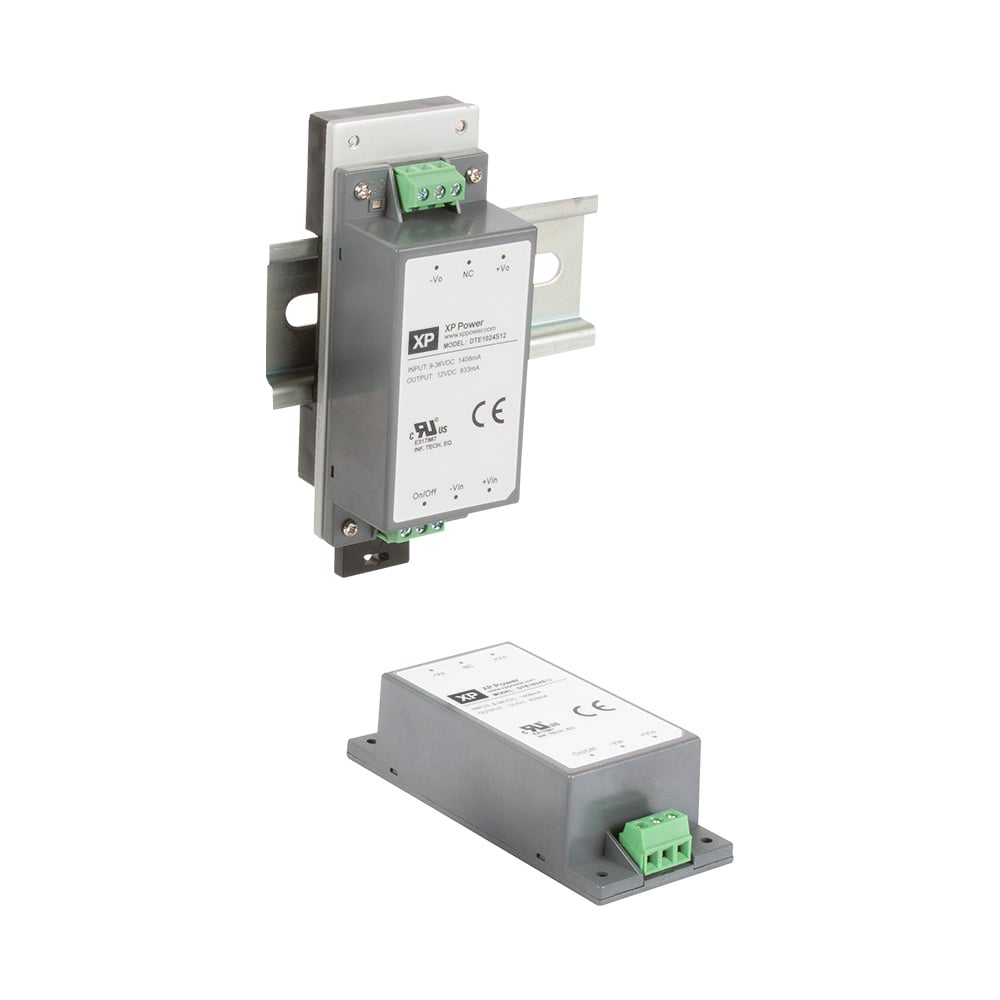

10W 4:1 DC-DC converter in a chassis mount as standard, or DIN rail mount as an option
Available in two wide (4:1) input ranges for nominal 12/24VDC & 24/48VDC, the DTE10 series of encapsulated 10W DC-DC converters are chassis mount as standard or can be ordered with a DIN rail mount.
They have screw terminals for ease of connection and an LED provides clear ‘power good’ indication. Remote On/Off is standard and when inhibited the standby current is just 2.5mA. Isolation is 3kVDC input/output providing excellent separation between supply and load. The modules are fully protected against input undervoltage, short circuit and overload conditions.
These features, along with a rugged design and wide operating temperature range make the DTE10 series suitable for a variety of commercial and industrial electronics applications.
datasheet Contact us
Features
- Regulated single & dual outputs
- 4:1 input range
- Single outputs 5.1 to 48VDC
- Dual outputs ±12 to ±24VDC
- Fully encapsulated chassis mount
- DIN rail mount option
- 3.0kVDC isolation
- EN55032 Class A with no external components
- Remote On/Off
- -40°C to +105°C operating temperature
- Full power to +80°C
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
DTE1024S5V1 | 10 W | 9 to 36 VDC | 5.1V | 2A |
|
|
|
|
|
DTE1024S12 | 10 W | 9 to 36 VDC | 12V | 0.833A |
|
|
|
|
|
DTE1024S15 | 10 W | 9 to 36 VDC | 15V | 0.666A |
|
|
|
|
|
DTE1024S24 | 10 W | 9 to 36 VDC | 24V | 0.418A |
|
|
|
|
|
DTE1024S48 | 10 W | 9 to 36 VDC | 48V | 0.208A |
|
|
|
|
|
DTE1024D12 | 10 W | 9 to 36 VDC | 12V, -12V | 0.416A, 0.416A |
|
|
|
|
|
DTE1024D15 | 10 W | 9 to 36 VDC | 15V, -15V | 0.333A, 0.333A |
|
|
|
|
|
DTE1024D24 | 10 W | 9 to 36 VDC | 24V, -24V | 0.208A, 0.208A |
|
|
|
|
|
DTE1048S5V1 | 10 W | 18 to 75 VDC | 5.1V | 2A |
|
|
|
|
|
DTE1048S12 | 10 W | 18 to 75 VDC | 12V | 0.833A |
|
|
|
|
|
DTE1048S15 | 10 W | 18 to 75 VDC | 15V | 0.666A |
|
|
|
|
|
DTE1048S24 | 10 W | 18 to 75 VDC | 24V | 0.418A |
|
|
|
|
|
DTE1048S48 | 10 W | 18 to 75 VDC | 48V | 0.208A |
|
|
|
|
|
DTE1048D12 | 10 W | 18 to 75 VDC | 12V, -12V | 0.416A, 0.416A |
|
|
|
|
|
DTE1048D15 | 10 W | 18 to 75 VDC | 15V, -15V | 0.333A, 0.333A |
|
|
|
|
|
DTE1048D24 | 10 W | 18 to 75 VDC | 24V, -24V | 0.208A, 0.208A |
|
|
|
Specifications
Dimensions
DTE10: 3.11 x 1.34 x 0.87‚ (79.0 x 34.0 x 22.0 mm)
Input Voltage
24V (9-36V) 48V (18-75V)
Efficiency
86% (see datasheet)
Operating Temperature
-40 °C to +105 °C (see datasheet)
Isolation
3000VDC for 60s functional
Worldwide Safety Approvals
IEC62368-1
US Safety Approvals
CAN/CSA-C22.2 No. 62368-1, UL62368-1
Other Safety Approvals
CE & UKCA meets all applicable directives & legislation
EMC
Conducted & Radiated: EN55032, Class A
