DTE06 Series

DC-DC Converters

DTE06 Series

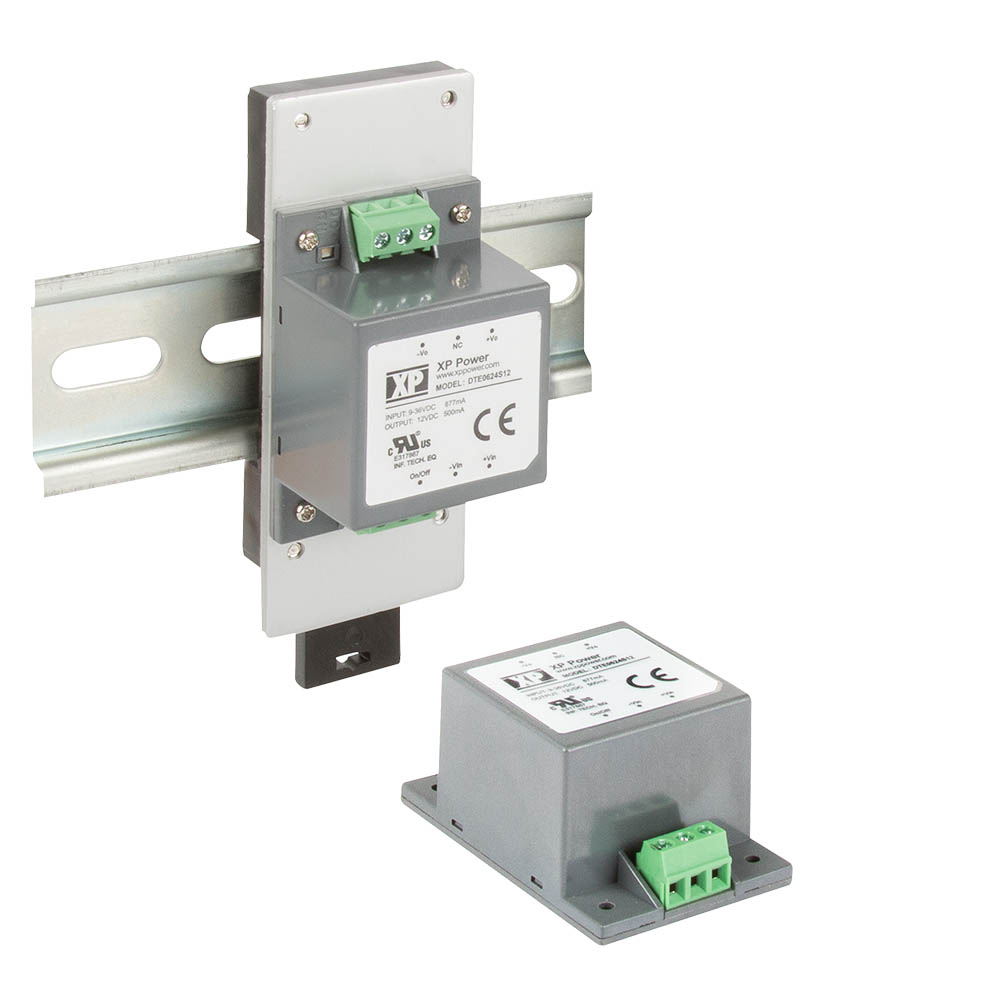

6W 4:1 DC-DC converter in a chassis mount as standard, or DIN rail mount as an option

Available in two wide (4:1) input ranges for nominal 12/24VDC & 24/48VDC, the DTE06 series of encapsulated 6W DC-DC converters are chassis mount as standard or can be ordered with a DIN rail mount.

They have screw terminals for ease of connection and an LED provides clear ‘power good’ indication. Remote On/Off is standard and when inhibited the standby current is just 2.5mA. Isolation is 3kVDC input/output providing excellent separation between supply and load. The modules are fully protected against input undervoltage, short circuit and overload conditions.

These features, along with a rugged design and wide operating temperature range make the DTE06 series suitable for a variety of commercial and industrial electronics applications.



datasheet Contact us

Features

  • Regulated single & dual outputs
  • 4:1 input range
  • Single outputs 5.1 to 48VDC
  • Dual outputs ±12 to ±24VDC
  • Fully encapsulated chassis mount
  • DIN rail mount option
  • 3.0kVDC isolation
  • EN55032 Class A with no external components
  • Remote On/Off
  • -40°C to +105°C operating temperature
  • Full power to +80°C
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
DTE06 DTE0624S5V1 6 W 9 to 36 VDC 5.1V 1.2A
DTE06 DTE0624S12 6 W 9 to 36 VDC 12V 0.5A
DTE06 DTE0624S15 6 W 9 to 36 VDC 15V 0.4A
DTE06 DTE0624S24 6 W 9 to 36 VDC 24V 0.25A
DTE06 DTE0624S48 6 W 9 to 36 VDC 48V 0.125A
DTE06 DTE0624D12 6 W 9 to 36 VDC 12V, -12V 0.25A, 0.25A
DTE06 DTE0624D15 6 W 9 to 36 VDC 15V, -15V 0.2A, 0.2A
DTE06 DTE0624D24 6 W 9 to 36 VDC 24V, -24V 0.125A, 0.125A
DTE06 DTE0648S5V1 6 W 18 to 72 VDC 5.1V 1.2A
DTE06 DTE0648S12 6 W 18 to 72 VDC 12V 0.5A
DTE06 DTE0648S15 6 W 18 to 72 VDC 15V 0.4A
DTE06 DTE0648S24 6 W 18 to 72 VDC 24V 0.25A
DTE06 DTE0648S48 6 W 18 to 72 VDC 48V 0.125A
DTE06 DTE0648D12 6 W 18 to 72 VDC 12V, -12V 0.25A, 0.25A
DTE06 DTE0648D15 6 W 18 to 72 VDC 15V, -15V 0.2A, 0.2A
DTE06 DTE0648D24 6 W 18 to 72 VDC 24V, -24V 0.125A, 0.125A

Specifications


Dimensions

DTE06: 2.09 x 1.34 x 1.04‚ (53.0 x 34.0 x 26.5 mm)

Input Voltage

12V & 24V nominal: 50VDC 24V &‚ 48V nominal: 100VDC

Efficiency

83% (see datasheet)

Operating Temperature

-40 to +105 °C (see datasheet)

Isolation

3000VDC for 60s functional

Worldwide Safety Approvals

IEC62368-1

US Safety Approvals

CAN/CSA-C22.2 No. 62368-1, UL62368-1

Other Safety Approvals

CE & UKCA meets all applicable directives & legislation

EMC

Conducted & Radiated: EN55032, Level A

3D models
