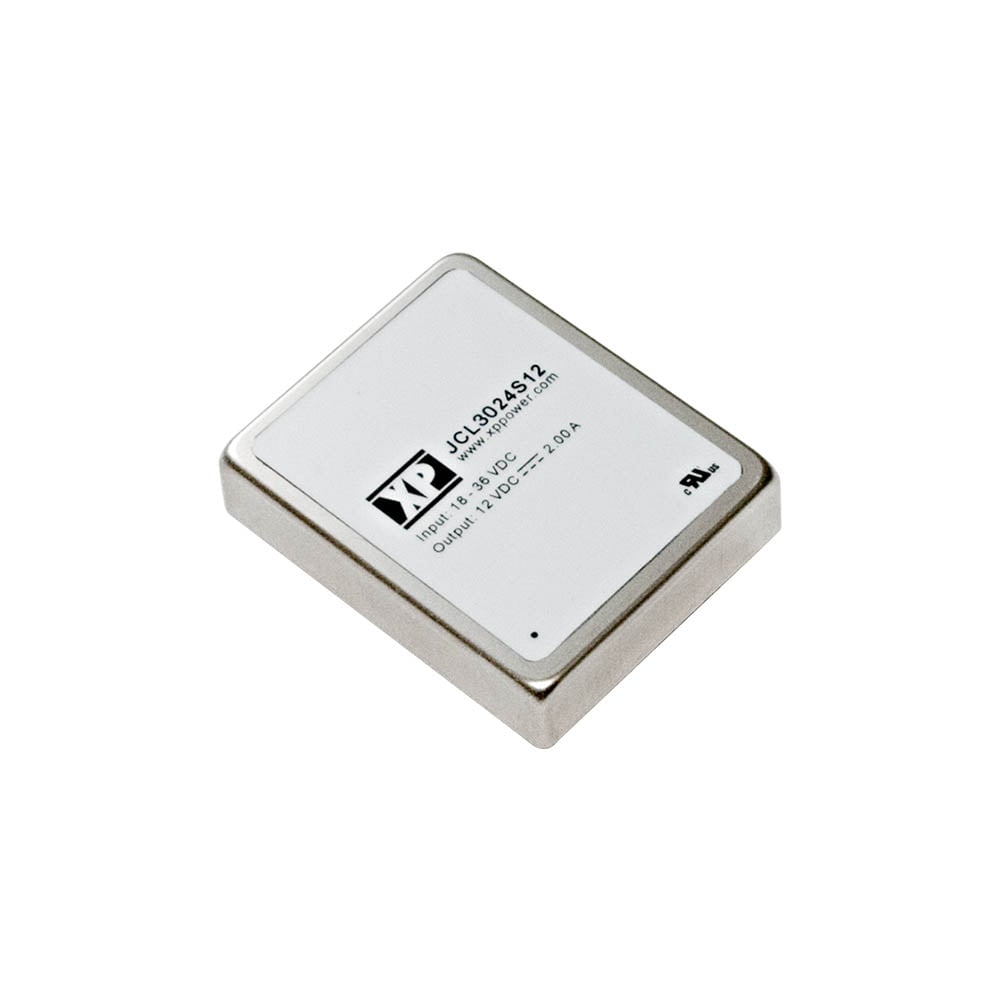

JCL25
- 2:1 Input Range
- High Efficiency up to 90%
- -40 °C to +100 °C Operating Temperature
- Fixed 300 kHz Switching Frequency
- Regulated Single Outputs
- Continuous Short Circuit Protection
- Six -sided Metal Case or Open Frame
ISV02
- Regulated single & dual outputs
- Wide 4:1 input range
- Single outputs 5.0 to 15VDC
- Dual outputs ±12 & ±15VDC
- SMD12 package
- 3.0kV isolation
- Class A conducted emissions
- Tape & reel option
- -40°C to +75°C operating temperature
- Full power to +75°C
- 3 year warranty
ISD02
- Unregulated single & dual outputs
- ±10% input range
- Single outputs 3.3 & 5.0VDC
- Dual outputs ±3.3 & ±5.0VDC
- Ultra compact SMD8 & SMD10 packages
- 4.2kVDC functional isolation
- 250VAC/400VDC working voltage
- Class B conducted emissions (with minimal additional components)
- Remote On/Off
- Tape & reel option
- Operating temperature -40°C to +105°C
- Full load to +85°C
- MTBF >6.5Mhrs
- 3 year warranty
ISD01
- Unregulated single & dual outputs
- ±10% input range
- Single outputs 3.3 & 5.0VDC
- Dual outputs ±3.3 & ±5.0VDC
- Ultra compact SMD8 & SMD10 packages
- 4.2kVDC functional isolation
- 250VAC/400VDC working voltage
- Class B conducted emissions (with minimal additional components)
- Tape & reel option
- Operating temperature -40°C to +105°C
- Full load to +100°C
- MTBF >7.2Mhrs
- 3 year warranty
HPD4K5
- 4.5kW fan cooled
- 3 phase input 180 to 264VAC - 3 wire & earth
- Nominal output voltages 25/50/75/150VDC
- Controllable output voltage
- <40ms slew rate
- High efficiency, up to 90%
- Intelligent fan speed control
- Fully featured signals & controls
- I²C interface
- SEMI F47 compliant
- 5VDC/1A standby
- 0°C to +70°C operating temperature
- Full power to +50°C
- 3 year warranty
DSL240
- Slim design
- 150% peak load for 3 seconds
- High Eefficiency – up to 93%
- Hazardous locations approval
- Parallel capability
- Full power from -40°C to +60°C
- 3 year warranty
DSF
- Up to 500W baseplate cooled
- Up to 28A output current
- Active surge protection & EMC filter (DSF100 & DSF200LV)
- Active surge protection (DSF500) & EMC filter (FSO461)
- Output voltage tracks input voltage & clamps >36VDC
- Input range 10V to 33VDC (DSF)
- Input range 0 to 100VDC (FSO)
- Input transient ±250V for 70µs 2J
- Overtemperature protection
- Remote inhibit
- MIL-STD-1275A MIL-STD-461 immunity
- MIL-STD-704A DEF-STAN-61-5 Part 6 Issue 6 immunity
- MIL-STD-461 & DEF-STAN-59-411 EMC emissions
- MIL-STD-810G shock & vibration
- -40°C to +100°C operating temperature (baseplate)
- 3 year warranty
IFH200
- 2:1 & 4:1 Input Ranges
- Efficiency up to 90%
- Single Output
- 40 °C to +100 °C Operating Temperature
- Continuous Short Circuit Protection
- Fivesided Metal Case
- 3 Year Warranty
WU
- 4:1 Input Range
- Isolated Outputs
- Efficiency to 84%
- Overvoltage Protection
- Input Pi Filter
- Short Circuit Protected
- Fully Regulated Outputs

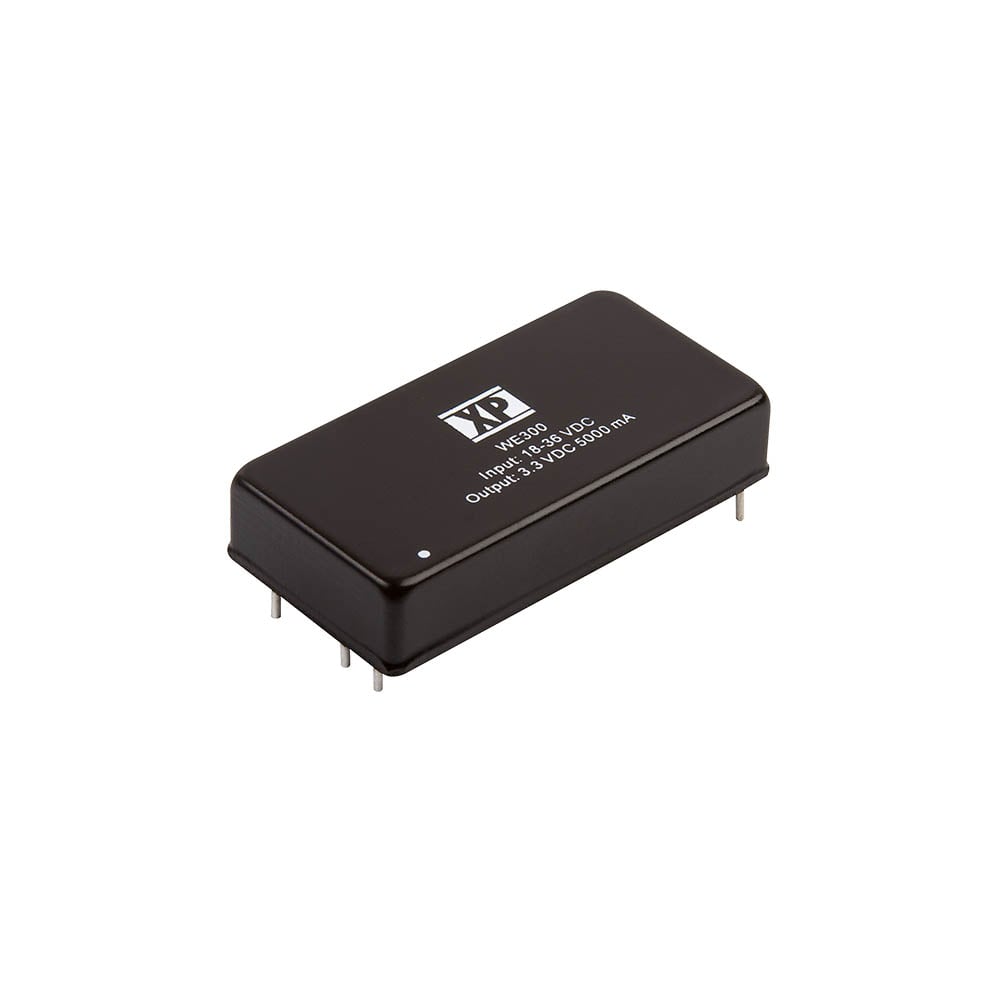

WE
- High Power Density
- Fully Regulated Outputs
- Efficiency to 86%
- Low Voltage Outputs
- Remote On/Off
- 2:1 Input Range
- 2.5, 3.3 & 5 V Versions
