RDH600
- Regulated single outputs 12V to 48VDC
- Baseplate cooled full brick package
- 4:1 input range 43V to 160VDC
- 72 & 110VDC nominal inputs for rail applications
- Output trim 60-110%
- 3kVDC isolation
- Complies with EN50155
- Meets EN50121-3-2
- Remote On/Off & remote sense
- -40°C to +100°C operation
- 3 year warranty
RDH300
- Regulated single outputs 5V to 48VDC
- Baseplate cooled half brick package
- 4:1 input range 43V to 160VDC
- 72 & 110VDC nominal inputs for railway applications
- Output trim ±10%
- 3kVDC isolation
- Complies with EN50155
- Meets EN50121-3-2
- Remote On/Off & remote sense
- -40°C to +100°C operation
- 3 year warranty
RDF50
- Regulated single outputs 5V to 48VDC
- Baseplate cooled ¼ brick
- Ultra wide 12:1 input range 14 to 160VDC
- 3kVDC isolation
- Output trim -20/+10%
- Remote On/Off & remote sense
- Complies with EN50155
- Meets EN50121-3-2
- -40°C to +100°C operation
- 3 year warranty
RDF25
Regulated single outputs 5V to 24VDC
Covers all nominal inputs from 24 to 110VDC for railway applications
Wide 10:1 input range
50.8 x 25.4 mm (2” x 1”) footprint, 11.5mm profile
Output voltage trim ±10%
3kVDC isolation
High efficiency
EN50155 certified for railway applications
EN50121-3-2 with external components
Remote On/Off
Operating temperature -40°C to +100°C
Full power to +55°C
3 year warranty
RCQ75
- Regulated single output
- Baseplate-cooled ¼ brick package
- Input ranges 43V to 101V & 66V to 160VDC
- 72V & 110VDC nominal inputs for railway applications
- 3kVAC isolation
- Remote On/Off & remote sense
- Complies with EN50155 and IEC60571
- Meets EMC standard EN50121-3-2
- Optional heatsink
- Operating temperature -40°C to +105°C
- 3 year warranty

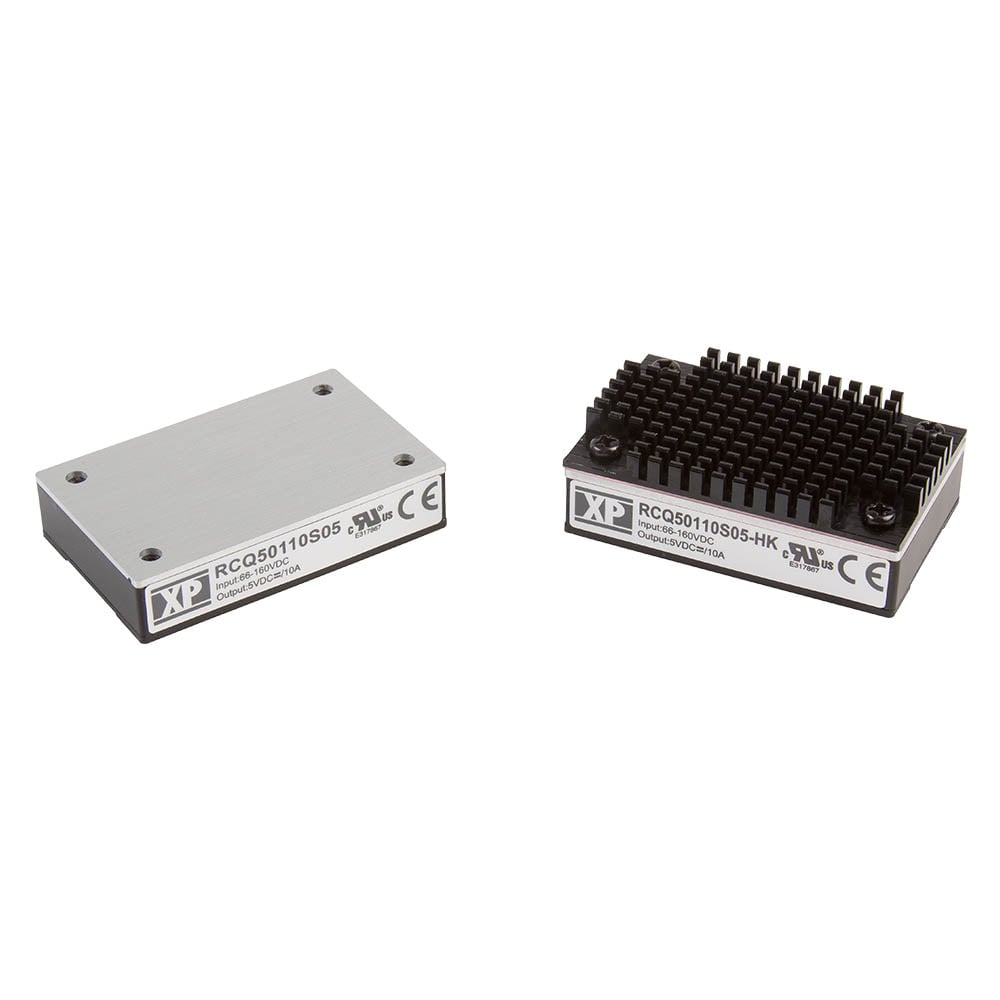

RCQ50
- Regulated single outputs 5V to 24VDC
- Baseplate cooled ¼ brick package
- Input ranges 43V to 101V & 66V to 160VDC
- 72V & 110VDC nominal inputs for railway applications
- 3kVAC isolation
- Remote On/Off & remote sense
- Complies with EN50155 and IEC60571
- Meets EMC standard EN50121-3-2
- Optional heatsink
- Operating temperature -40°C to +105°C
- 3 year warranty
AKM36
- Regulated single outputs 9V to 36VDC
- Energy efficiency level VI
- European CoC tier 2
- Medical & ITE approvals
- Class II
- Optional white versions
- 3 year warranty
AEM
- CEC 2008 & EISA 2007 Compliant 12 V
- Worldwide Medical Approvals
- 4000 VAC Isolation
- Class II Construction
- Single Outputs from 5 V to 48 V
- High Efficiency
- 3 Year Warranty
GFR1K5
- 1.5kW high line 1.2kW low line fan cooled
- 299.7 x 101.6 footprint, 143.3mm profile
- Regulated single outputs 12V to 56VDC
- Input range 85 to 264VAC
- 1U blind mate, hotswap, redundancy
- 1U 19" subrack accepts up to 4 x GFR's (6kW)
- 56VDC Power over Ethernet compatible model
- AC OK, DC OK, inhibit, enable, 5VDC standby
- Current share & I²C interface
- 3 year warranty
ACM36
Regulated single outputs 9V to 36VDC
Energy efficiency level VI
European CoC tier 2
Medical & ITE approvals
Interchangeable mains connectors
Optional white versions
Class II construction
3 year warranty
