The HRF15 series delivers high power density with outputs up to 15kVDC in a modular, space-saving design. With low ripple and excellent load and line regulation, the series provides the stability and control that engineers rely on for highly consistent results.
Advanced precision power and control in a compact design for analytical instrumentation:
Current and voltage regulation modes
0 to 100% programmable voltage and current
Voltage and current control and monitoring
Output ripple, line/load regulation as low as 0.001%
Stability 10ppm/hr and 25ppm/8hrs
Temperature coefficient <25ppm/°C
Digital communication via PMBus
Intuitive UI for easy configuration
Black Box reporting for troubleshooting
Compact 162.6 x 72.4 x 33 mm package
UL61010 and UL62368 approved
Arc, short circuit and overload protections

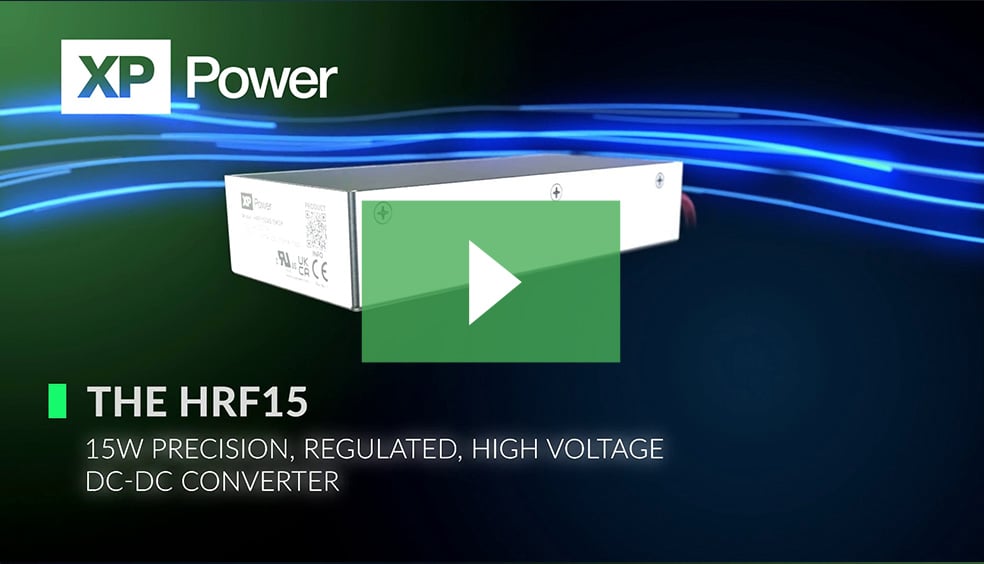

The HRF15 Series: Precision, stability, and minimal noise for demanding high voltage applications.
