Products HIGH VOLTAGE POWER SOLUTIONS HRF15 Series

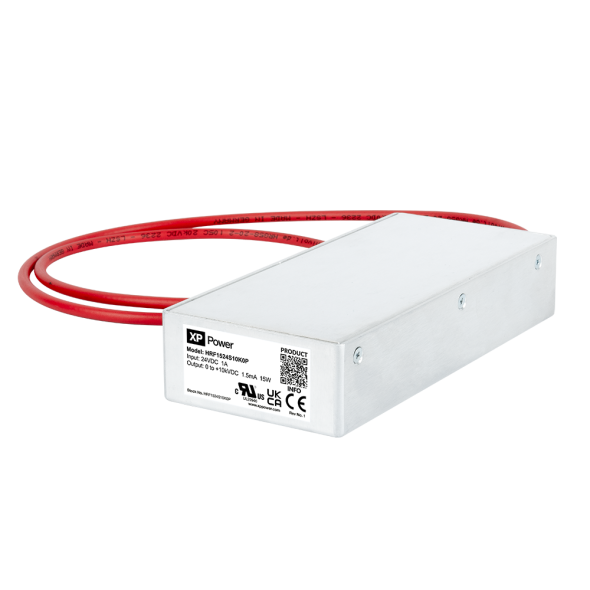

The HRF15 Series

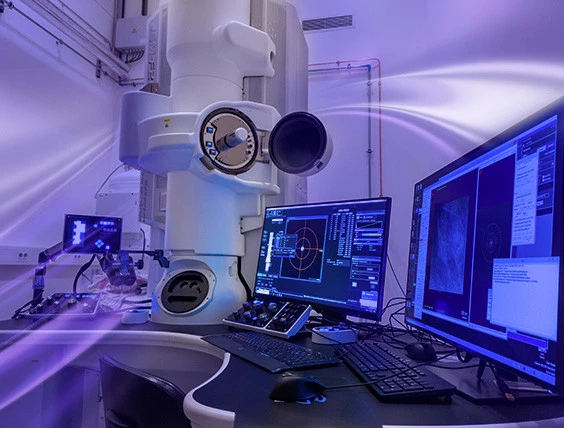

High voltage applications like mass spectrometry and scanning electron microscopes demand precision, stability, and minimal noise. The HRF15 series delivers outputs up to 15kVDC in a modular, space-saving design. With low ripple and excellent load and line regulation, the series provides the stability and control engineers rely on to get highly consistent results.

The HRF15 is also available in a digital version with output voltage and current programming through PMBus via I2C. The digital interface boosts reliability with its intuitive controls and advanced monitoring features.

HAVE A HIGH VOLTAGE QUESTION?

Precise and stable DC-DC high voltage solutions

Extremely low ripple and temperature coefficient

The HRF15 series mitigates noise interference and temperature fluctuations to avoid degrading performance and ensure the accuracy required for critical applications.

Fully adjustable constant current and voltage modes as well as control and monitoring functions provide engineers with unmatched flexibility and reliability.

HRF15 Datasheet

Advanced controls and monitoring for analytical instrumentation

Precision power in a compact design

  • ►Current and voltage regulation modes

  • ►0 to 100% programmable voltage and current

  • ►Voltage and current control and monitoring

  • ►Output ripple, line/load regulation as low as 0.001%

  • ►Stability 10ppm/hr and 25ppm/8hrs

  • ►Temperature coefficient <25ppm/°C

  • ►Digital communication via PMBus (digital version)

  • ►Intuitive UI for easy configuration (digital version)

  • ►Black Box reporting for troubleshooting (digital version)

  • ►Compact 162.6 x 72.4 x 33 mm package

  • ►UL61010 and UL62368 approved

  • ►Arc, short circuit and overload protections

Watch the HRF15 product video for a concise overview of the core features and benefits >

Need help finding a precision high voltage power product?

We recognize your need for highly reliable high voltage solutions with precise output specifications. Speak to us today for technical support, the latest product samples, up to date pricing and global shipping details.

CONTACT US

Repeatability and stability in demanding environments

Minimize variability and maximize control

Repeatability is critical in scientific and inspection systems. If your high voltage source varies even slightly from run to run, your entire workflow can become unreliable. Unstable or inconsistent high voltage sources introduce too much noise into critical processes, making it difficult to trust or replicate results.

The HRF15's stability (<10 ppm) and ultra-low output ripple (0.001%) ensure consistent performance, improving reproducibility in analytical instrumentation.

Lack of fine control introduces inconsistency in high-precision environments where voltage directly influences analytical or imaging outcomes. It causes image instability, feature misalignment, or failure to detect submicron defects.

The HRF15's design offers excellent resolution and ultra-low regulation (<10 ppm), giving you complete control over your output even in demanding setups.

TECHNICAL QUESTION ABOUT YOUR REQUIREMENTS?

Ultimate performance and reliability

We offer the industry's largest standard high voltage power supply range, together with expertise in adjustment, modification and complete custom design and manufacture. All products provide total quality, from in-house design in Asia, Europe, and North America through to manufacturing facilities around the world.

  • Offering the widest range of power products available from one source

  • Unrivaled global technical and customer support

  • Vendor consolidation

  • 32 support offices throughout Europe, North America, and Asia

  • Experienced design teams to support development

  • Flexible and configurable solutions

  • Digitally controlled and programmable solutions


For more information or to discuss your specific needs, get in touch with our expert team. We'll be happy to help you.

SPEAK WITH OUR TEAM
Image Model Name Power Output Voltage Input Voltage Output Regulation Datasheet Stock Check RFQ
HRF1524S10K0P HRF1524S10K0P 15W 0 to 10kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S10K0N HRF1524S10K0N 15W 0 to -10kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S12K0P HRF1524S12K0P 15W 0 to 12kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S12K0N HRF1524S12K0N 15W 0 to -12kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S15K0P HRF1524S15K0P 15W 0 to 15kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S15K0N HRF1524S15K0N 15W 0 to -15kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S10K0P-D HRF1524S10K0P-D 15W 0 to 10kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S10K0N-D HRF1524S10K0N-D 15W 0 to -10kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S12K0P-D HRF1524S12K0P-D 15W 0 to 12kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S12K0N-D HRF1524S12K0N-D 15W 0 to -12kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S15K0P-D HRF1524S15K0P-D 15W 0 to 15kV 21.6 to 26.4VDC Regulated Datasheet RFQ
HRF1524S15K0N-D HRF1524S15K0N-D 15W 0 to -15kV 21.6 to 26.4VDC Regulated Datasheet RFQ

Safety

CB Certificate – HRF15 - IEC62368

Environmental Compliance

RoHS Statement
WEEE Statement
REACH Statement

Declarations of Conformity (DofC)

UK Declaration of Conformity – HRF15
EU Declaration of Conformity – HRF15
HRF15 - STEP 3D Model
HRF15 - IGES 3D Model
