VEL18 Series

AC-DC Power Supplies

VEL18 Series

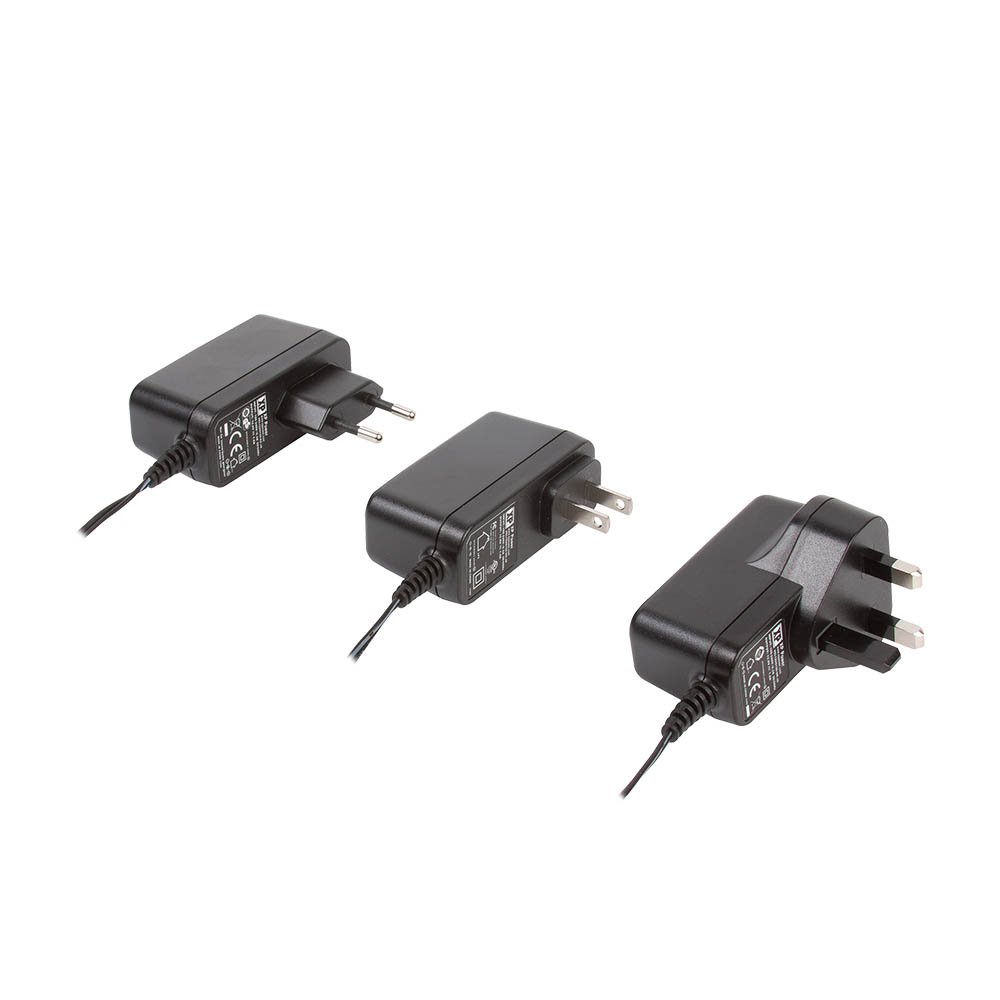

18W plugtop AC-DC power supplies with ITE approvals

The VEL18 series of wall plug adaptors comply with energy efficiency VI standards, have high active mode efficiency and extremely low no load power consumption.

Available in US, UK, EU & AU plug formats, the DC lead has a 5.5mm x 2.5mm centre positive barrel jack plug connector, these adaptors suit a wide variety of cost sensitive applications while maintaining industry leading performance.



datasheet Contact us

Features

  • Energy efficiency level VI
  • European CoC tier 2
  • Fixed mains connectors
  • Universal input
  • Output voltages from 9.0V to 24.0VDC
  • Class II construction
  • Low cost
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VEL18 VEL18US090 18 W Single Phase 9V 2A
VEL18 VEL18US120 18 W Single Phase 12V 1.5A
VEL18 VEL18US150 18 W Single Phase 15V 1.25A
VEL18 VEL18US180 18 W Single Phase 18V 1A
VEL18 VEL18US240 18 W Single Phase 24V 0.75A

Specifications


Dimensions

VEL (body only): -US: 3.54 x 1.34 x 1.87‚ (90.0 x 34.0 x 47.5 mm)EU: 3.54 x 1.34 x 2.26‚ (90.0 x 34.0 x 57.57 mm) UK: 3.54 x 1.95 x 1.96‚ (90.0 x 49.5 x 50.0 mm)

Input Voltage

90 to 264 VAC

No Load Input Power

75 mW

Harmonic Currents

EN61000-3-2, class A

Efficiency

85%, typical average of efficiencies measured at 25%, 50%, 75% and 100% load and 115 VAC input

Operating Temperature

0 to +60 °C, Derate from 100% load at 40 °C to 50% load at 60 °C

Isolation

3000 VAC Input to Output

Worldwide Safety Approvals

IEC60950-1, IEC62368-1

European Safety Approvals

EN60950-1, EN62368-1

US Safety Approvals

UL62368-1

Other Safety Approvals

China Compulsory Certification, GB4943, AU/NZ 60950.1

EMC

EN55032 level B conducted & radiated
