AC-DC Power Supplies
VCE05 Series
Low cost, PCB mount, 5W encapsulated and open frame, wide input AC-DC power supplies

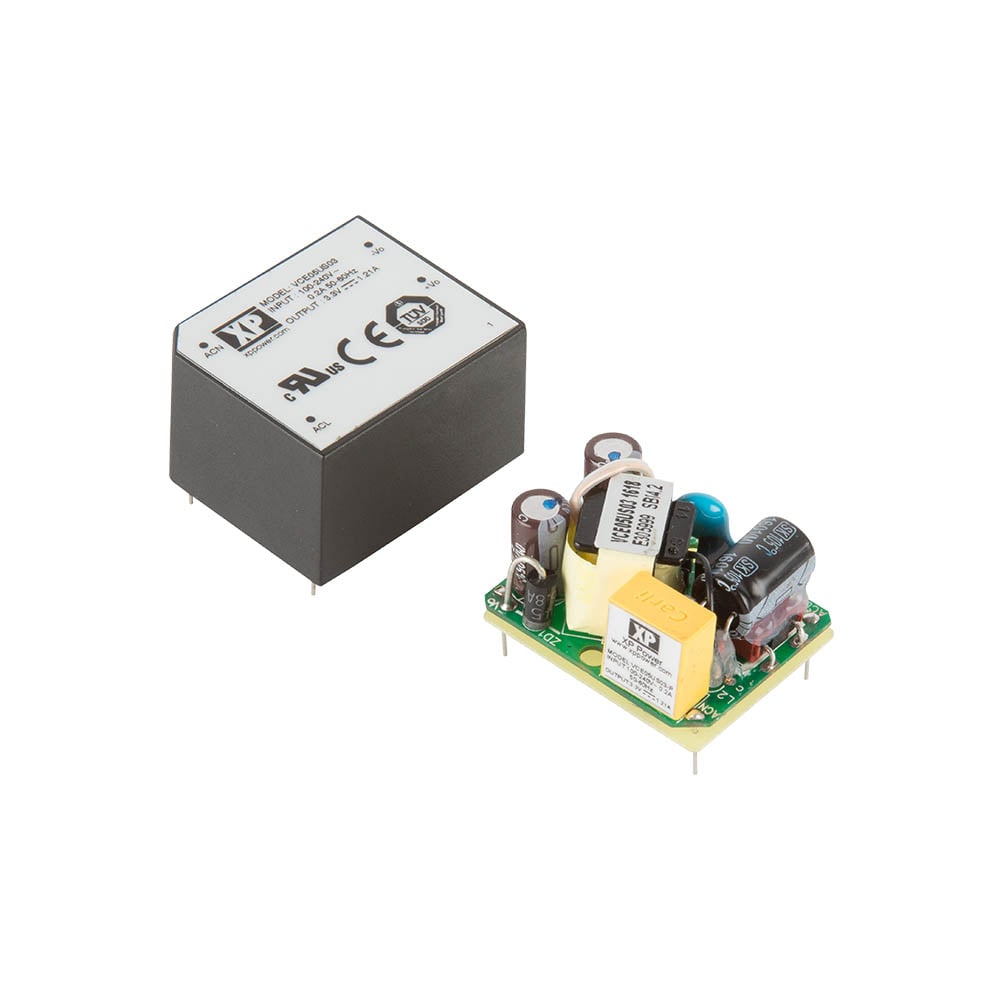

The VCE05 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE and industrial electronics applications. Their compact design features an integral EMC filter and hold-up capacitor, so no external components are required.
The series provides two mechanical options including open frame and encapsulated PCB mount. With approvals to world-wide safety standards, compliance with class B for conducted and radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit system designers with easy integration into a wide range of applications.
datasheet Contact us
Features
- Regulated single outputs 3.3 to 48VDC
- Input range 85 to 264VAC
- Encapsulated or open frame PCB mount package
- Peak load capability
- No external components required
- Class II
- <0.3W no load input power
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
VCE05US03 | 5 W | Single Phase | 3.3V | 1.573A |
|
|
|
|
|
VCE05US05 | 5 W | Single Phase | 5V | 1.3A |
|
|
|
|
|
VCE05US09 | 5 W | Single Phase | 9V | 0.722A |
|
|
|
|
|
VCE05US12 | 5 W | Single Phase | 12V | 0.541A |
|
|
|
|
|
VCE05US15 | 5 W | Single Phase | 15V | 0.433A |
|
|
|
|
|
VCE05US24 | 5 W | Single Phase | 24V | 0.27A |
|
|
|
|
|
VCE05US48 | 5 W | Single Phase | 48V | 0.135A |
|
|
|
Specifications
Dimensions
VCE05: 1.30 x 1.10 x 0.75‚ (33.02 x 27.94 x 19.05 mm) VCE05-P: 1.20 x 1.00 x 0.705‚ (30.8 x 25.4 x 17.9 mm)
Input Voltage
85 to 264 VAC
No Load Input Power
0.3 W
Harmonic Currents
EN61000-3-2 Class A
Efficiency
78% typical, model dependent
Operating Temperature
-25 °C to +70 °C, derate linearly from 100% at +50 °C to 50% at +70 °C
Isolation
3000 VAC Input to Output
Worldwide Safety Approvals
IEC60950-1, IEC62368-1
European Safety Approvals
EN62368-1
US Safety Approvals
UL62368-1
Other Safety Approvals
CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
EMC
EN55022 Class B conducted & radiated (see datasheet)
