SDT01 Series

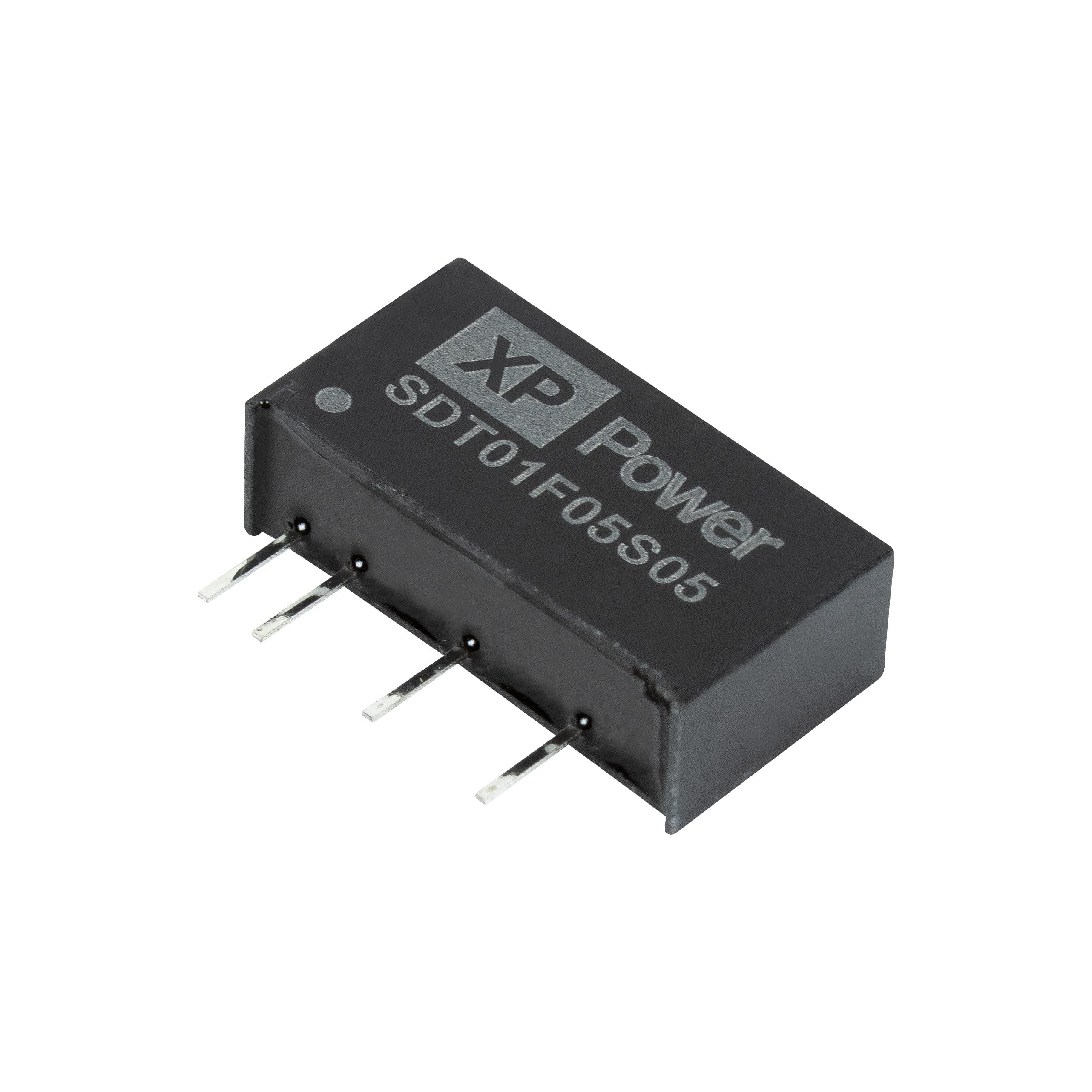

±10% input, 1W, unregulated, single & dual output DC-DC converters in a SIP7 PCB mount package
The SDT01 series of single and dual output 1W DC-DC converters are an ideal solution for isolating voltage rails in a distributed power supply architecture such as analog, digital, data and relay circuits.
The SDT01 offers high efficiency, ITE safety approvals, short circuit protection and a wide operating temperature range in a compact SIP7 design, allowing easy integration into industrial, instrumentation and technology applications.
Features
- Single & dual unregulated outputs
- ±10% input range
- Single outputs 3.3V to 15VDC
- Dual outputs ±5V to ±15VDC
- SIP7 package
- 1.5kVDC isolation
- UL62368-1 & IEC62368-1 safety standards
- Continuous short circuit protection
- Remote On/Off
- -40˚C to +105˚C operating temperature
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
SDT01F03V3D05 | 1W | 2.97 to 3.63VDC | 5V, -5V | 0.1A, -0.1A | Datasheet | Stock | RFQ |
|
|
SDT01F05D05 | 1W | 4.5 to 5.5VDC | 5V, -5V | 0.1A, -0.1A | Datasheet | Stock | RFQ |
|
|
SDT01F05D12 | 1W | 4.5 to 5.5VDC | 12V, -12V | 0.042A, -0.042A | Datasheet | Stock | RFQ |
|
|
SDT01F05D15 | 1W | 4.5 to 5.5VDC | 15V, -15V | 0.034A, -0.034A | Datasheet | Stock | RFQ |
|
|
SDT01F12D12 | 1W | 10.8 to 13.2VDC | 12V, -12V | 0.042A, -0.042A | Datasheet | Stock | RFQ |
|
|
SDT01F24D05 | 1W | 21.6 to 26.4VDC | 5V, -5V | 0.1A, -0.1A | Datasheet | Stock | RFQ |
|
|
SDT01F24D09 | 1W | 21.6 to 26.4VDC | 9V, -9V | 0.056A, -0.056A | Datasheet | Stock | RFQ |
|
|
SDT01F24D12 | 1W | 21.6 to 26.4VDC | 12V, -12V | 0.042A, -0.042A | Datasheet | Stock | RFQ |
|
|
SDT01F24D15 | 1W | 21.6 to 26.4VDC | 15V, -15V | 0.034A, -0.034A | Datasheet | Stock | RFQ |
