IV Series
±10% input, 1W, regulated, DC-DC converters in a SIP7 or DIP14 PCB mount package

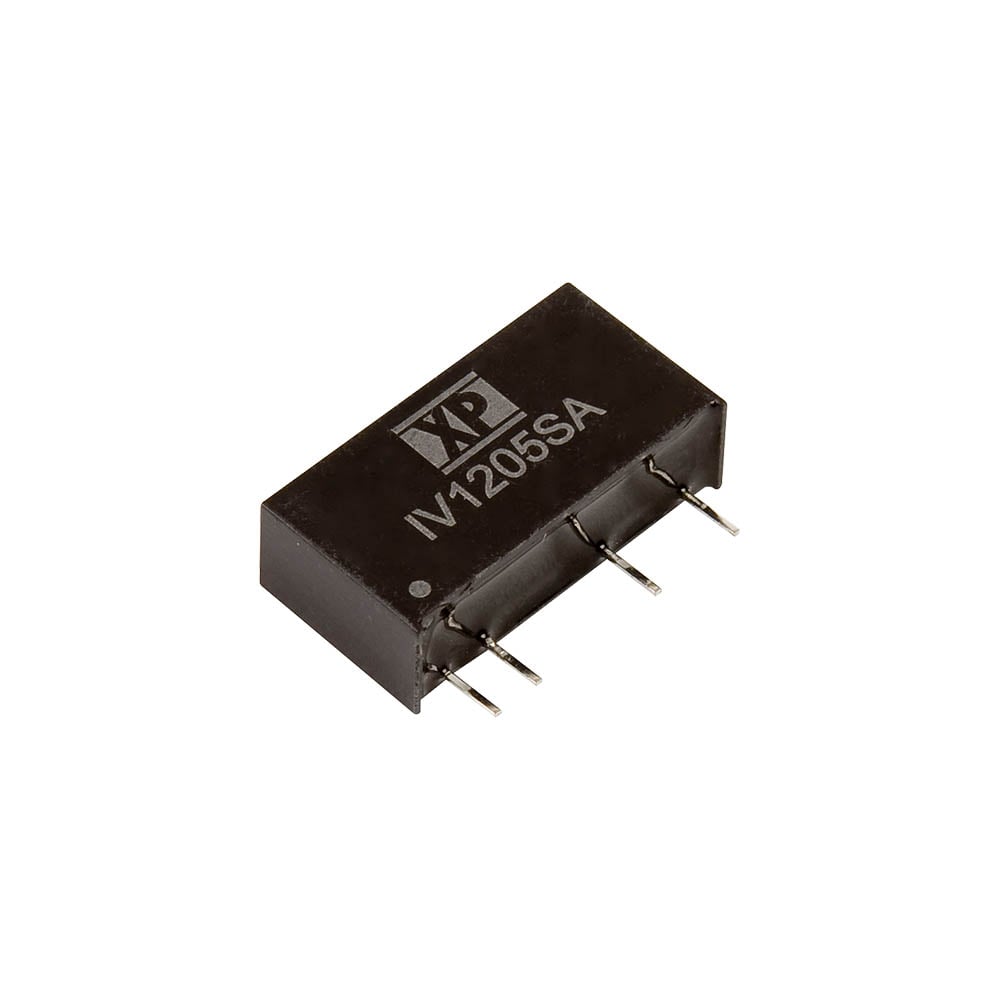

The IV series is housed in a SIP7 or DIP14 plastic case for PCB mounting.
Featuring a ±10% input voltage range for 5, 12 & 24VDC nominal inputs, offering both single and dual outputs, singles have 3.3, 5, 9, 12, 15 & 24VDC with duals having ±3.3, ±5, ±9, ±12, ±15 & ±24VDC.
The 1W IV provides 3.0kVDC isolation between input and output as standard, with 4 & 6kVDC isolation versions also available as an option.
The operating temperature range is from -40°C to +85°C, with no derating.
Features
- Unregulated single outputs
- ±10% input range
- Single outputs 3.3 to 24VDC
- Duals outputs ±3.3, ±5, ±9, ±12, ±15 & ±24VDC.
- SIP7 or DIP14 package
- 3.0kVDC isolation, 4.0 & 6.0kVDC options
- -40°C to +85°C operating temperature
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
IV0503SA | 1W | 4.5 to 5.5VDC | 3.3V | 0.3A | Datasheet | Stock | RFQ |
|
|
IV0505SA | 1W | 4.5 to 5.5VDC | 5V | 0.2A | Datasheet | Stock | RFQ |
|
|
IV0509SA | 1W | 4.5 to 5.5VDC | 9V | 0.112A | Datasheet | Stock | RFQ |
|
|
IV0512SA | 1W | 4.5 to 5.5VDC | 12V | 0.084A | Datasheet | Stock | RFQ |
|
|
IV0515SA | 1W | 4.5 to 5.5VDC | 15V | 0.066A | Datasheet | Stock | RFQ |
|
|
IV0524SA | 1W | 4.5 to 5.5VDC | 24V | 0.042A | Datasheet | Stock | RFQ |
|
|
IV1203SA | 1W | 10.8 to 13.2VDC | 3.3V | 0.3A | Datasheet | Stock | RFQ |
|
|
IV1205SA | 1W | 10.8 to 13.2VDC | 5V | 0.2A | Datasheet | Stock | RFQ |
|
|
IV1209SA | 1W | 10.8 to 13.2VDC | 9V | 0.112A | Datasheet | Stock | RFQ |
|
|
IV1212SA | 1W | 10.8 to 13.2VDC | 12V | 0.084A | Datasheet | Stock | RFQ |
|
|
IV1215SA | 1W | 10.8 to 13.2VDC | 15V | 0.066A | Datasheet | Stock | RFQ |
|
|
IV1224SA | 1W | 10.8 to 13.2VDC | 24V | 0.042A | Datasheet | Stock | RFQ |
|
|
IV2403SA | 1W | 21.6 to 26.4VDC | 3.3V | 0.3A | Datasheet | Stock | RFQ |
|
|
IV2405SA | 1W | 21.6 to 26.4VDC | 5V | 0.2A | Datasheet | Stock | RFQ |
|
|
IV2409SA | 1W | 21.6 to 26.4VDC | 9V | 0.112A | Datasheet | Stock | RFQ |
|
|
IV2412SA | 1W | 21.6 to 26.4VDC | 12V | 0.084A | Datasheet | Stock | RFQ |
|
|
IV2415SA | 1W | 21.6 to 26.4VDC | 15V | 0.066A | Datasheet | Stock | RFQ |
|
|
IV2424SA | 1W | 21.6 to 26.4VDC | 24V | 0.042A | Datasheet | Stock | RFQ |
