IF Series

IF Series

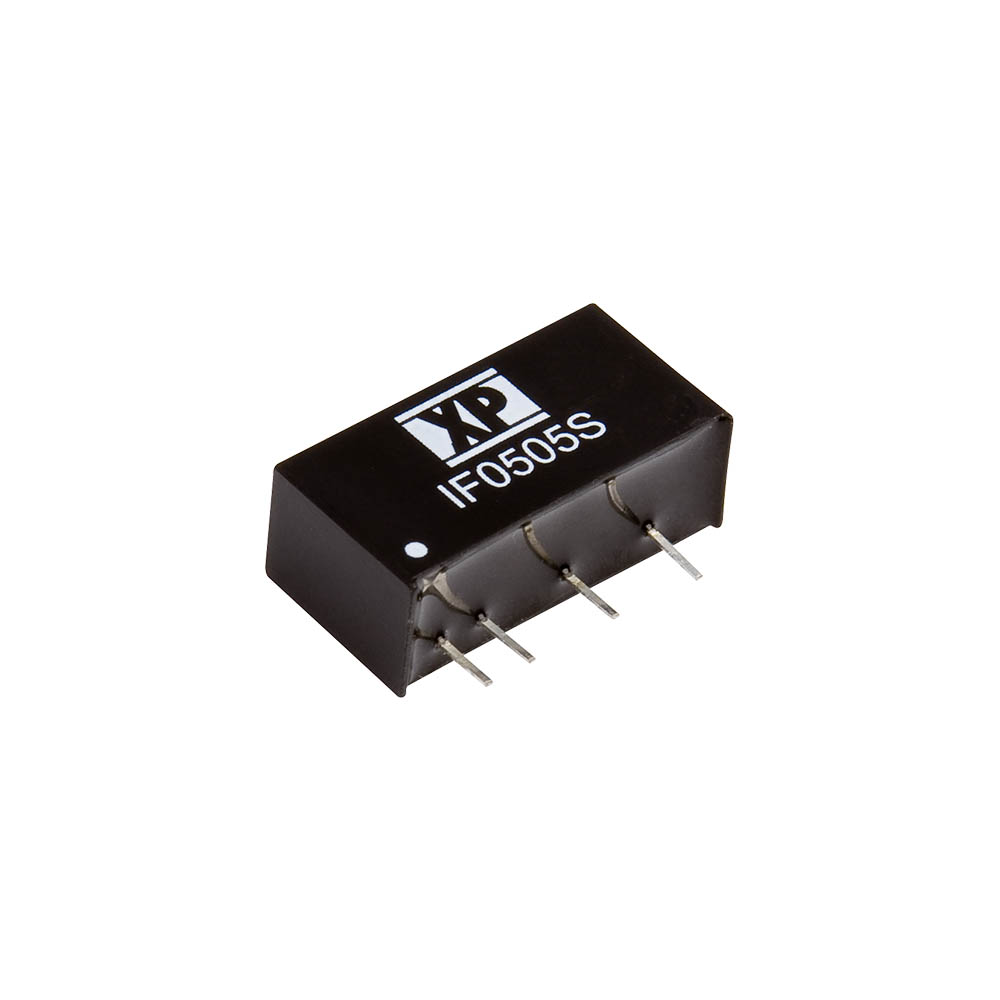

±10% input, 1W, regulated, DC-DC converters in a SIP7 or DIP14 PCB mount package

The IF series is housed in a SIP7 or DIP14 plastic case for PCB mounting. Featuring a ±10% input voltage range for 5, 12 & 24VDC nominal inputs, offering single outputs of 3.3, 5, 9, 12 or 15VDC.

The 1W IF provides 1kVDC isolation between input and output as standard, with 3kVDC isolation available as an option. The operating temperature range is from -40°C to +85°C.

Features

  • Regulated single output

  • ±10% input range

  • Single outputs 3.3 to 15VDC

  • SIP7 or DIP14 package

  • 1.0kVDC isolation, 3.0kVDC optional

  • Low ripple & noise

  • -40°C to +85°C operating temperature

  • 3 year warranty

Model numberPowerInput voltageOutput voltageOutput currentActions
1W4.5 to 5.5 VDC3.3V0.333A
1W4.5 to 5.5 VDC5V0.2A
1W4.5 to 5.5 VDC9V0.111A
1W4.5 to 5.5 VDC12V0.084A
1W4.5 to 5.5 VDC15V0.067A
1W10.8 to 13.2 VDC3.3V0.333A
1W10.8 to 13.2 VDC5V0.2A
1W10.8 to 13.2 VDC9V0.111A
1W10.8 to 13.2 VDC12V0.084A
1W10.8 to 13.2 VDC15V0.067A
1W21.6 to 26.4 VDC3.3V0.333A
1W21.6 to 26.4 VDC5V0.2A
1W21.6 to 26.4 VDC9V0.111A
1W21.6 to 26.4 VDC12V0.084A
1W21.6 to 26.4 VDC15V0.067A
