DC-DC Converters

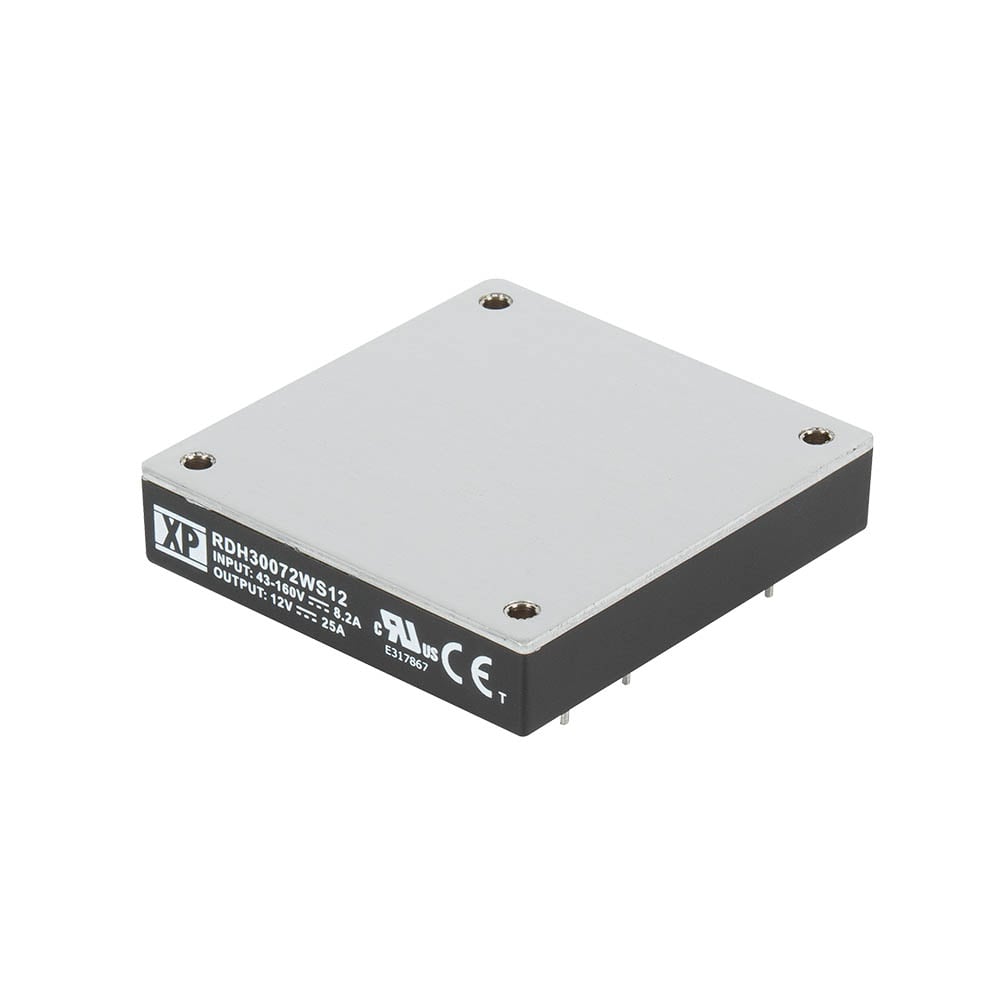

RDH300 Series
- Wide 4:1 Input Range
- 72 & 110 VDC Nominal Inputs for Rail Applications
- Complies with EN50155
- Meets EN50121-3-2
- Single Output
- Industry Standard 1/2 Brick
- -40 °C to +100 °C Operation
- 3000 VDC Isolation
- Output Trim ±10%
- Remote On/Off and Remote Sense
- 3 Year Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
|
RDH30072WS05 | 300 W | 43 to 160 VDC | 5V | 60A |
|
|
|
|
|
RDH30072WS12 | 300 W | 43 to 160 VDC | 12V | 25A |
|
|
|
|
|
RDH30072WS24 | 300 W | 43 to 160 VDC | 24V | 12.5A |
|
|
|
|
|
RDH30072WS28 | 300 W | 43 to 160 VDC | 28V | 10.7A |
|
|
|
|
|
RDH30072WS48 | 300 W | 43 to 160 VDC | 48V | 6.25A |
|
|
|
Specifications
Dimensions
RDH300: 2.4 x 2.28 x 0.5‚ (61.0 x 57.9 x 12.7 mm)
Input Voltage
43-160 VDC (72/110 V nominal inputs)
Efficiency
89% (see datasheet)
Operating Temperature
Base Plate Temperature: -40 to +100 °C
Isolation
Input to Output: 3000 VDC at 60 s Input to Case: 3000 VDC at 60 s Output to Case: 500 VAC at 60 s
European Safety Approvals
EN50155
US Safety Approvals
cUL60950-1
EMC
Conducted & Radiated: EN50121-3-2
