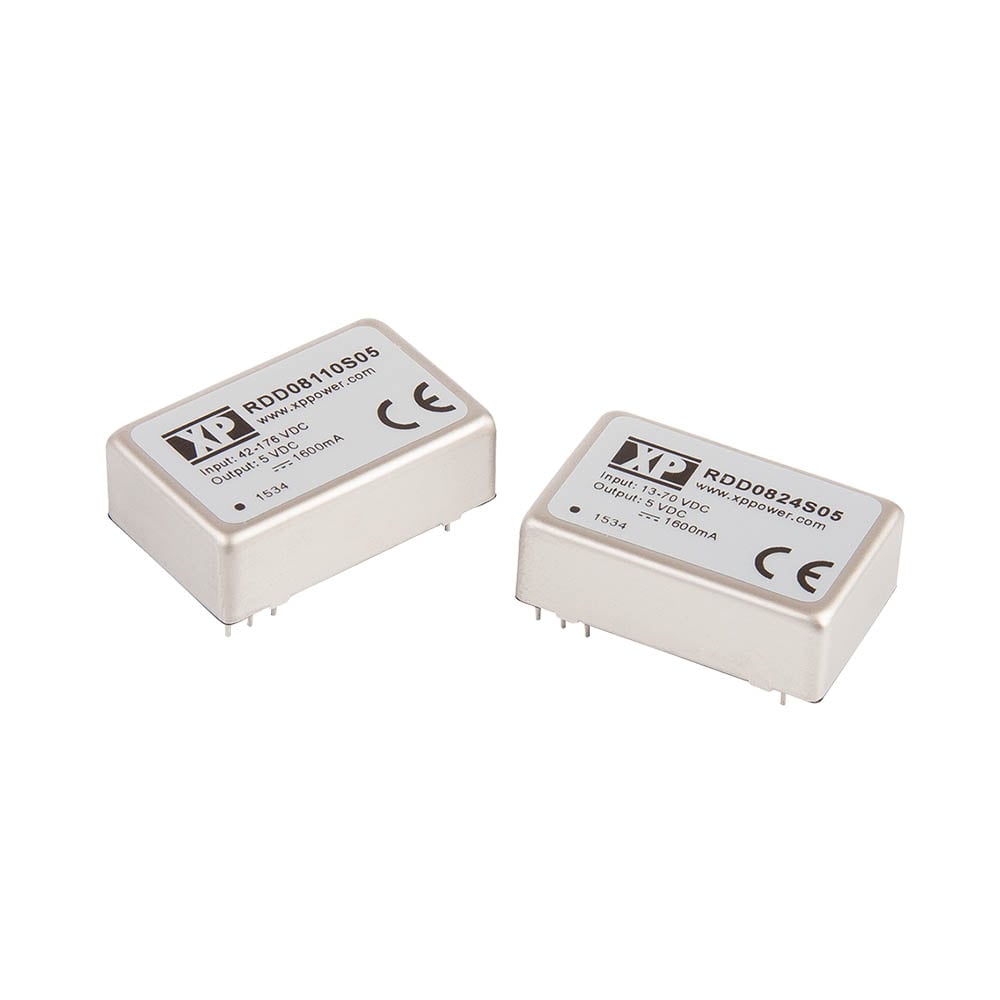

DC-DC Converters
RDD08 Series
- Wide Input Range for Railway Applications
- Single and Dual Outputs
- DIP24 Package
- -40 °C to +85 °C Operation
- Full Load at 70 °C Ambient
- 3000 VDC Isolation
- MTBF >800 kHrs
- 3 Year Warranty
- EN50155 Approval for Railway Applications
- EN50121-3-2 EMC for Railway Applications
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
|
RDD0824S3V3 | 8 W | 13 to 70 VDC | 3.3V | 2.4A |
|
|
|
|
|
RDD0824S05 | 8 W | 13 to 70 VDC | 5V | 1.6A |
|
|
|
|
|
RDD0824S12 | 8 W | 13 to 70 VDC | 12V | 0.665A |
|
|
|
|
|
RDD0824S15 | 8 W | 13 to 70 VDC | 15V | 0.535A |
|
|
|
|
|
RDD0824D05 | 8 W | 13 to 70 VDC | 5V, -5V | 0.8A, 0.8A |
|
|
|
|
|
RDD0824D12 | 8 W | 13 to 70 VDC | 12V, -12V | 0.335A, 0.335A |
|
|
|
|
|
RDD0824D15 | 8 W | 13 to 70 VDC | 15V, -15V | 0.265A, 0.265A |
|
|
|
|
|
RDD08110S3V3 | 8 W | 42 to 176 VDC | 3.3V | 2.4A |
|
|
|
|
|
RDD08110S05 | 8 W | 42 to 176 VDC | 5V | 1.6A |
|
|
|
|
|
RDD08110S12 | 8 W | 42 to 176 VDC | 12V | 0.665A |
|
|
|
|
|
RDD08110S15 | 8 W | 42 to 176 VDC | 15V | 0.535A |
|
|
|
|
|
RDD08110D05 | 8 W | 42 to 176 VDC | 5V, -5V | 0.8A, 0.8A |
|
|
|
|
|
RDD08110D12 | 8 W | 42 to 176 VDC | 12V, -12V | 0.335A, 0.335A |
|
|
|
|
|
RDD08110D15 | 8 W | 42 to 176 VDC | 15V, -15V | 0.265A, 0.265A |
|
|
|
Specifications
Dimensions
RDD: 1.25 x 0.80 x 0.40‚ (31.8 x 20.3 x 10.2 mm)
Input Voltage
13 to 70 VDC (24 V nominal) 42 to 176 VDC (48 V nominal)
Efficiency
80 - 86%. See datasheet
Operating Temperature
-40 °C to +85 °C. Derate from 100% load at +70 °C to 50% at +85 °C
Isolation
3000 VDC Input to Output
European Safety Approvals
EN50551, LVD evaluated to EN62368
EMC
EN550121-3-2 Class A conducted & radiated
