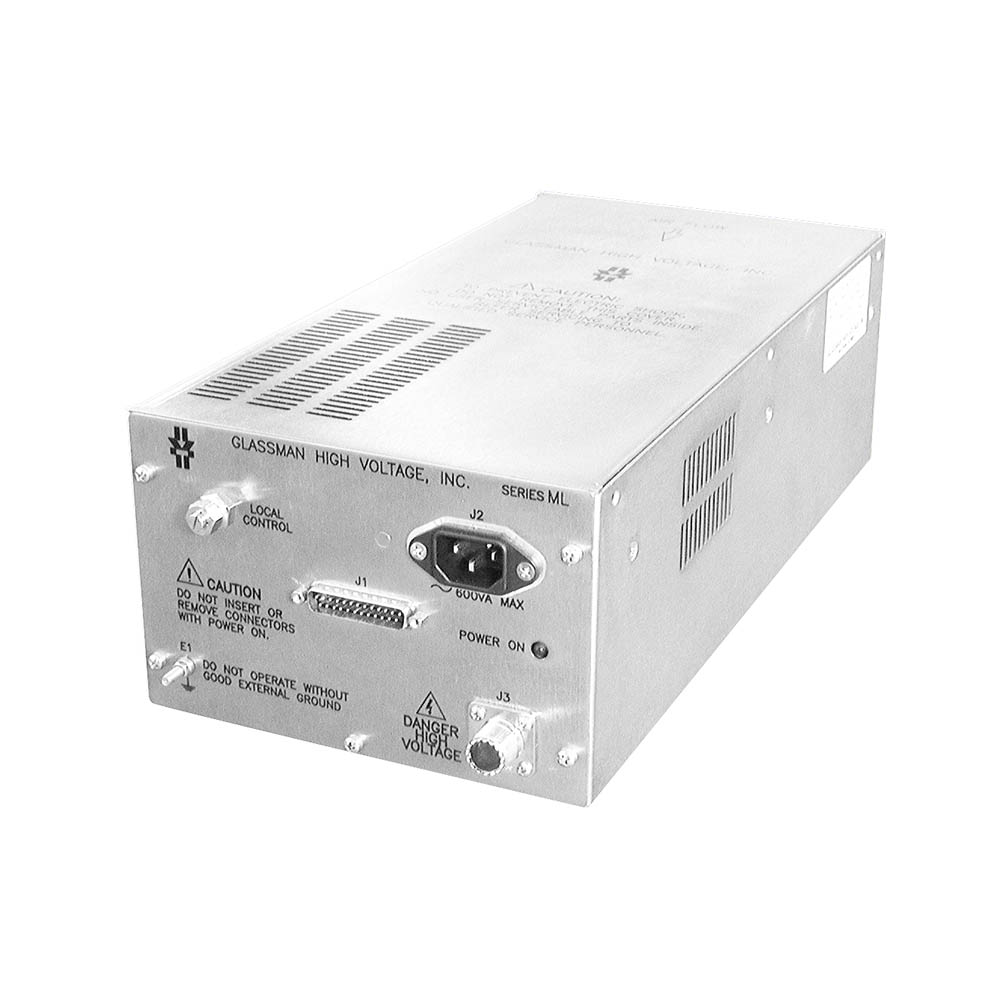

ML Series

High Voltage AC-DC

ML Series

  • 300 W
  • 0-8 kV through 0-60 kV
  • Compact Module
  • Low Ripple
  • Tight Regulation
  • Constant Voltage/Constant Current Operation
  • Air Insulated
  • 3 Year Warranty
Contact us
Model Name Power Output Voltage Input Voltage Package Size Datasheet RFQ
ML ML08P37.0 300 W 0 to 8 kV Single Phase Compact Module
ML ML10P30.0 300 W 0 to 10 kV Single Phase Compact Module
ML ML12P25.0 300 W 0 to 12 kV Single Phase Compact Module
ML ML15P20.0 300 W 0 to 15 kV Single Phase Compact Module
ML ML20P15.0 300 W 0 to 20 kV Single Phase Compact Module
ML ML25P12.0 300 W 0 to 25 kV Single Phase Compact Module
ML ML30P10.0 300 W 0 to 30 kV Single Phase Compact Module
ML ML40P07.5 300 W 0 to 40 kV Single Phase Compact Module
ML ML50P06.0 300 W 0 to 50 kV Single Phase Compact Module
ML ML60P05.0 300 W 0 to 60 kV Single Phase Compact Module
ML ML08N37.0 300 W 0 to 8 kV Single Phase Compact Module
ML ML10N30.0 300 W 0 to 10 kV Single Phase Compact Module
ML ML12N25.0 300 W 0 to 12 kV Single Phase Compact Module
ML ML15N20.0 300 W 0 to 15 kV Single Phase Compact Module
ML ML20N15.0 300 W 0 to 20 kV Single Phase Compact Module
ML ML25N12.0 300 W 0 to 25 kV Single Phase Compact Module
ML ML30N10.0 300 W 0 to 30 kV Single Phase Compact Module
ML ML40N07.5 300 W 0 to 40 kV Single Phase Compact Module
ML ML50N06.0 300 W 0 to 50 kV Single Phase Compact Module
ML ML60N05.0 300 W 0 to 60 kV Single Phase Compact Module

Specifications

Dimensions

8-40kV: 4.75 x 7.25 x 14.75 in (120.7 x 184.2 x 374.6 mm)
50-60kV: 4.75 x 7.25 x 20.50 in (120.7 x 184.2 x 520.7 mm)

Input Voltage

90-132 VAC or 180-264 VAC

Operating Temperature

-20 to +50 °C

Worldwide Safety Approvals

IEC61010-1:2010

EMC

EN61000-6-4:2007, Class A EN61000-6-2:2005
