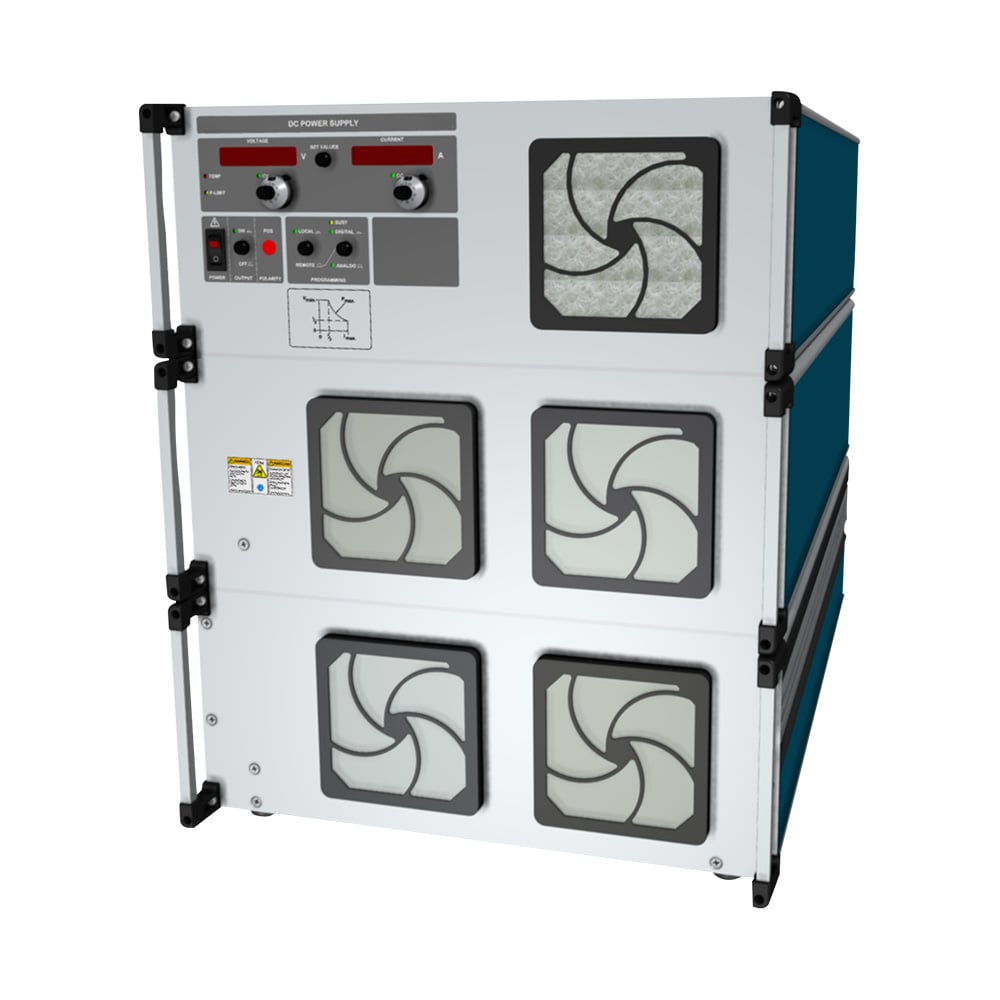

MCA9K0 Series
9kW regulated high voltage AC-DC power supplies with outputs from 0-150VDC to 0-3kVDC
The MCA9K0 series are a switch-mode power supplies with continuous automatic range adjustment. They provide the full output performance over a wide voltage and current range. Due to the automatic power limit, their working range compared to other power supplies is about three times wider.
The high switching frequency achieves a low residual ripple in the generated output voltage with high stability, good control dynamics, and at the same time only a low amount of stored energy.
Features
- Output voltages 0-150VDC to 0-3kVDC
- For models up to 1.5kVDC: floating output
- Autoranging characteristic with fixed power limit
- 3 phase AC input
- Continuous operation at full rated power
- Voltage and constant current control with automatic transition
- Control mode display with LED’s and power limit LED
- Digital, LAN and USB interface option
- Analog programming/interface option
- Manual voltage and current control with 10 turn potentiometer
- Set-point display via a button
- Set-point adjustment possible with disabled output
- Push-button switch for output voltage
- Short circuit & arc protection
- 2 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
MCA9K0-150 | 9000W | Three Phase | 150V | 120A | Datasheet | RFQ | |
|
|
MCA9K0-400 | 9000W | Three Phase | 400V | 48A | Datasheet | RFQ | |
|
|
MCA9K0-750 | 9000W | Three Phase | 750V | 24A | Datasheet | RFQ | |
|
|
MCA9K0-1500P | 9000W | Three Phase | 1500V | 12A | Datasheet | RFQ | |
|
|
MCA9K0-1500N | 9000W | Three Phase | 1500V | 12A | Datasheet | RFQ | |
|
|
MCA9K0-3000P | 9000W | Three Phase | 3000V | 6A | Datasheet | RFQ | |
|
|
MCA9K0-3000N | 9000W | Three Phase | -3000V | 6A | Datasheet | RFQ |
