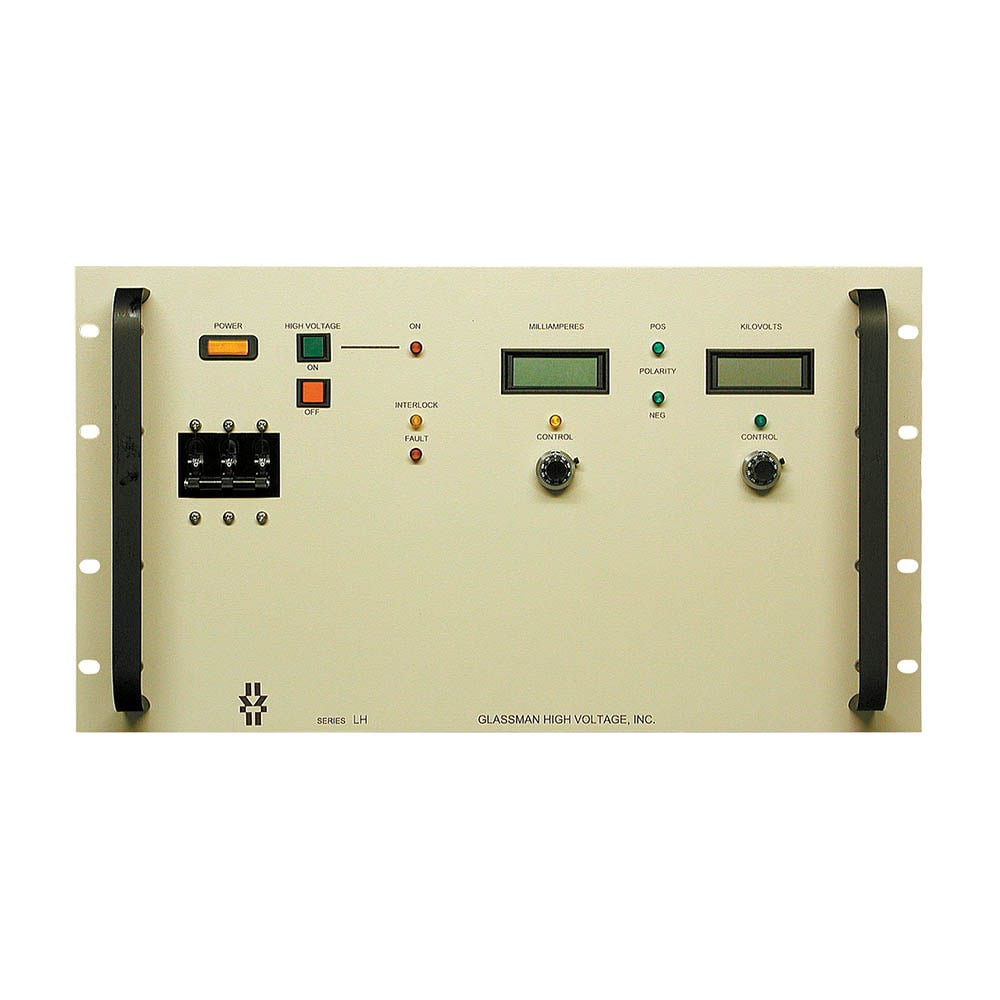

LH Series

5kW regulated high voltage AC-DC power supplies with outputs from 0 - 1kV to 0 - 150kV DC

The 5kW LH series is a high quality, high performance, high reliability & high stability high voltage power supply with low ripple & noise, being air insulated it facilitates a lower cost of ownership as well as being lighter than competing product & though various output control options, input voltages, low output discharge currents makes integrating this power supply into a new system or tool simple.

The LH power supply modules can be paralleled up to 40kW output power utilizing one master control module and up to four slave modules.

Designed for electrical design engineers & system integration on engineers in a wide range of industries including ion implant, E-beam welding & E-beam additive manufacturing & many other application specific markets that are challenged with limited high voltage integration experience & tight timelines.

Features

  • Output voltages 0-1kVDC to 0-150kVDC
  • Parallelable up to 40kW
  • 6U 19" rack mount
  • 0 to 100% programmable voltage & current
  • Local, analog, RS232/USB digital control. Ethernet is optional
  • Output voltage & current regulated
  • Low ripple <0.05% RMS of rated voltage at full load
  • Voltage & current monitor outputs
  • 3 phase 208VAC input standard, 200VAC, 400VAC optional
  • Efficiency >85%
  • Air insulated
  • Short circuit, arc & overload protection
  • 0°C to +40°C operating temperature
  • 3 year warranty
Image Model Name Power Output Voltage Input Voltage Package Size Datasheet RFQ
LH8P630 5 kW 0 to 8 kV Three Phase 6U Datasheet RFQ
LH10P500 5 kW 0 to 10 kV Three Phase 6U Datasheet RFQ
LH12P420 5 kW 0 to 12 kV Three Phase 6U Datasheet RFQ
LH15P330 5 kW 0 to 15 kV Three Phase 6U Datasheet RFQ
LH20P250 5 kW 0 to 20 kV Three Phase 6U Datasheet RFQ
LH25P200 5 kW 0 to 25 kV Three Phase 6U Datasheet RFQ
LH30P170 5 kW 0 to 30 kV Three Phase 6U Datasheet RFQ
LH40P125 5 kW 0 to 40 kV Three Phase 6U Datasheet RFQ
LH50P100 5 kW 0 to 50 kV Three Phase 6U Datasheet RFQ
LH60P85 5 kW 0 to 60 kV Three Phase 6U Datasheet RFQ
LH70P72 5 kW 0 to 70 kV Three Phase 6U Datasheet RFQ
LH80P63 5 kW 0 to 80 kV Three Phase 6U Datasheet RFQ
LH100P50 5 kW 0 to 100 kV Three Phase 6U Datasheet RFQ
LH125P32 5 kW 0 to 125 kV Three Phase 6U Datasheet RFQ
LH150P25 5 kW 0 to 150 kV Three Phase 6U Datasheet RFQ
LH8N630 5 kW 0 to 8 kV Three Phase 6U Datasheet RFQ
LH10N500 5 kW 0 to 10 kV Three Phase 6U Datasheet RFQ
LH12N420 5 kW 0 to 12 kV Three Phase 6U Datasheet RFQ
LH15N330 5 kW 0 to 15 kV Three Phase 6U Datasheet RFQ
LH20N250 5 kW 0 to 20 kV Three Phase 6U Datasheet RFQ
LH25N200 5 kW 0 to 25 kV Three Phase 6U Datasheet RFQ
LH30N170 5 kW 0 to 30 kV Three Phase 6U Datasheet RFQ
LH40N125 5 kW 0 to 40 kV Three Phase 6U Datasheet RFQ
LH50N100 5 kW 0 to 50 kV Three Phase 6U Datasheet RFQ
LH60N85 5 kW 0 to 60 kV Three Phase 6U Datasheet RFQ
LH70N72 5 kW 0 to 70 kV Three Phase 6U Datasheet RFQ
LH80N63 5 kW 0 to 80 kV Three Phase 6U Datasheet RFQ
LH100N50 5 kW 0 to 100 kV Three Phase 6U Datasheet RFQ
LH125N32 5 kW 0 to 125 kV Three Phase 6U Datasheet RFQ
LH150N25 5 kW 0 to 150 kV Three Phase 6U Datasheet RFQ
LH1R5.0 5 kW 0 to 1 kV Three Phase 6U Datasheet RFQ
LH1.5R3.3 5 kW 0 to 1.5 kV Three Phase 6U Datasheet RFQ
LH2R2.5 5 kW 0 to 2 kV Three Phase 6U Datasheet RFQ
LH3R1.7 5 kW 0 to 3 kV Three Phase 6U Datasheet RFQ
LH5R1.0 5 kW 0 to 5 kV Three Phase 6U Datasheet RFQ
LH6R850 5 kW 0 to 6 kV Three Phase 6U Datasheet RFQ
LH8R630 5 kW 0 to 8 kV Three Phase 6U Datasheet RFQ
LH10R500 5 kW 0 to 10 kV Three Phase 6U Datasheet RFQ
LH12R420 5 kW 0 to 12 kV Three Phase 6U Datasheet RFQ
LH15R330 5 kW 0 to 15 kV Three Phase 6U Datasheet RFQ
LH20R250 5 kW 0 to 20 kV Three Phase 6U Datasheet RFQ
LH25R200 5 kW 0 to 25 kV Three Phase 6U Datasheet RFQ
LH30R170 5 kW 0 to 30 kV Three Phase 6U Datasheet RFQ
LH40R125 5 kW 0 to 40 kV Three Phase 6U Datasheet RFQ
LH50R100 5 kW 0 to 50 kV Three Phase 6U Datasheet RFQ
LH60R85 5 kW 0 to 60 kV Three Phase 6U Datasheet RFQ
LH70R72 5 kW 0 to 70 kV Three Phase 6U Datasheet RFQ
LH80R63 5 kW 0 to 80 kV Three Phase 6U Datasheet RFQ
LH100R50 5 kW 0 to 100 kV Three Phase 6U Datasheet RFQ
