IU Series
2:1 input, 2W, regulated, DC-DC converters in a SIP8 or DIP16 PCB mount package

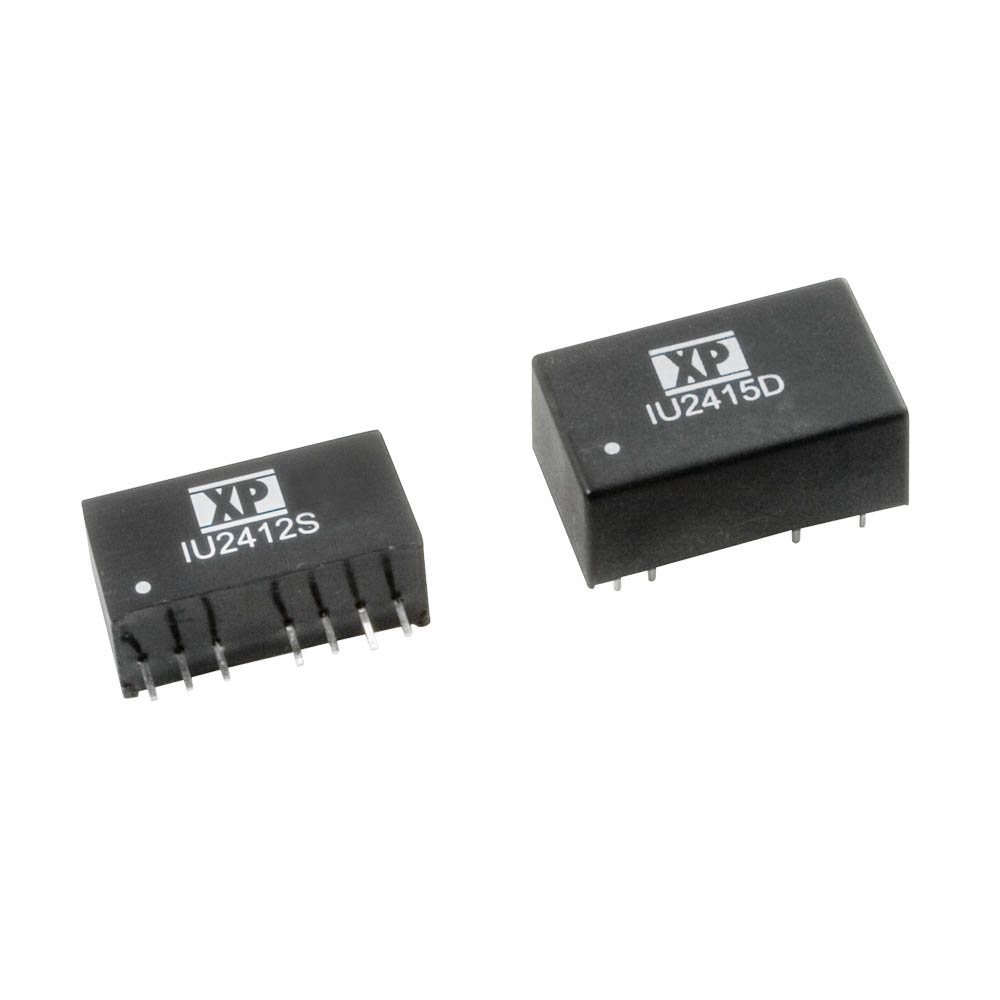

The IU series is housed in a SIP8 or DIP16 PCB mount plastic case. Featuring a 2:1 input voltage range of 4.5 to 9VDC, 9 to 18VDC, 18 to 36VDC or 36 to 72VDC with regulated single outputs of 3.3, 5, 9, 12, 15 & 24VDC and dual outputs ±3.3, ±5, ±9, ±12, ±15 or ±24VDC.
The 2W IU series has 1kVDC isolation (optional 3kV) between input and output, continuous short circuit protection is standard. Remote On/Off can be specified as an option on SIP versions. The operating temperature range is from -40°C to +85°C.
Features
- Regulated single & dual outputs
- 2:1 input range
- Single outputs 3.3 to 24VDC
- Dual outputs ±3.3 to ±24VDC
- SIP8 or DIP16 package
- 1.0kVDC isolation, 3.0kVDC option
- Continuous short circuit protection
- Remote On/Off option on SIP8 models
- -40°C to +85°C operating temperature
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
IU0503SA | 2W | 4.5 to 9VDC | 3.3V | 0.5A | Datasheet | Stock | RFQ |
|
|
IU0505SA | 2W | 4.5 to 9VDC | 5V | 0.4A | Datasheet | Stock | RFQ |
|
|
IU0509SA | 2W | 4.5 to 9VDC | 9V | 0.222A | Datasheet | Stock | RFQ |
|
|
IU0512SA | 2W | 4.5 to 9VDC | 12V | 0.167A | Datasheet | Stock | RFQ |
|
|
IU0515SA | 2W | 4.5 to 9VDC | 15V | 0.133A | Datasheet | Stock | RFQ |
|
|
IU0524SA | 2W | 4.5 to 9VDC | 24V | 0.083A | Datasheet | Stock | RFQ |
|
|
IU1203SA | 2W | 9 to 18VDC | 3.3V | 0.5A | Datasheet | Stock | RFQ |
|
|
IU1205SA | 2W | 9 to 18VDC | 5V | 0.4A | Datasheet | Stock | RFQ |
|
|
IU1209SA | 2W | 9 to 18VDC | 9V | 0.222A | Datasheet | Stock | RFQ |
|
|
IU1212SA | 2W | 9 to 18VDC | 12V | 0.167A | Datasheet | Stock | RFQ |
|
|
IU1215SA | 2W | 9 to 18VDC | 15V | 0.133A | Datasheet | Stock | RFQ |
|
|
IU1224SA | 2W | 9 to 18VDC | 24V | 0.083A | Datasheet | Stock | RFQ |
|
|
IU2403SA | 2W | 18 to 36VDC | 3.3V | 0.5A | Datasheet | Stock | RFQ |
|
|
IU2405SA | 2W | 18 to 36VDC | 5V | 0.4A | Datasheet | Stock | RFQ |
|
|
IU2409SA | 2W | 18 to 36VDC | 9V | 0.222A | Datasheet | Stock | RFQ |
|
|
IU2412SA | 2W | 18 to 36VDC | 12V | 0.167A | Datasheet | Stock | RFQ |
|
|
IU2415SA | 2W | 18 to 36VDC | 15V | 0.133A | Datasheet | Stock | RFQ |
|
|
IU2424SA | 2W | 18 to 36VDC | 24V | 0.083A | Datasheet | Stock | RFQ |
|
|
IU4803SA | 2W | 36 to 72VDC | 3.3V | 0.5A | Datasheet | Stock | RFQ |
|
|
IU4805SA | 2W | 36 to 72VDC | 5V | 0.4A | Datasheet | Stock | RFQ |
|
|
IU4809SA | 2W | 36 to 72VDC | 9V | 0.222A | Datasheet | Stock | RFQ |
|
|
IU4812SA | 2W | 36 to 72VDC | 12V | 0.167A | Datasheet | Stock | RFQ |
|
|
IU4815SA | 2W | 36 to 72VDC | 15V | 0.133A | Datasheet | Stock | RFQ |
|
|
IU4824SA | 2W | 36 to 72VDC | 24V | 0.083A | Datasheet | Stock | RFQ |
