IMM02 Series

DC-DC Converters

IMM02 Series

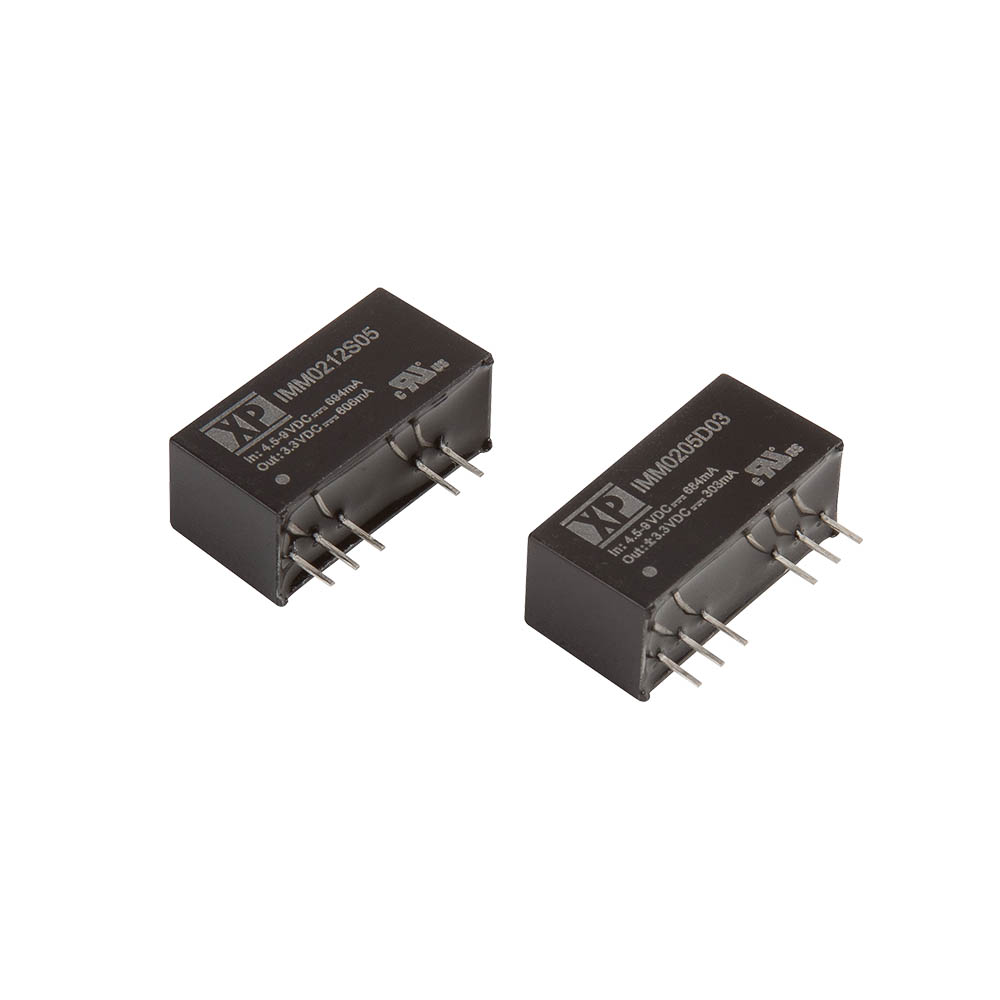

2:1 input, 2W, regulated, DC-DC converters in a SIP8 PCB mount package for medical (1 x MOPP @250VAC) applications

The 2W IMM02 series is designed for medical applications with 1 x MOPP @250VAC  1.5kVAC isolation and 2µA patient leakage current, it is housed in a SIP8 PCB mount plastic case.

Featuring a 2:1 input voltage range of 4.5 to 9VDC or 9 to 18VDC with regulated single outputs of 3.3,  5, 12 & 15VDC, dual outputs ±3.3, ±5, ±12 & ±15VDC.

Remote On/Off, short circuit & overload protection are standard. Operating temperature range is from -20°C to +100°C, with derating above +60°C.



datasheet Contact us

Features

  • Regulated single & dual outputs
  • 2:1 input range
  • Single outputs 3.3 to 15VDC
  • Dual outputs ±3.3 to ±15VDC
  • SIP8 package
  • International medical safety approvals
  • 1.5kVAC isolation
  • 1 x MOPP at 250VAC
  • 2μA patient leakage current
  • -20°C to +100°C operating temperature
  • Full power to +60°C
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
IMM02 IMM0205S3V3 2 W 4.5 to 9 VDC 3.3V 0.606A
IMM02 IMM0205S05 2 W 4.5 to 9 VDC 5V 0.4A
IMM02 IMM0205S12 2 W 4.5 to 9 VDC 12V 0.167A
IMM02 IMM0205S15 2 W 4.5 to 9 VDC 15V 0.133A
IMM02 IMM0205D03 2 W 4.5 to 9 VDC 3.3V, -3.3V 0.303A, -0.303A
IMM02 IMM0205D05 2 W 4.5 to 9 VDC 5V, -5V 0.2A, -0.2A
IMM02 IMM0205D12 2 W 4.5 to 9 VDC 12V, -12V 0.083A, -0.083A
IMM02 IMM0205D15 2 W 4.5 to 9 VDC 15V, -15V 0.066A, -0.066A
IMM02 IMM0212S3V3 2 W 9 to 18 VDC 3.3V 0.606A
IMM02 IMM0212S05 2 W 9 to 18 VDC 5V 0.4A
IMM02 IMM0212S12 2 W 9 to 18 VDC 12V 0.167A
IMM02 IMM0212S15 2 W 9 to 18 VDC 15V 0.133A
IMM02 IMM0212D03 2 W 9 to 18 VDC 3.3V, -3.3V 0.303A, -0.303A
IMM02 IMM0212D05 2 W 9 to 18 VDC 5V, -5V 0.2A, -0.2A
IMM02 IMM0212D12 2 W 9 to 18 VDC 12V, -12V 0.083A, -0.083A
IMM02 IMM0212D15 2 W 9 to 18 VDC 15V, -15V 0.066A, -0.066A

Specifications


Dimensions

IMM02: 0.86 x 0.36 x 0.44‚ (21.85 x 9.2 x 11.1 mm)

Input Voltage

4.5 to 9VDC (5V nominal) 9 to 18VDC (12V nominal)

Efficiency

79% max

Operating Temperature

-20 to +100°C , derate from 100% load at +60°C to 50% at +80°C

Isolation

150 VAC Input to Output, at 250VAC working voltage, 1 x MOPP

Worldwide Safety Approvals

IEC60601-1

European Safety Approvals

EN60601-1

US Safety Approvals

ANSI/AMMI ES60601-1 CSA C22.2 No. 60601-1

Other Safety Approvals

CE (Meets all applicable directives), UKCA (Meets all applicable legislation)

EMC

EN55011 Class B conducted and radiated
