DC-DC Converters
IMM05 Series

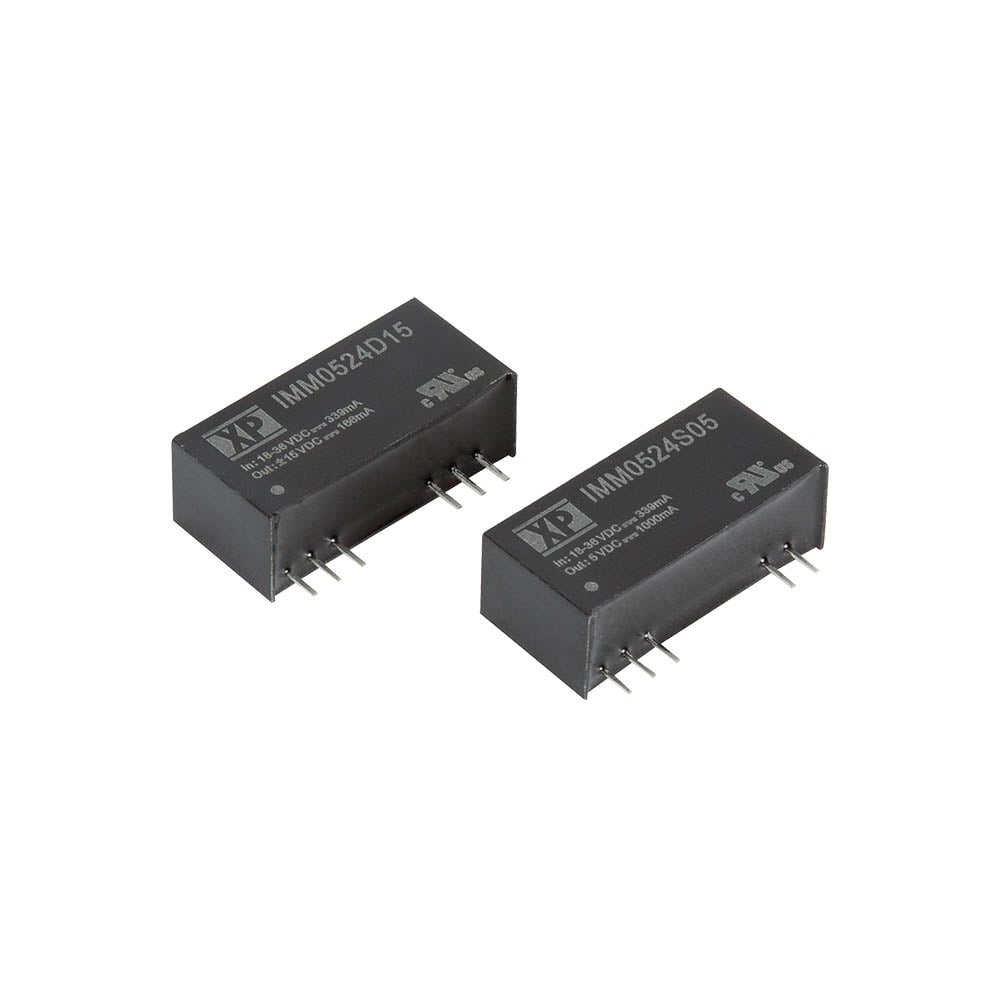

2:1 input, 5W, regulated, DC-DC converters in a SIP9 PCB mount package for medical (1 x MOPP @250VAC) applications
The 5W IMM05 series is designed for medical applications with 1 x MOPP @250VAC, 1.5kVAC isolation and 2µA patient leakage current, it is housed in a SIP9 PCB mount plastic case.
Featuring a 2:1 input voltage ranges of 4.5 to 9VDC, 9 to 18VDC or 18 to 36VDCwith regulated single outputs of 3.3, 5, 12 & 15VDC, dual outputs ±12 & ±15VDC.
Remote On/Off, short circuit & overload protection are standard. Operating temperature range is from -20°C to +100°C, with derating above +60°C.
datasheet Contact us
Features
- Regulated single & dual outputs
- 2:1 input range
- Single outputs 3.3 to 15VDC
- Dual outputs ±12 & ±15VDC
- SIP9 package
- International medical safety approvals
- 1.5kVAC isolation
- 1 x MOPP at 250VAC
- 2μA patient leakage current
- Remote On/Off
- -20°C to +100°C operating temperature
- Full power to +60°C
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
IMM0505S3V3 | 5 W | 4.5 to 9 VDC | 3.3V | 1.2A |
|
|
|
|
|
IMM0505S05 | 5 W | 4.5 to 9 VDC | 5V | 1A |
|
|
|
|
|
IMM0505S12 | 5 W | 4.5 to 9 VDC | 12V | 0.416A |
|
|
|
|
|
IMM0505S15 | 5 W | 4.5 to 9 VDC | 15V | 0.333A |
|
|
|
|
|
IMM0505D12 | 5 W | 4.5 to 9 VDC | 12V, -12V | 0.208A, -0.208A |
|
|
|
|
|
IMM0505D15 | 5 W | 4.5 to 9 VDC | 15V, -15V | 0.166A, -0.166A |
|
|
|
|
|
IMM0512S3V3 | 5 W | 9 to 18 VDC | 3.3V | 1.2A |
|
|
|
|
|
IMM0512S05 | 5 W | 9 to 18 VDC | 5V | 1A |
|
|
|
|
|
IMM0512S12 | 5 W | 9 to 18 VDC | 12V | 0.416A |
|
|
|
|
|
IMM0512S15 | 5 W | 9 to 18 VDC | 15V | 0.333A |
|
|
|
|
|
IMM0512D12 | 5 W | 9 to 18 VDC | 12V, -12V | 0.208A, -0.208A |
|
|
|
|
|
IMM0512D15 | 5 W | 9 to 18 VDC | 15V, -15V | 0.166A, -0.166A |
|
|
|
|
|
IMM0524S3V3 | 5 W | 18 to 36 VDC | 3.3V | 1.2A |
|
|
|
|
|
IMM0524S05 | 5 W | 18 to 36 VDC | 5V | 1A |
|
|
|
|
|
IMM0524S12 | 5 W | 18 to 36 VDC | 12V | 0.416A |
|
|
|
|
|
IMM0524S15 | 5 W | 18 to 36 VDC | 15V | 0.333A |
|
|
|
|
|
IMM0524D12 | 5 W | 18 to 36 VDC | 12V, -12V | 0.208A, -0.208A |
|
|
|
|
|
IMM0524D15 | 5 W | 18 to 36 VDC | 15V, -15V | 0.166A, -0.166A |
|
|
|
Specifications
Dimensions
IMM05: 1.02 x 0.36 x 0.49‚ (26.0 x 9.3 x 12.5 mm)
Input Voltage
4.5 to 9VDC 9 to 18VDC 18.0-36.0VDC
Efficiency
0.82
Operating Temperature
-20 to +100°C (Derate from 100% load at +60°C to 50% at +80°C)
Isolation
1500VAC Input to Output, at 250VAC working voltage, 1 x MOPP, 60s
Worldwide Safety Approvals
IEC60601-1
European Safety Approvals
EN60601-1
US Safety Approvals
ANSI/AMMI ES60601-1, CSA C22.2 No. 60601-1
Other Safety Approvals
CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
EMC
EN55011 Class B conducted and radiated
