DC-DC Converters
JHL06 Series
1.5:1 input, 6W, regulated, DC-DC converters in a DIP24 PCB mount package for medical (2 x MOPP) applications

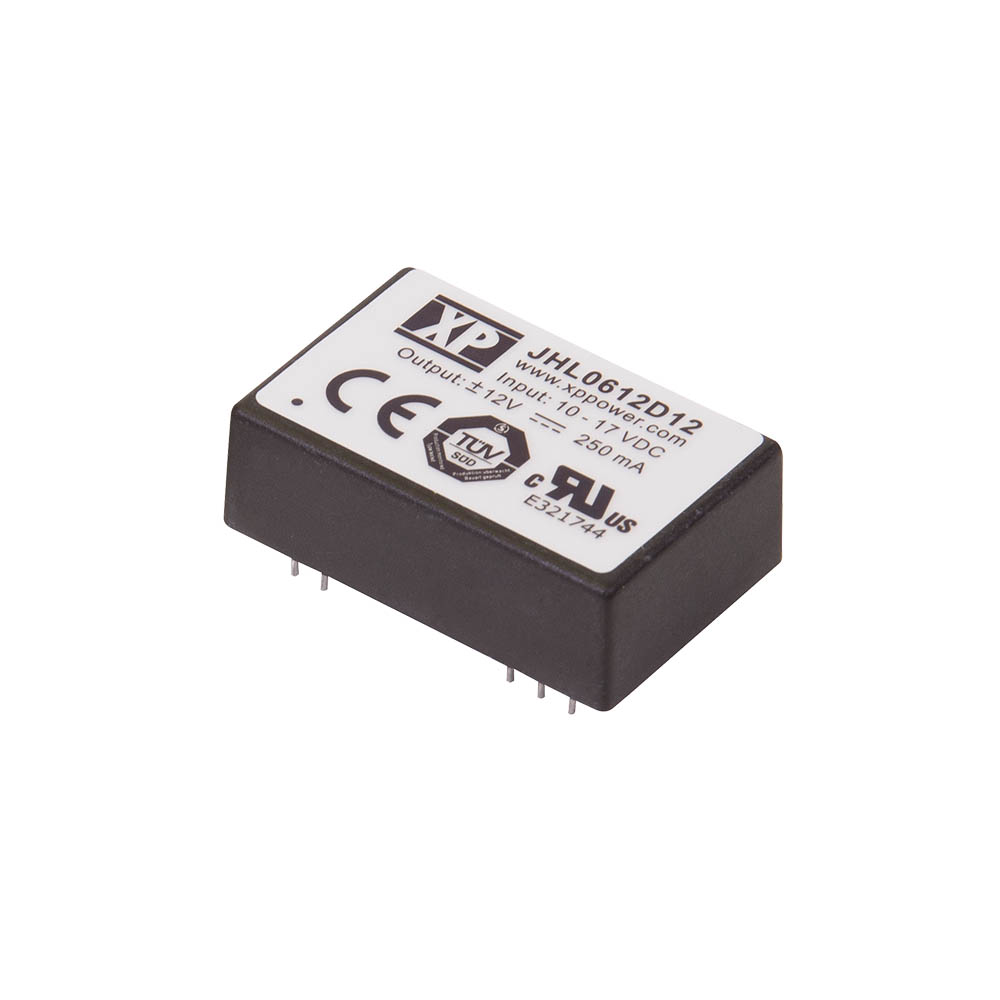

The 6W JHL06 series is designed for medical applications with 2 x MOPP 4kVAC reinforced isolation and 2µA patient leakage current, it is housed in a DIP24 PCB mount plastic case.
Featuring a 1.5:1 input voltage range of 10 to 17VDC or 20 to 30VDC with regulated single outputs of 5, 12 & 15VDC, dual outputs ±12 & ±15VDC, adjustable +/-10% with a trim resistor.
Remote on/off is standard as are short circuit, overload & over voltage protection. Operating temperature range is from -20°C to +80°C, with derating above +60°C.
datasheet Contact us
Features
- Regulated single & dual outputs
- 1.5:1 input range
- Single outputs 5.0 to 15VDC
- Dual outputs ±12 & ±15VDC
- DIP24 package
- International medical safety approvals
- 4.0kVAC reinforced isolation
- 2 x MOPP at 250VAC
- 2μA patient leakage current
- EN55011 Class A with no external components
- -20°C to +80°C operating temperature
- Full power to +60°C
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
JHL0612S05 | 6 W | 10 to 17 VDC | 5V | 1.2A |
|
|
|
|
|
JHL0612S12 | 6 W | 10 to 17 VDC | 12V | 0.5A |
|
|
|
|
|
JHL0612S15 | 6 W | 10 to 17 VDC | 15V | 0.4A |
|
|
|
|
|
JHL0612D12 | 6 W | 10 to 17 VDC | 12V, -12V | 0.25A, -0.25A |
|
|
|
|
|
JHL0612D15 | 6 W | 10 to 17 VDC | 15V, -15V | 0.2A, -0.2A |
|
|
|
|
|
JHL0624S05 | 6 W | 20 to 30 VDC | 5V | 1.2A |
|
|
|
|
|
JHL0624S12 | 6 W | 20 to 30 VDC | 12V | 0.5A |
|
|
|
|
|
JHL0624S15 | 6 W | 20 to 30 VDC | 15V | 0.4A |
|
|
|
|
|
JHL0624D12 | 6 W | 20 to 30 VDC | 12V, -12V | 0.25A, -0.25A |
|
|
|
|
|
JHL0624D15 | 6 W | 20 to 30 VDC | 15V, -15V | 0.2A, -0.2A |
|
|
|
Specifications
Dimensions
JHL06: 1.25 x 0.80 x 0.40‚ (31.15 x 20.32 x 10.20 mm)
Input Voltage
10 to 17 VDC (12V nominal) 20 to 30 VDC (12V nominal)
Efficiency
80% typical
Operating Temperature
-20 °C to +80 °C
Isolation
4000 VAC for 1 min. Double/reinforced with a working voltage of 250 VAC. Meets 2 x MOPP per 3rd edition of IEC60601-1 5000 VAC for 10 ms in accordance with IEC60664-1
Worldwide Safety Approvals
IEC60601-1 Including Risk Management
US Safety Approvals
ANSI/AAMI ES60601-1 3rd Ed. & CSA C22.2, No.60601-1:2008
Other Safety Approvals
CE & UKCA meets all applicable directives & legislation
EMC
EN55011 Level A conducted & radiated
