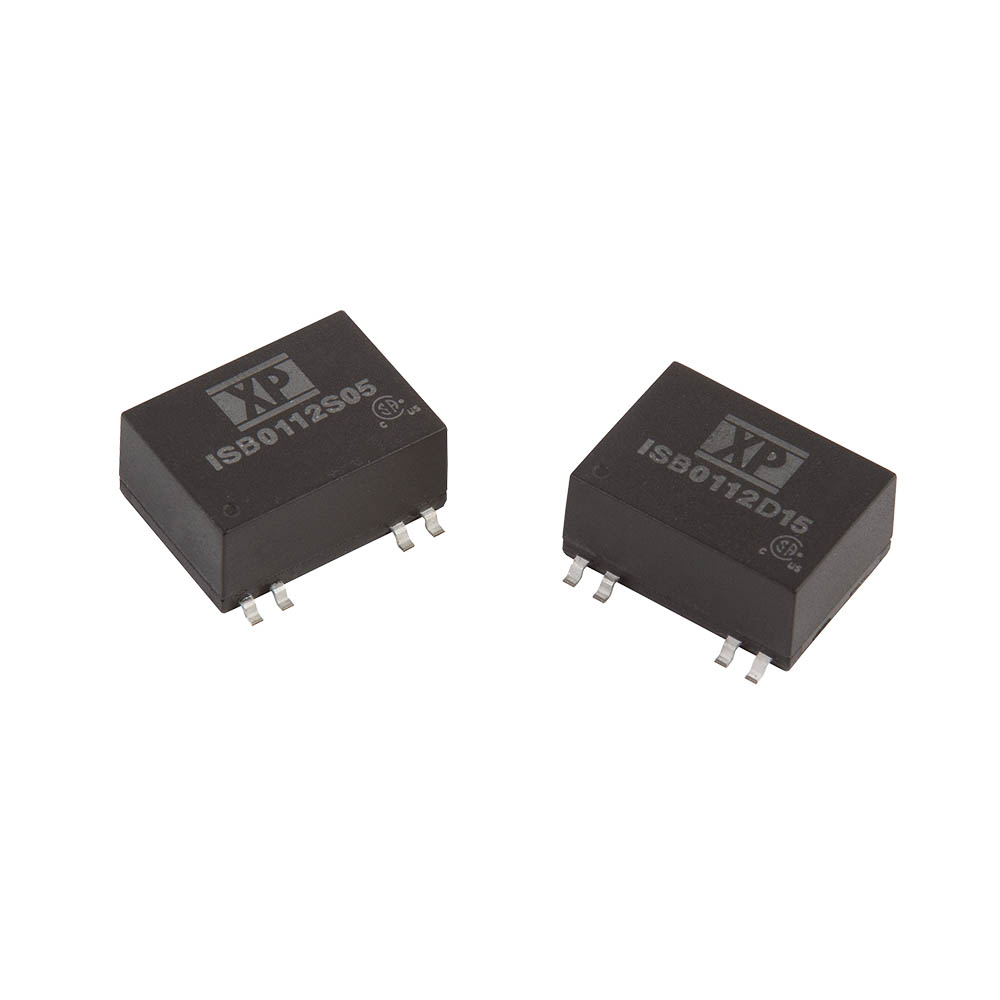

DC-DC Converters
ISB01 Series
- Regulated Single & Dual Output
- 2:1 Input Range
- Compact SMD Package
- 1500 VDC Isolation
- Operating Temperature -40 °C to +95 °C
- Remote On/Off
- Tape & Reel Package Available
- Optional Water Washable Versions
- 3 Year Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
|
ISB0105S05 | 1 W | 4.5 to 9 VDC | 5V | 0.2A |
|
|
|
|
|
ISB0105S12 | 1 W | 4.5 to 9 VDC | 12V | 0.083A |
|
|
|
|
|
ISB0105S15 | 1 W | 4.5 to 9 VDC | 15V | 0.067A |
|
|
|
|
|
ISB0105D12 | 1 W | 4.5 to 9 VDC | 12V, -12V | 0.042A, -0.042A |
|
|
|
|
|
ISB0105D15 | 1 W | 4.5 to 9 VDC | 15V, -15V | 0.033A, -0.033A |
|
|
|
|
|
ISB0112S05 | 1 W | 9 to 18 VDC | 5V | 0.2A |
|
|
|
|
|
ISB0112S12 | 1 W | 9 to 18 VDC | 12V | 0.083A |
|
|
|
|
|
ISB0112S15 | 1 W | 9 to 18 VDC | 15V | 0.067A |
|
|
|
|
|
ISB0112D12 | 1 W | 9 to 18 VDC | 12V, -12V | 0.042A, -0.042A |
|
|
|
|
|
ISB0112D15 | 1 W | 9 to 18 VDC | 15V, -15V | 0.033A, -0.033A |
|
|
|
|
|
ISB0124S05 | 1 W | 18 to 36 VDC | 5V | 0.2A |
|
|
|
|
|
ISB0124S12 | 1 W | 18 to 36 VDC | 12V | 0.083A |
|
|
|
|
|
ISB0124S15 | 1 W | 18 to 36 VDC | 15V | 0.067A |
|
|
|
|
|
ISB0124D12 | 1 W | 18 to 36 VDC | 12V, -12V | 0.042A, -0.042A |
|
|
|
|
|
ISB0124D15 | 1 W | 18 to 36 VDC | 15V, -15V | 0.033A, -0.033A |
|
|
|
|
|
ISB0148S05 | 1 W | 36 to 75 VDC | 5V | 0.2A |
|
|
|
|
|
ISB0148S12 | 1 W | 36 to 75 VDC | 12V | 0.083A |
|
|
|
|
|
ISB0148S15 | 1 W | 36 to 75 VDC | 15V | 0.067A |
|
|
|
|
|
ISB0148D12 | 1 W | 36 to 75 VDC | 12V, -12V | 0.042A, -0.042A |
|
|
|
|
|
ISB0148D15 | 1 W | 36 to 75 VDC | 15V, -15V | 0.033A, -0.033A |
|
|
|
Specifications
Dimensions
ISB01: 0.74 x 0.68 x 0.34‚ (18.9 x 17.2 x 8.7 mm)
Input Voltage
4.5 to 9 VDC (5 V nominal) 9 to 18 VDC (12 V nominal) 18 to 36 VDC (24 nominal) 36 to 75 VDC (48 nominal)
Efficiency
80% (see Models and Ratings table)
Operating Temperature
-40 to +95 °C (See datasheet)
Isolation
1500/1800 VDC min 60s/1s
Worldwide Safety Approvals
IEC60950-1 (ITE)
European Safety Approvals
EN55022 Class A
US Safety Approvals
UL/cUL60950-1 (ITE)
