DC-DC Converters

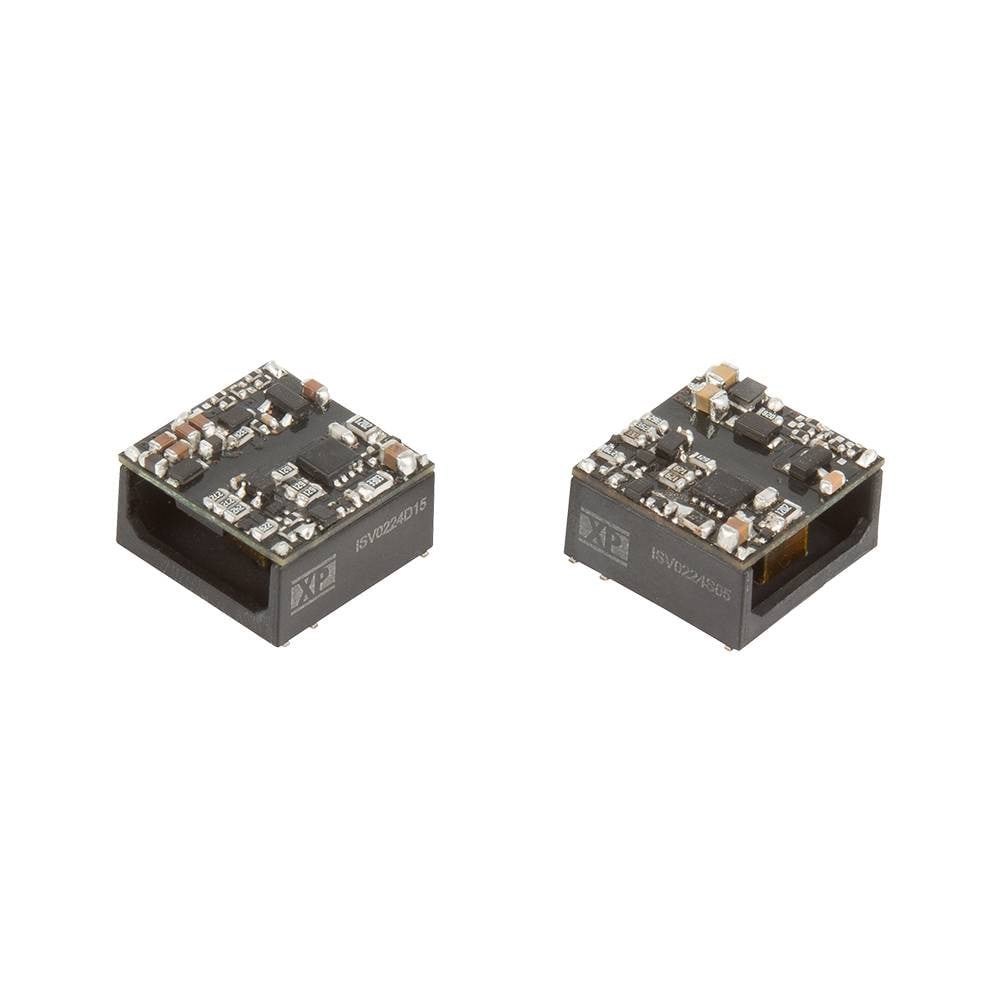

ISV02 Series
- Single & dual regulated outputs
- Wide 4:1 input range
- Compact SMD Package
- Ultra-compact SMD package
- 3.0kV isolation qualification tested
- Class A conducted emissions
- Tape & reel package available
- -40°C to +75°C operating temperature
- Full power to +75°C
- 3 Year Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
|
ISV0212S05 | 2 W | 4.5 to 18 VDC | 5V | 0.4A |
|
|
|
|
|
ISV0212S12 | 2 W | 4.5 to 18 VDC | 12V | 0.167A |
|
|
|
|
|
ISV0212S15 | 2 W | 4.5 to 18 VDC | 15V | 0.133A |
|
|
|
|
|
ISV0212D12 | 2 W | 4.5 to 18 VDC | 12V, -12V | 0.083A, 0.083A |
|
|
|
|
|
ISV0212D15 | 2 W | 4.5 to 18 VDC | 15V, -15V | 0.067A, 0.067A |
|
|
|
|
|
ISV0224S05 | 2 W | 9 to 36 VDC | 5V | 0.4A |
|
|
|
|
|
ISV0224S12 | 2 W | 9 to 36 VDC | 12V | 0.167A |
|
|
|
|
|
ISV0224S15 | 2 W | 9 to 36 VDC | 15V | 0.133A |
|
|
|
|
|
ISV0224D12 | 2 W | 9 to 36 VDC | 12V, -12V | 0.083A, 0.083A |
|
|
|
|
|
ISV0224D15 | 2 W | 9 to 36 VDC | 15V, -15V | 0.067A, 0.067A |
|
|
|
Specifications
Dimensions
ISV02: 0.58 x 0.56 x 0.35 in (14.65 x 14.40 x 8.95 mm)
Input Voltage
12V (4.5 - 18V), 24V (9 - 36V)
Efficiency
80% ( see datasheet)
Operating Temperature
-40 to +75°C
Isolation
Input to Output: 3000VDC (60s qualification test, 3s production test. Working voltage 100 Vrms/150VDC insulation designation for safety approvals: functional)
EMC
Conducted & Radiated: EN55032, Class A
