IM Series

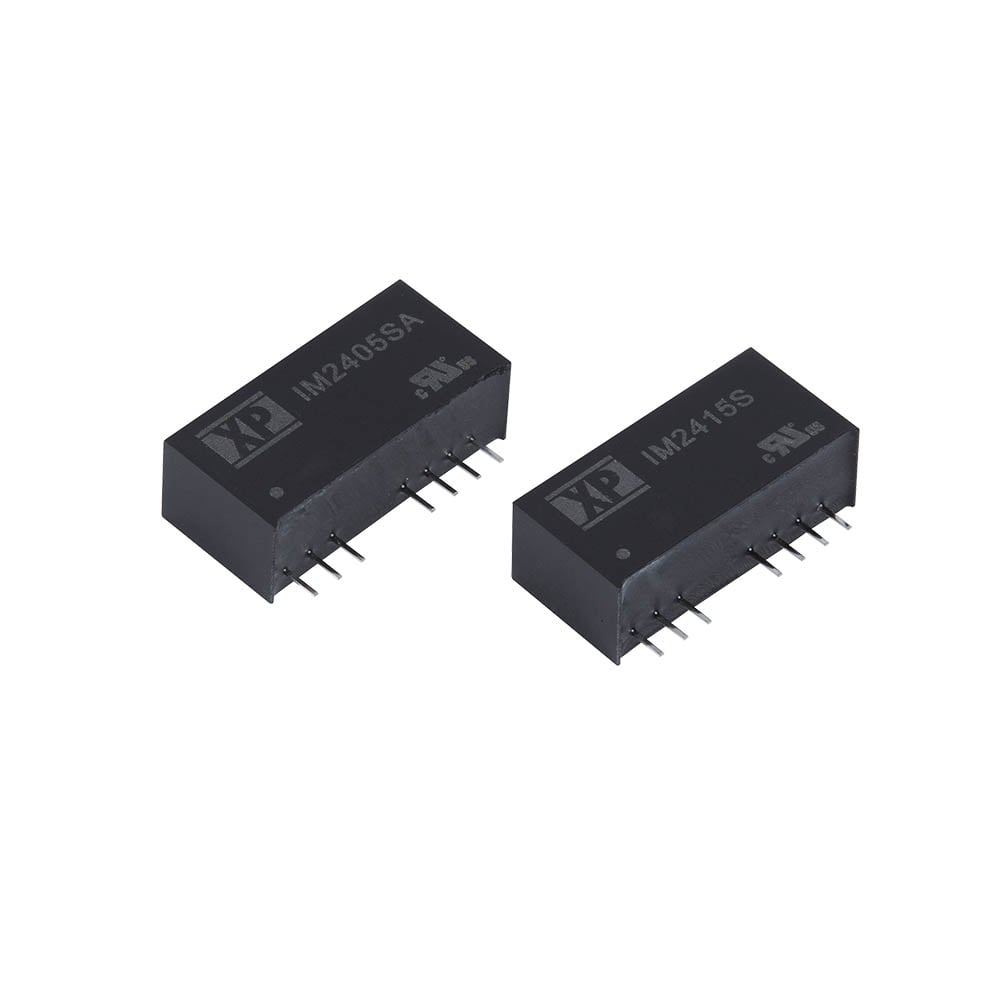

4:1 input, 2W, regulated, DC-DC converters in a SIP9 PCB mount package
The IM series is housed in a SIP9 PCB mount plastic package.
Featuring a 4:1 input voltage range of 9 to 36VDC or 18 to 75VDC with both single and dual outputs, singles have 3.3, 5, 12 or 15VDC with duals having ±5, ±12 or ±15VDC.
The 2W IM has regulated outputs and provides 1.5kVDC isolation between input and output, remote On/Off & short circuit protection are standard.
Operating temperature range is from -40°C to +100°C, with derating above +75°C.
Features
- Regulated single & dual outputs
- 4:1 input range
- Single outputs 3.3 to 15VDC
- Dual outputs ±5.0 to ±15VDC
- SIP9 package
- 1.5kVDC isolation
- Continuous short circuit protection
- Remote On/Off
- -40°C to +85°C operating temperature
- Full power to +75°C
- 3 year warranty
| Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
|---|---|---|---|---|---|---|---|---|
|
IM2403SA | 2W | 9 to 36VDC | 3.3V | 0.5A | Datasheet | Stock | RFQ |
|
|
IM2405S | 2W | 9 to 36VDC | 5V, -5V | 0.2A, 0.2A | Datasheet | Stock | RFQ |
|
|
IM2405SA | 2W | 9 to 36VDC | 5V | 0.4A | Datasheet | Stock | RFQ |
|
|
IM2412S | 2W | 9 to 36VDC | 12V, -12V | 0.085A, 0.085A | Datasheet | Stock | RFQ |
|
|
IM2412SA | 2W | 9 to 36VDC | 12V | 0.165A | Datasheet | Stock | RFQ |
|
|
IM2415S | 2W | 9 to 36VDC | 15V, -15V | 0.065A, 0.065A | Datasheet | Stock | RFQ |
|
|
IM2415SA | 2W | 9 to 36VDC | 15V | 0.135A | Datasheet | Stock | RFQ |
|
|
IM4803SA | 2W | 18 to 75VDC | 3.3V | 0.5A | Datasheet | Stock | RFQ |
|
|
IM4805S | 2W | 18 to 75VDC | 5V, -5V | 0.2A, 0.2A | Datasheet | Stock | RFQ |
|
|
IM4805SA | 2W | 18 to 75VDC | 5V | 0.4A | Datasheet | Stock | RFQ |
|
|
IM4812S | 2W | 18 to 75VDC | 12V, -12V | 0.085A, 0.085A | Datasheet | Stock | RFQ |
|
|
IM4812SA | 2W | 18 to 75VDC | 12V | 0.165A | Datasheet | Stock | RFQ |
|
|
IM4815S | 2W | 18 to 75VDC | 15V, -15V | 0.065A, 0.065A | Datasheet | Stock | RFQ |
|
|
IM4815SA | 2W | 18 to 75VDC | 15V | 0.135A | Datasheet | Stock | RFQ |
