IT Series

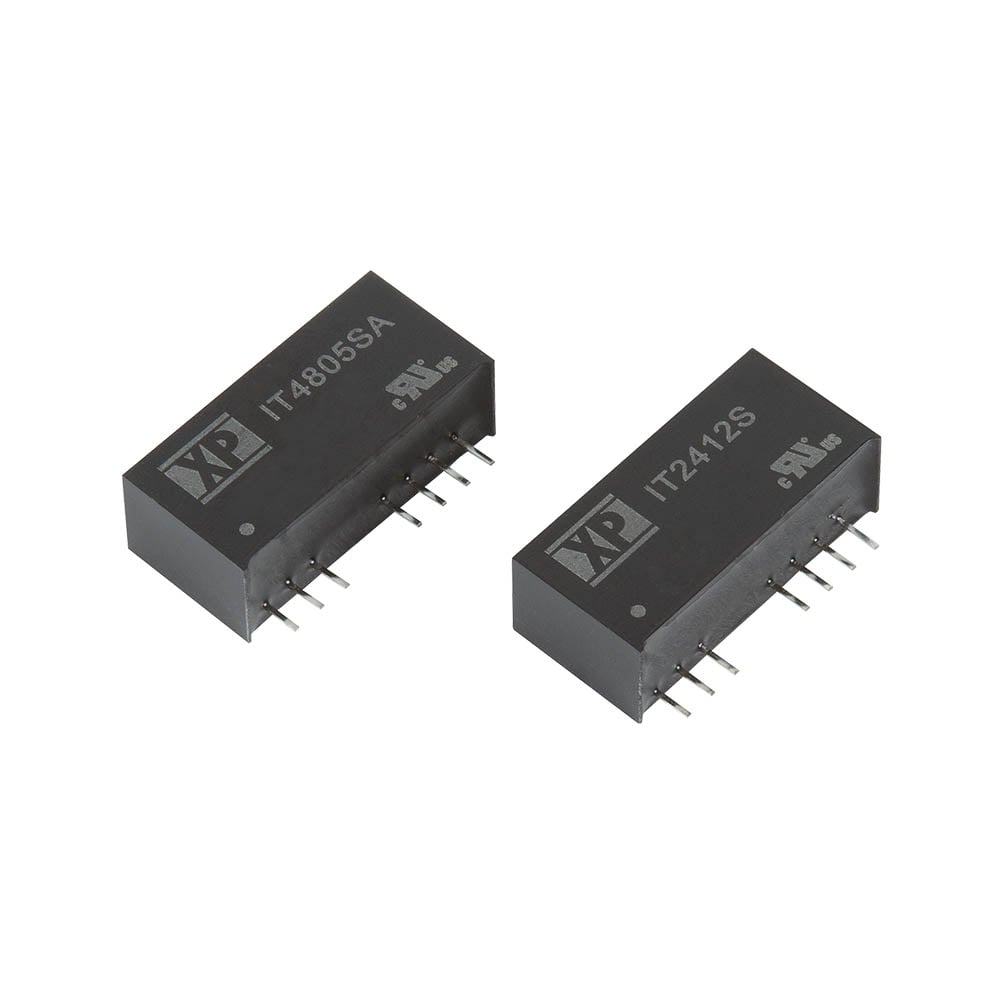

4:1 input, 3W, regulated, DC-DC converters in a SIP9 PCB mount package
The IT series is housed in a SIP9 plastic case. Featuring a 4:1 input voltage range of 9 to 36VDC or 18 to 75VDC with both single and dual outputs, singles have 3.3, 5, 12 or 15VDC with duals having ±5, ±12 & ±15VDC.
The 3W IT provides 1.5kVDC isolation between input and output, the output has short circuit protection, remote On/Off is standard. The operating temperature range is from -40°C to +100°C, with derating above +75°C.
Features
Regulated single & dual outputs
4:1 input range
Single outputs 3.3 to 15VDC
Dual outputs ±5.0 to ±15VDC
SIP9 package
1.5kVDC isolation
Remote On/Off
-40°C to +100°C operating temperature
Full power to +75°C
3 year warranty
| Model number | Power | Input voltage | Output voltage | Output current | Actions |
|---|---|---|---|---|---|
| 3W | 9 to 36 VDC | 3.3V | 0.7A | ||
| 3W | 9 to 36 VDC | 5V, -5V | 0.3A, 0.3A | ||
| 3W | 9 to 36 VDC | 5V | 0.6A | ||
| 3W | 9 to 36 VDC | 12V, -12V | 0.125A, 0.125A | ||
| 3W | 9 to 36 VDC | 12V | 0.25A | ||
| 3W | 9 to 36 VDC | 15V, -15V | 0.1A, 0.1A | ||
| 3W | 9 to 36 VDC | 15V | 0.2A | ||
| 3W | 18 to 75 VDC | 3.3V | 0.7A | ||
| 3W | 18 to 75 VDC | 5V, -5V | 0.3A, 0.3A | ||
| 3W | 18 to 75 VDC | 5V | 0.6A | ||
| 3W | 18 to 75 VDC | 12V, -12V | 0.125A, 0.125A | ||
| 3W | 18 to 75 VDC | 12V | 0.25A | ||
| 3W | 18 to 75 VDC | 15V, -15V | 0.1A, 0.1A | ||
| 3W | 18 to 75 VDC | 15V | 0.2A |
