AC-DC Power Supplies
ECS130 Series
130W fan cooled 100W convection cooled 4" x 2" open frame AC-DC power supplies with medical (2 X MOPP) & ITE approvals
Designed for class I or class II applications, the ECS130 can provide 100W convection cooled (70W convection cooled with cover kit fitted) or 130W when fan cooled with >10CFM airflow. It has medical approvals with 2 x MOPP (input to output) and meets IEC/UL/EN62368-1 safety approval for information technology equipment.

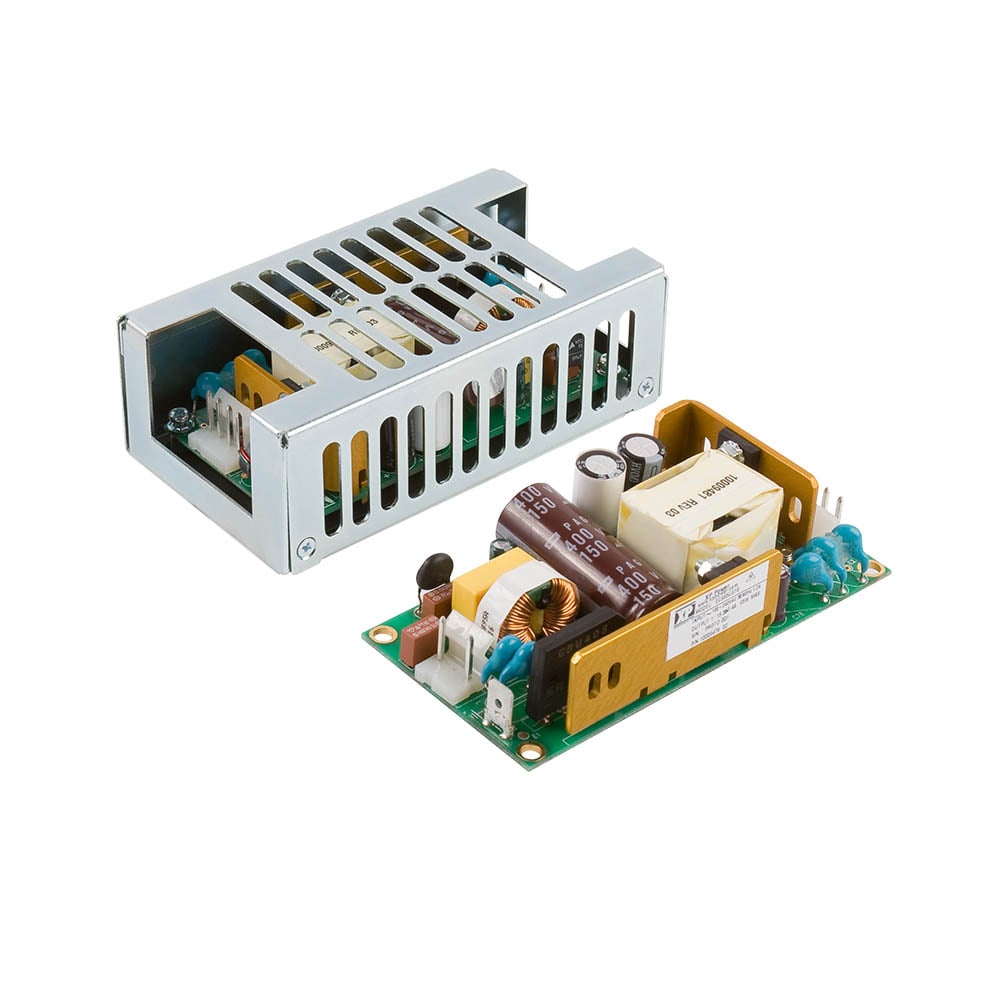

The ECS130 is available in two versions, standard as a 4"" x 2"" open frame with a 1.25"" profile, alternatively, the -C version is supplied with a 4.49"" x 2.52"" x 1.54"" vented cover kit fitted.
With high efficiency, high power density, low leakage currents and medical 2 X MOPP rating, the ECS130 is ideal for medical, industrial electronics and ITE applications requiring a compact, high power density chassis mount power supply.
datasheet Contact us
Features
- 130W fan cooled 100W convection cooled
- 4” x 2” footprint, 1.05" profile
- Regulated single outputs 12V to 48VDC
- Input range 80 to 264VAC
- ITE & medical safety approvals
- Class I & class II construction
- <0.5W no load input power
- Low leakage current
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
ECS130US12 | 130 W | Single Phase | 12V | 10.9A |
|
|
|
|
|
ECS130US15 | 130 W | Single Phase | 15V | 8.7A |
|
|
|
|
|
ECS130US18 | 130 W | Single Phase | 18V | 7.3A |
|
|
|
|
|
ECS130US24 | 130 W | Single Phase | 24V | 5.4A |
|
|
|
|
|
ECS130US28 | 130 W | Single Phase | 28V | 4.7A |
|
|
|
|
|
ECS130US48 | 130 W | Single Phase | 48V | 2.7A |
|
|
|
Specifications
Dimensions
ECS130: 4.00 x 2.00 x 1.28 in (101.6 x 50.8 x 32.5 mm)
Input Voltage
80-264 VAC (275 VAC ECS65) (120-370 VDC), derate output power <90 VAC, see datasheet
No Load Input Power
<0.5 W
Harmonic Currents
EN61000-3-2, class A
Efficiency
Up to 90%
Operating Temperature
-20°C to +70°C derate linearly from +50°C at 2.5%/°C to 50% load at +70°C
Isolation
4000 VAC Input to Output 2 x MOPP 1500 VAC Input to Ground 1 x MOPP 500 VDC Output to Ground 1 x MOPP
Worldwide Safety Approvals
IEC60950-1:2005 Ed 2 / IEC62368-1:2014
European Safety Approvals
UL 62368-1 & CAN/CSA C22.2 No. 62368-1-14
US Safety Approvals
UL 62368-1 & CAN/CSA C22.2 No. 62368-1-14
Other Safety Approvals
ANSI/AMMI ES60601-1, CE & UKCA meets all applicable directives & legislation
EMC
EN55011/32 level B conducted EN55011/32 level A radiated, level B Suffix ‘-B’ models
