DTE20 Series

DC-DC Converters

DTE20 Series

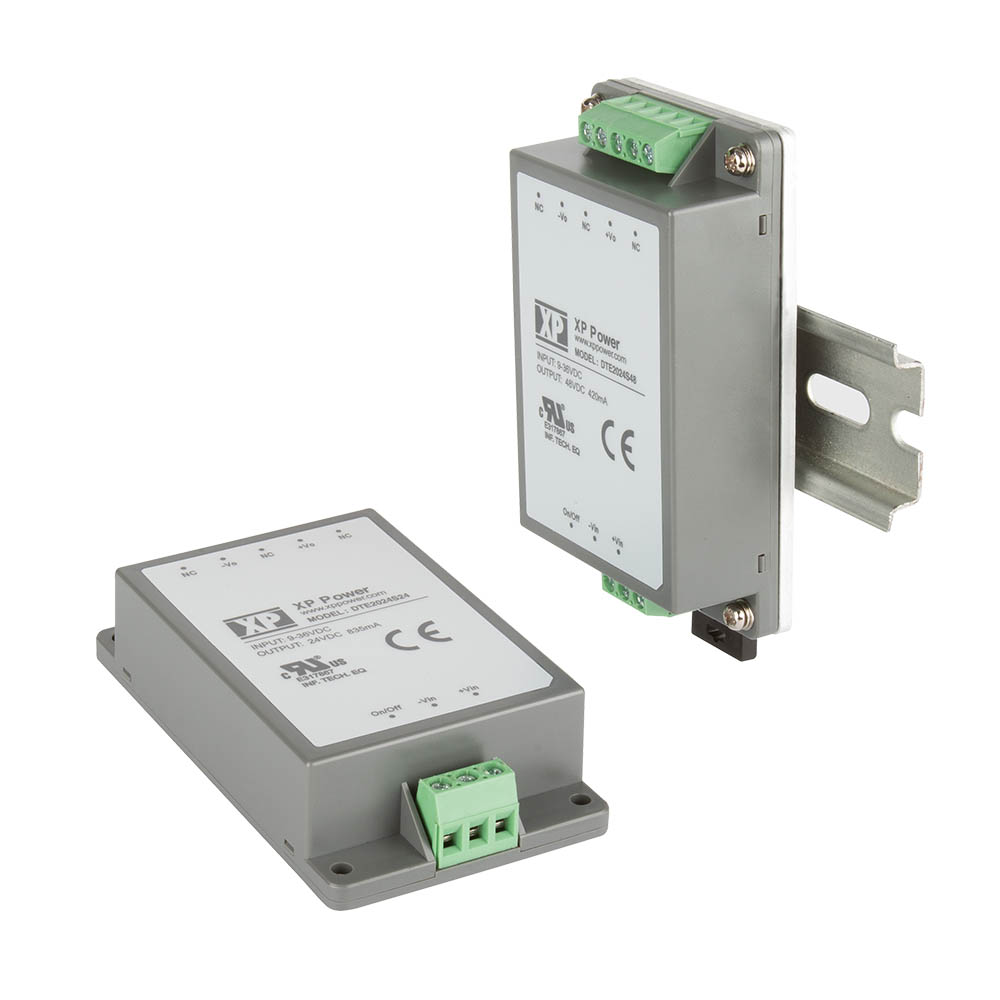

20W 4:1 DC-DC converter in a chassis mount as standard, or DIN rail mount as an option

Available in two wide (4:1) input ranges for nominal 24VDC & 48VDC, the DTE20 series of encapsulated 20W DC-DC converters are chassis mount as standard or can be ordered with a DIN rail mount.

They have screw terminals for ease of connection and an LED provides clear ‘power good’ indication. Remote On/Off is standard and when inhibited the standby current is just 3mA. Isolation is 2.5kVDC input/output providing excellent separation between supply and load. The modules are fully protected against input undervoltage, short circuit and overload conditions.

These features, along with a rugged design and wide operating temperature range make the DTE20 series suitable for a variety of commercial and industrial electronics applications.


datasheet Contact us


  • Regulated single output
  • 4:1 input range
  • Single outputs 5.1 to 48VDC
  • Fully encapsulated chassis mount
  • DIN rail mount option
  • 3.0kVDC isolation
  • EN55032 Class A with no external components
  • Remote On/Off
  • -40°C to +95°C operating temperature
  • Full power to +85°C
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
DTE20 DTE2024S5V1 20 W 9 to 36 VDC 5.1V 4A
DTE20 DTE2024S12 20 W 9 to 36 VDC 12V 1.67A
DTE20 DTE2024S24 20 W 9 to 36 VDC 24V 0.835A
DTE20 DTE2024S48 20 W 9 to 36 VDC 48V 0.42A
DTE20 DTE2048S5V1 20 W 18 to 75 VDC 5.1V 4A
DTE20 DTE2048S12 20 W 18 to 75 VDC 12V 1.67A
DTE20 DTE2048S24 20 W 18 to 75 VDC 24V 0.835A
DTE20 DTE2048S48 20 W 18 to 75 VDC 48V 0.42A



DTE20: 3.78 x 2.13 x 0.92‚ (96.0 x 54.0 x 23.3 mm)

Input Voltage

9 to 36VDC (24V nominal) 18 to 75VDC (48V nominal)


90% typical

Operating Temperature

-40°C to +85°C (See datasheet)


2500 VDC for 60 s

Worldwide Safety Approvals


US Safety Approvals

UL/cUL60950-1, UL/cUL62368-1

Other Safety Approvals

CE & UKCA meets all applicable directives & legislation


EN55032 Level A conducted EN55032 Level A radiated (See datasheet)
