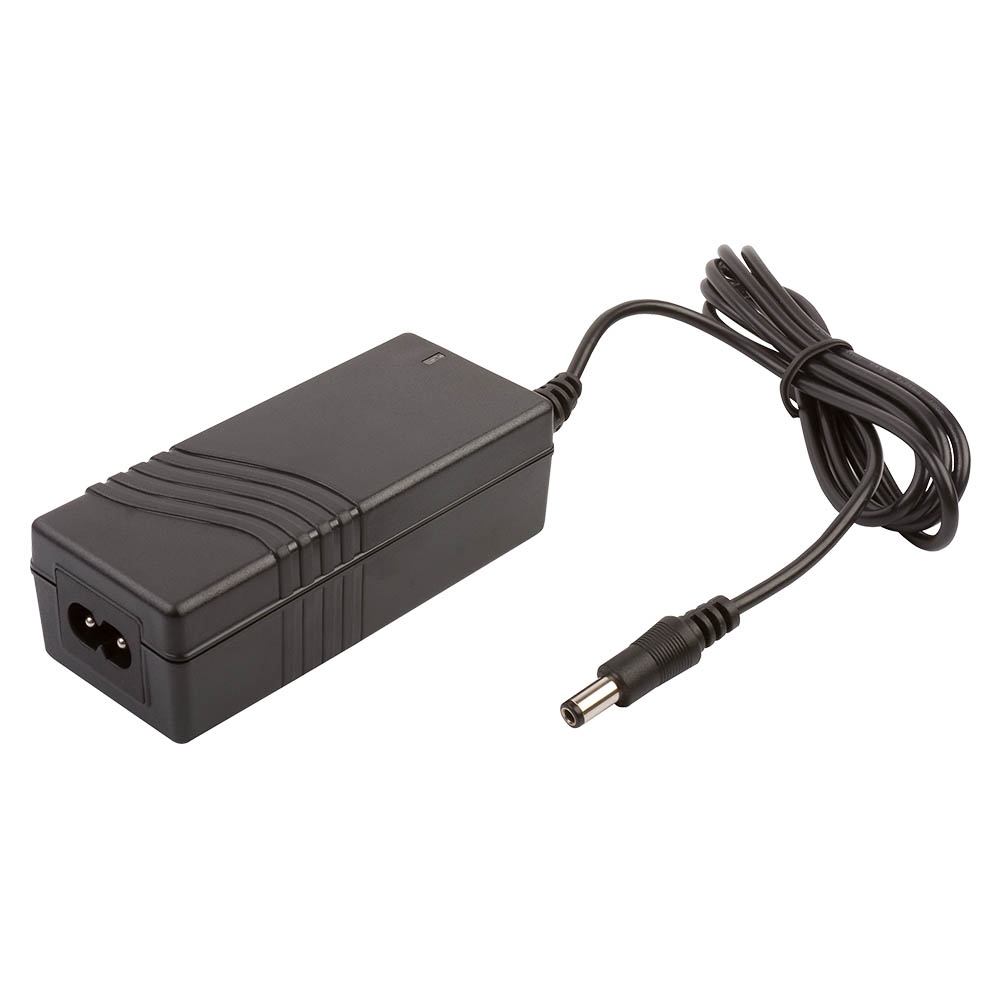

AEL Series

AC-DC Power Supplies

AEL Series

  • Energy Efficiency Level VI for -L6 version
  • CEC 2008 and EISA 2007 Compliant
  • Limited Power Source Approval
  • China Compulsory Certification (CCC) Qualified
  • +60 °C Operating Temperature
  • Compact Dimensions
  • 3 Year Warranty
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
AEL AEL15US08 12 W Single Phase 8V 1.5A
AEL AEL15US05L6 12 W Single Phase 5V 2.4A
AEL AEL15US03 15 W Single Phase 3.3V 2.5A
AEL AEL15US05 15 W Single Phase 5V 2.4A
AEL AEL15US09 15 W Single Phase 9V 1.66A
AEL AEL15US12 15 W Single Phase 12V 1.25A
AEL AEL15US15 15 W Single Phase 15V 1A
AEL AEL15US18 15 W Single Phase 18V 0.83A
AEL AEL15US24 15 W Single Phase 24V 0.62A
AEL AEL15US30 15 W Single Phase 30V 0.5A
AEL AEL15US36 15 W Single Phase 36V 0.42A
AEL AEL15US48 15 W Single Phase 48V 0.31A
AEL AEL15US125L6 15 W Single Phase 12V 1.25A
AEL AEL15US24L6 15 W Single Phase 24V 0.62A
AEL AEL15US48L6 15 W Single Phase 48V 0.31A
AEL AEL20US05-L6 15 W Single Phase 5V 3A
AEL AEL20US05 20 W Single Phase 5V 3A
AEL AEL20US12 20 W Single Phase 12V 1.67A
AEL AEL20US15 20 W Single Phase 15V 1.33A
AEL AEL20US24 20 W Single Phase 24V 0.83A
AEL AEL20US30 20 W Single Phase 30V 0.67A
AEL AEL20US48 20 W Single Phase 48V 0.42A
AEL AEL20US12-L6 20 W Single Phase 12V 1.67A
AEL AEL20US24-L6 20 W Single Phase 24V 0.83A
AEL AEL20US48-L6 20 W Single Phase 48V 0.42A
AEL AEL40US05-L6 25 W Single Phase 5V 5A
AEL AEL40US05 40 W Single Phase 5V 5A
AEL AEL40US08 40 W Single Phase 8V 4.37A
AEL AEL40US09 40 W Single Phase 9V 3.88A
AEL AEL40US12 40 W Single Phase 12V 3.33A
AEL AEL40US15 40 W Single Phase 15V 2.67A
AEL AEL40US18 40 W Single Phase 18V 2.22A
AEL AEL40US24 40 W Single Phase 24V 1.67A
AEL AEL40US36 40 W Single Phase 36V 1.11A
AEL AEL40US48 40 W Single Phase 48V 0.83A
AEL AEL40US12-L6 40 W Single Phase 12V 3.33A
AEL AEL40US24-L6 40 W Single Phase 24V 1.67A
AEL AEL40US48-L6 40 W Single Phase 48V 0.83A
AEL AEL60US12-L6 57 W Single Phase 12V 4.75A
AEL AEL60US12 60 W Single Phase 12V 4.75A
AEL AEL60US15 60 W Single Phase 15V 4.2A
AEL AEL60US18 60 W Single Phase 18V 3.5A
AEL AEL60US24 60 W Single Phase 24V 2.63A
AEL AEL60US30 60 W Single Phase 30V 2.15A
AEL AEL60US36 60 W Single Phase 36V 1.75A
AEL AEL60US48 60 W Single Phase 48V 1.31A
AEL AEL60US24-L6 63 W Single Phase 24V 2.63A
AEL AEL60US48-L6 63 W Single Phase 48V 1.31A
AEL AEL80US12 80 W Single Phase 12V 6.66A
AEL AEL80US15 80 W Single Phase 15V 5.38A
AEL AEL80US18 80 W Single Phase 18V 4.44A
AEL AEL80US24 80 W Single Phase 24V 3.33A
AEL AEL80US30 80 W Single Phase 30V 2.66A
AEL AEL80US36 80 W Single Phase 36V 2.22A
AEL AEL80US48 80 W Single Phase 48V 1.66A
AEL AEL80US12-L6 80 W Single Phase 12V 6.66A
AEL AEL80US24-L6 80 W Single Phase 24V 3.33A
AEL AEL80US48-L6 80 W Single Phase 48V 1.66A

Specifications


Dimensions

AEL15: 3.58 x 1.50 x 1.42 in (91.0 x 38.0 x 36.0 mm) AEL20: 3.90 x 1.65 x 1.22 in (99.0 x 42.0 x 31.0 mm) AEL40: 4.65 x 2.05 x 1.36 in (118.0 x 52.0 x 34.5 mm) AEL80: 5.75 x 2.99 x 1.69 in (146.0 x 76.0 x 43.0 mm)

Input Voltage

90-264 VAC

No Load Input Power

0.5 W maximum, model dependent

Harmonic Currents

EN61000-3-2 class A

Efficiency

68-91%

Operating Temperature

-20 °C to +60 °C, derate linearly from 100% power at +40 °C to 50% power at +60 °C

Isolation

3000 VAC Input to Output 1500 VAC Input to Ground* 500 VDC Output to Ground* *Not C8 version

European Safety Approvals

EN60950-1,

US Safety Approvals

UL/cUL60950-1

Other Safety Approvals

Approved as Limited Power Source (AEL15-60 only), China Compulsory Certification (CCC) qualified

EMC

EN55022 level B conducted & radiated
