AEK60 Series

AC-DC Power Supplies

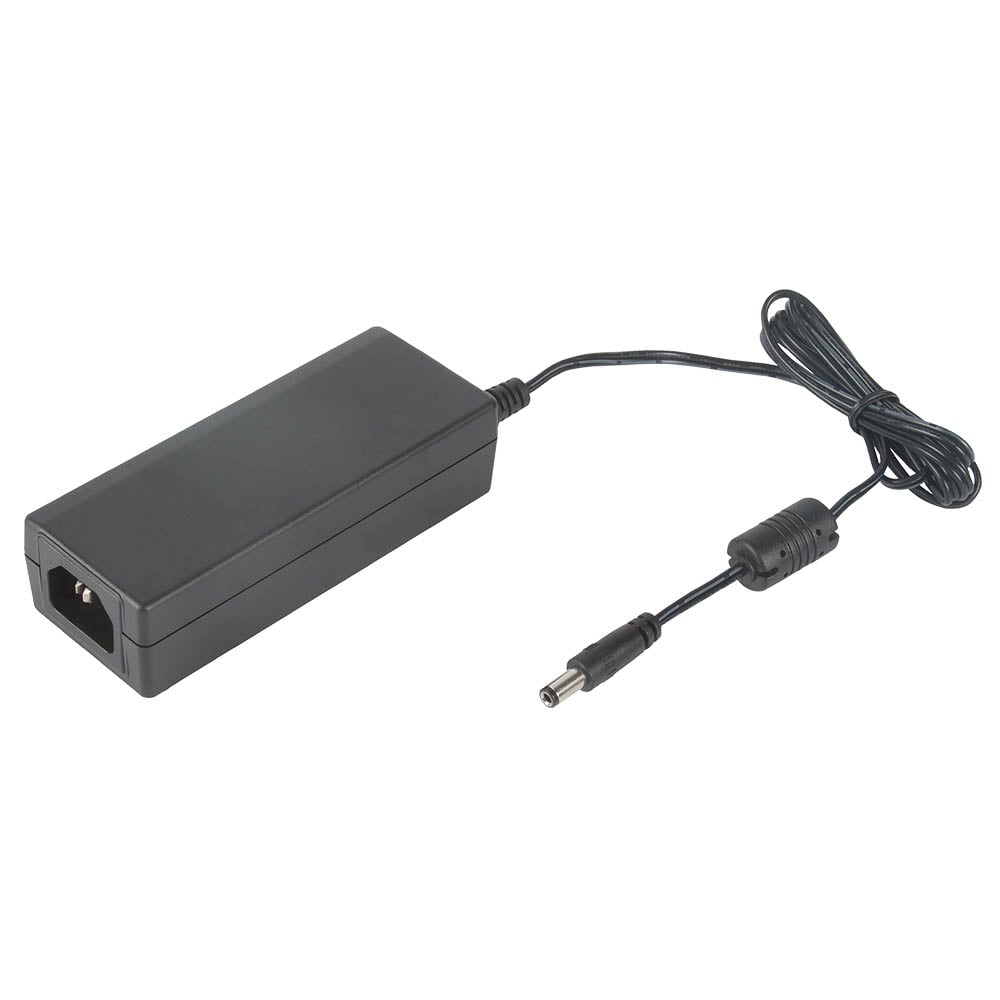

AEK60 Series

60W desktop AC-DC power supplies with ITE approvals

The AEK60 series desktop supplies are an Energy Efficiency Level VI and CoC Tier 2, they have a standby output power of less than 0.15W and an average efficiency of 88-89%. The AEK60 operates from 0°C to +60°C with derating above +40°C.  In addition, they meet Level B limits for radiated and conducted EMC and have safety approvals per EN/IEC/UL 60950-1 standards, making them suitable for an array of industrial electronics & ITE applications.



datasheet Contact us

Features

  • Energy Efficiency Level VI
  • European CoC Tier 2
  • Universal Input
  • <0.15W Standby Power
  • Single Outputs 12 & 48VDC
  • 0°C to 60°C Operation
  • 3 Year Warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
AEK60 AEK60US12 60 W Single Phase 12V 5A
AEK60 AEK60US48 60 W Single Phase 48V 1.25A

Specifications


Dimensions

AEK60: 4.65 x 1.85 x 1.19‚ (118.0 x 47.0 x 30.1 mm)

Input Voltage

90 to 264 VAC

No Load Input Power

150 mW

Harmonic Currents

EN61000-3-2, Class A

Efficiency

89% (See Models and Ratings table and curves)

Operating Temperature

0 to +60 °C, Derate from 100% load at 40 °C to 67% load at 60 °C

Isolation

Input to Ground: 1500 VAC Input to Output: 3000 VAC Input to Ground: 500 VDC

European Safety Approvals

EN62368-1

US Safety Approvals

UL62368-1

Other Safety Approvals

AU/NZ 60950.1, CE & UKCA meets all applicable directives & legislation.

EMC

EN55032, Level B, Conducted & Radiated
