VR20 Series

DC-DC Converters

VR20 Series

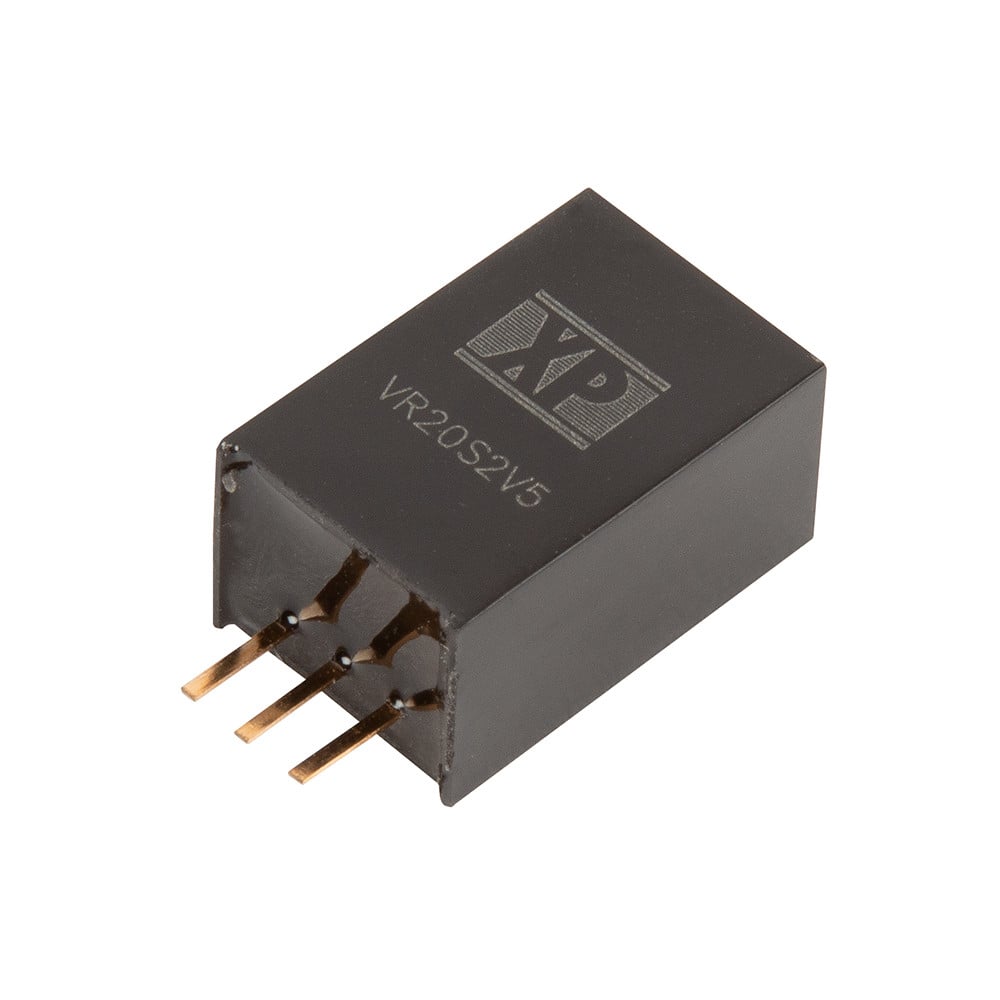

Low Cost 2A VR Series SIP3 Switching Regulators

The 2A VR20 switching regulators provide a competitive low-cost non-isolated point of load (POL) solution without compromising on quality and performance. They are a cost-effective means of step-down voltage conversion in all sorts of ITE & industrial equipment, for instance: Portable & battery-operated equipment; Sensors; Robotics; Telecommunications; Instrumentation; Embedded computing; Distributed DC supply systems requiring regulation but not needing isolation.

datasheet Contact us

Features

  • Non-isolated 2.0A switching regulator
  • Regulated single outputs 2.5 to 15VDC
  • Input range up to 36VDC
  • SIP3 package
  • Low 0.1mA standby input current
  • Short circuit protection
  • High efficiency to 96%
  • Class B conducted & radiated emissions
  • -40°C to +85°C operation
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VR20 VR20S2V5 5 W 4.5 to 36 VDC 2.5V 2A
VR20 VR20S3V3 6.6 W 6 to 36 VDC 3.3V 2A
VR20 VR20S05 10 W 8 to 36 VDC 5V 2A
VR20 VR20S09 18 W 13 to 36 VDC 9V 2A
VR20 VR20S12 24 W 16 to 36 VDC 12V 2A
VR20 VR20S15 30 W 18 to 36 VDC 15V 2A

Specifications


Dimensions

0.453 x 0.689 x 0.354 in (11.5 x 17.5 x 9.0 mm)

Input Voltage

4.5 to 36 VDC

Efficiency

Up to 96%

Operating Temperature

-40 °C to +85 °C. See datasheet

Isolation

Non-isolated

Other Safety Approvals

CE & UKCA meets all applicable directives & legislation

EMC

EN55032 Class B conducted & radiated
