DC-DC Converters

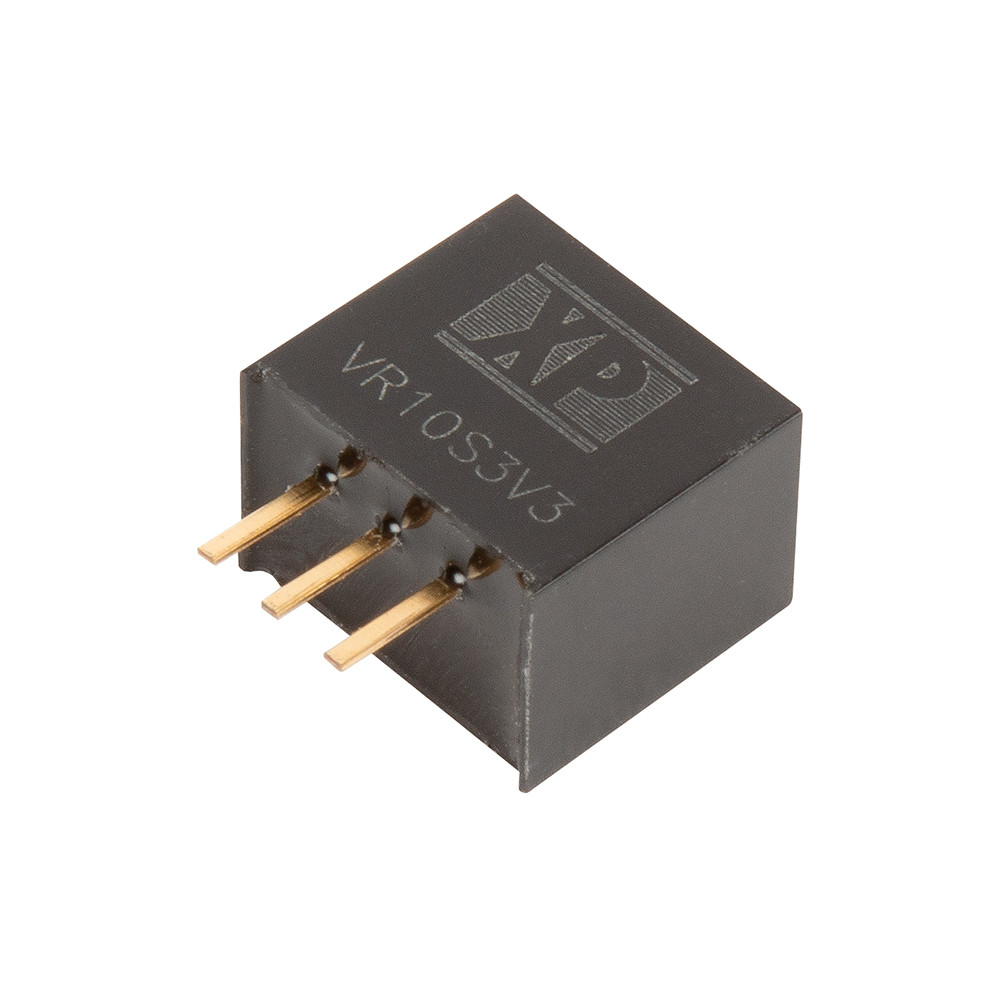

VR10 Series
Low Cost 1A VR Series SIP3 Switching Regulators
The 1A VR10 switching regulators provide a competitive low-cost non-isolated point of load (POL) solution without compromising on quality and performance. They are a cost-effective means of step-down voltage conversion in all sorts of ITE & industrial equipment, for instance: Portable & battery-operated equipment; Sensors; Robotics; Telecommunications; Instrumentation; Embedded computing; Distributed DC supply systems requiring regulation but not needing isolation.
datasheet Contact usFeatures
- Non-isolated 1.0A switching regulator
- Regulated single outputs 3.3 to 15VDC
- Input range up to 36V
- SIP3 package
- Low 0.3mA standby input current
- Short circuit protection
- High efficiency to 96%
- Class B conducted & radiated emissions
- -40°C to +85°C operating temperature
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
VR10S3V3 | 3.3 W | 6 to 36 VDC | 3.3V | 1A |
|
|
|
|
|
VR10S05 | 5 W | 8 to 36 VDC | 5V | 1A |
|
|
|
|
|
VR10S6V5 | 6.5 W | 10 to 36 VDC | 6.5V | 1A |
|
|
|
|
|
VR10S09 | 9 W | 13 to 36 VDC | 9V | 1A |
|
|
|
|
|
VR10S12 | 12 W | 16 to 36 VDC | 12V | 1A |
|
|
|
|
|
VR10S15 | 15 W | 20 to 36 VDC | 15V | 1A |
|
|
|
Specifications
Dimensions
0.457 x 0.409 x 0.315 in. (11.6 x 10.4 x 8.0 mm)
Input Voltage
6 to 36 VDC
Efficiency
Up to 96%
Operating Temperature
-40 °C to +85 °C. See datasheet
Isolation
Non-isolated
Other Safety Approvals
CE & UKCA meets all applicable directives & legislation
EMC
EN55032 Class B conducted & radiated
