AC-DC Power Supplies
VCE03 Series
Low cost, PCB mount, 3W encapsulated and open frame, wide input AC-DC power supplies
The VCE03 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE and industrial electronics applications. Their compact design features an integral EMC filter and hold-up capacitor, so no external components are required.

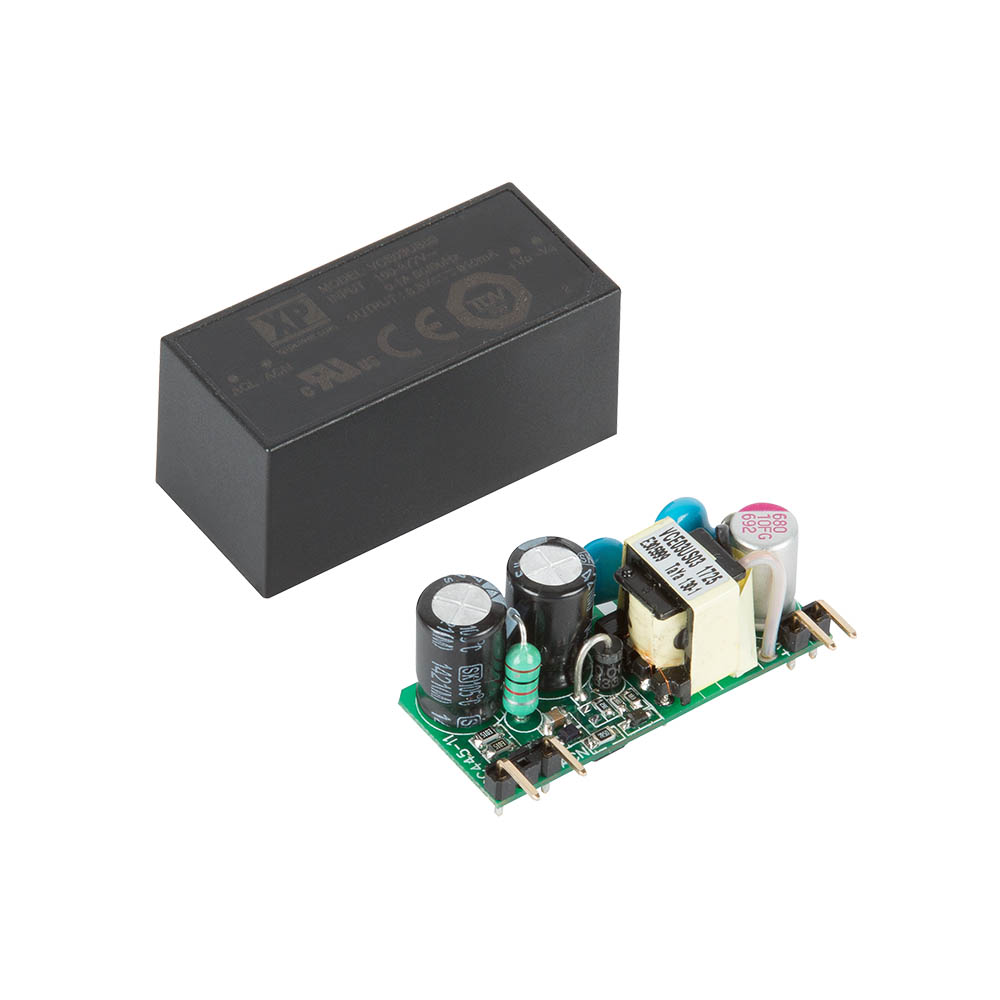

The series provides two mechanical options including open frame and encapsulated SIL PCB mount. With approvals to world-wide safety standards, compliance with class B for conducted and radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit system designers with easy integration into a wide range of applications.
datasheet Contact us
Features
- Regulated single outputs 3.3 to 48VDC
- Wide input range 85 to 305VAC
- PCB mount SIL package
- Encapsulated & open frame versions
- ITE & household appliance approvals
- Class II operation
- No load input power <0.3W
- Low Cost
- -25°C to +70°C operating temperature
- 3 Year Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
VCE03US03 | 3 W | Single Phase | 3.3V | 0.91A |
|
|
|
|
|
VCE03US05 | 3 W | Single Phase | 5V | 0.6A |
|
|
|
|
|
VCE03US09 | 3 W | Single Phase | 9V | 0.333A |
|
|
|
|
|
VCE03US12 | 3 W | Single Phase | 12V | 0.25A |
|
|
|
|
|
VCE03US15 | 3 W | Single Phase | 15V | 0.2A |
|
|
|
|
|
VCE03US24 | 3 W | Single Phase | 24V | 0.125A |
|
|
|
|
|
VCE03US48 | 3 W | Single Phase | 48V | 0.063A |
|
|
|
Specifications
Dimensions
VCE03: 1.60 x 0.75 x 0.75‚ (40.6 x 19.10 x 19.10 mm) VCE03-P: 1.50 x 0.65 x 0.65‚ (38.1 x 16.5 x 16.5 mm)
Input Voltage
85 to 305 VAC (Derate from 100% at 90 VAC to 90% at 85 VAC)
No Load Input Power
0.3 W
Harmonic Currents
EN61000-3-2, Class A
Efficiency
80% at 115 VAC, Model Dependent
Operating Temperature
-25 to +70 °C, derate linearly from 100% at +50 °C to 50% at +70 °C
Isolation
Input to Output: 3000 VAC
Worldwide Safety Approvals
IEC60950-1, IEC62368-1, IEC60335-1, IEC61558-1
European Safety Approvals
EN62368-1
US Safety Approvals
UL62368-1
Other Safety Approvals
CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
EMC
Conducted & Radiated, Class B, If output is connected to a ground additional external components will be required. Contact sales for details
